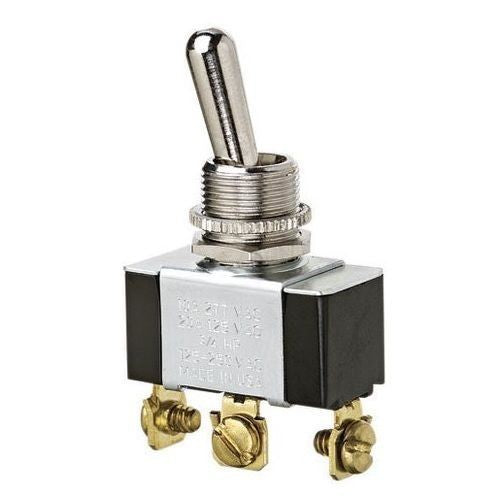

Ideal Industries 774027 Toggle Switch Standard On-Off-On 125/227 VAC

Product Description

The Ideal Industries 774027 is a standard toggle switch designed for power tool and motor control applications. It operates at voltages between 125 to 277 VAC, making it suitable for various devices. This switch features a rugged construction with solid brass and nickel-plated bushings, ensuring durability and longevity.

• SPDT ON-OFF-ON contact configuration
• Handles up to 20/10 amperes
• 1/2 inch diameter mounting hole

Product Highlights

This toggle switch is engineered for reliability in power tool applications. It offers an action type of SPDT and a toggle actuator, which allows easy switching between positions.

Product Information

Standard Information

• Brand: Ideal Industries
• Manufacturer Part Number: 774027

Technical Specifications

• Voltage Rating: 125/227 VAC
• Amperage Rating: 20/10 A
• Operating Cycles: 100000
• Dimensions: 1.13 in length x 0.57 in width x 0.61 in height
• Material: Solid Brass
• Contact Configuration: SPDT ON-OFF-ON
• Environmental Conditions: 32 to 185 degrees F operating temperature
• Standards/Approvals: RoHS Compliant, CSA Certified, UL Recognized
