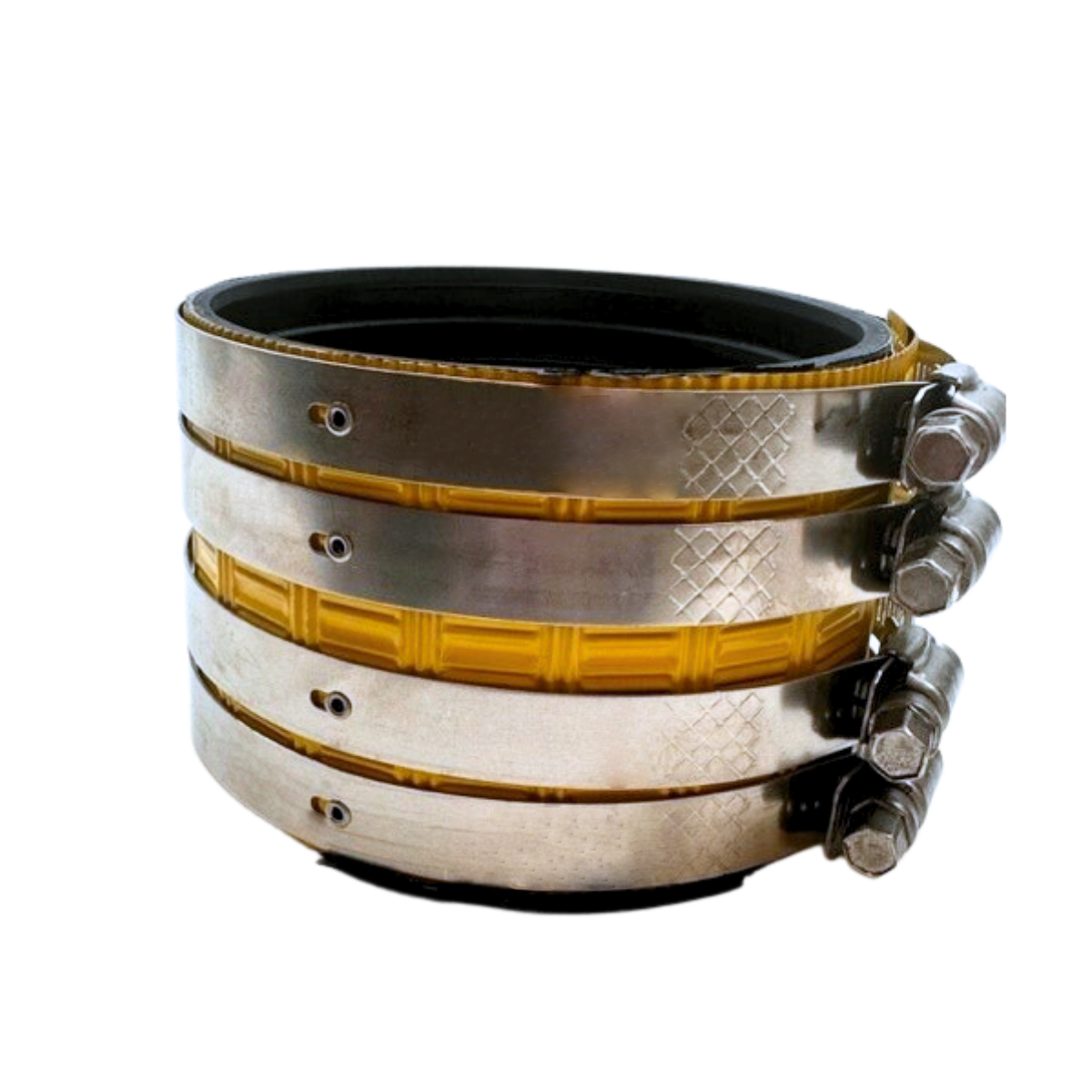

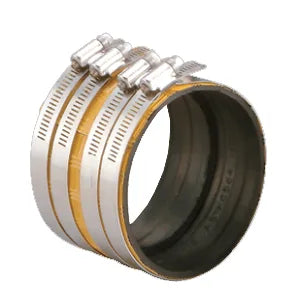

Ideal Industries 6220Y8G Heavy Duty Yellow No-Hub Coupling

Product Description

The Ideal Tridon Heavy Duty Yellow Shield No-Hub Coupling, MPN 6220Y8G, delivers super heavy-duty coupling performance at a competitive price. It uses a 5/16” hex head screw and complies with ASTM 564, ASTM C1540, and FM1680 (Class 1 and 2). Carries IAPMO and Canadian Std Association certifications.

• Provides all the performance of a Super Heavy Duty coupling but at a lower price point
• Uses a 5/16” hex head screw
• Made in USA

Product Highlights

This heavy-duty coupling features a distinctive yellow shield for easy identification and is made with stainless steel components for durability and corrosion resistance.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6220Y8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• Size (in.): 4
• Part No.: 6220Y8G
• No. of Clamps Per Coupling: 4
• Materials: Steels used in couplings are stainless steels. Shields, bands and housings are AISI 304. Screws and eyelets are AISI 305. Gaskets are neoprene rubber.
• Specifications: Couplings conform to CISPI 310, Factory Mutual FM 1680. Couplings comply with ASTM C564, ASTM 1540, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564.
