Ideal Industries 6218M8G Standard Duty No-Hub Coupling

Product Description

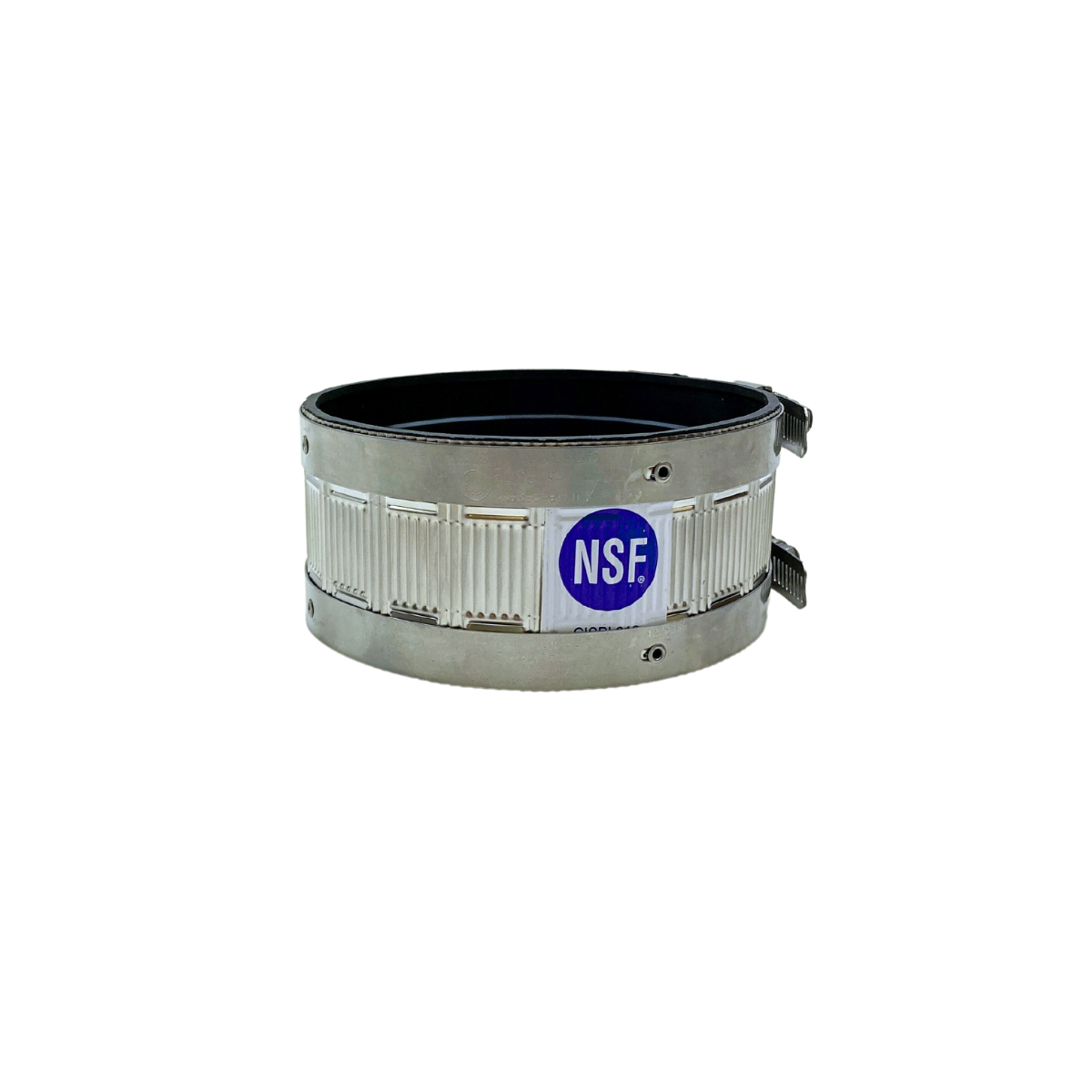

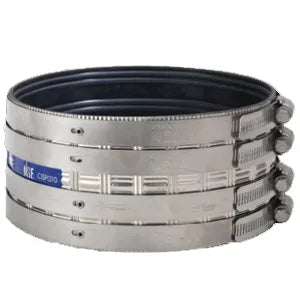

The IDEAL INDUSTRIES 6218M8G is a standard duty no-hub coupling, made in the USA. This coupling is a quality, low-cost alternative where structural reinforcement is not a primary concern. Fully compliant with ASTM 564, CISPI 310, and ASTM C1277, it also carries IAPMO, Canadian Std Association, and NSF certifications.

• Made in USA
• High quality
• Low cost alternative
• In full compliance with ASTM 564, CISPI 310 and ASTM C1277
• Carries IAPMO, Canadian Std Association and NSF certification

Product Highlights

The IDEAL INDUSTRIES Standard Duty No-Hub Coupling connects no-hub cast iron pipe and is certified by major plumbing code bodies in the U.S. and Canada.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6218M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
