Ideal Industries 61-757 600A AC/DC TRMS Clamp Meter

Product Description

The IDEAL 61-757 TightSight Clamp Meter is a CAT IV 600 and CAT III 1000 V rated device. This auto-ranging true root mean square (TRMS) digital clamp meter measures up to 600 Amps AC and DC current. It also measures up to 1000V AC and DC, low impedance AC voltage (Lo Z) to minimize false readings, frequency, resistance, continuity, capacitance, and diodes using included test leads. Temperature can be measured in degrees Fahrenheit or Celsius with a K-Type thermocouple that is included.

• Maximum current measurement of 600A AC/DC.
• Suitable for high voltage applications up to 1000V.

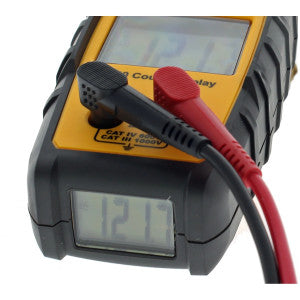

• Features a patented TightSight LCD display for easy reading.

Product Highlights

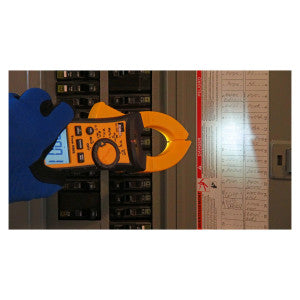

This clamp meter enhances safety and productivity by eliminating the need to bend or twist during measurements. The built-in flashlight and dual backlit displays allow for clear readings in low light conditions. The clamp head has a built-in probe tip holder for ease of use, and it features an audible alert for voltage detection above thirty volts.

Product Information

Standard Information

• Brand: Ideal Industries
• MPN: 61-757

Technical Specifications

• Electrical Ratings: 600 VAC, 600 A
• AC Current Accuracy: +/-2% + 9
• Voltage Accuracy: +/-1.5% + 5
• Frequency Range: 10 Hz to 9999 KHz
• Jaw Capacity: 1.4 in
• Resistance Measurement: 60 MΩ
• Temperature Rating: -40 to 1832 degrees F
• Battery Type: (3) AAA
• Dimensions: 9.9 in L x 2.8 in W x 1.8 in H
• Drop Protection: 6.6 ft
• Display Type: 6000 Count Backlit LCD
• Includes: Test leads, soft case, batteries, and thermocouple
