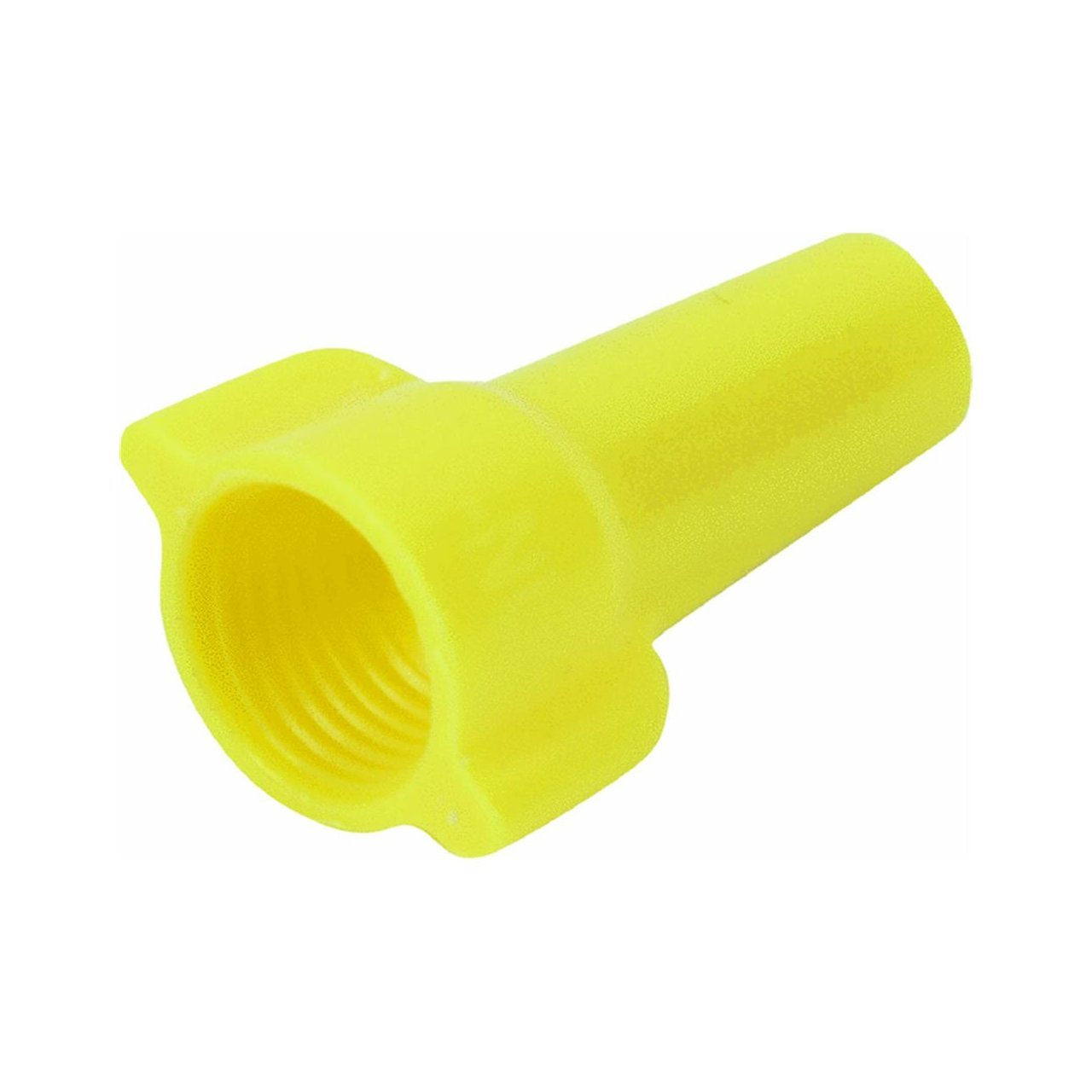

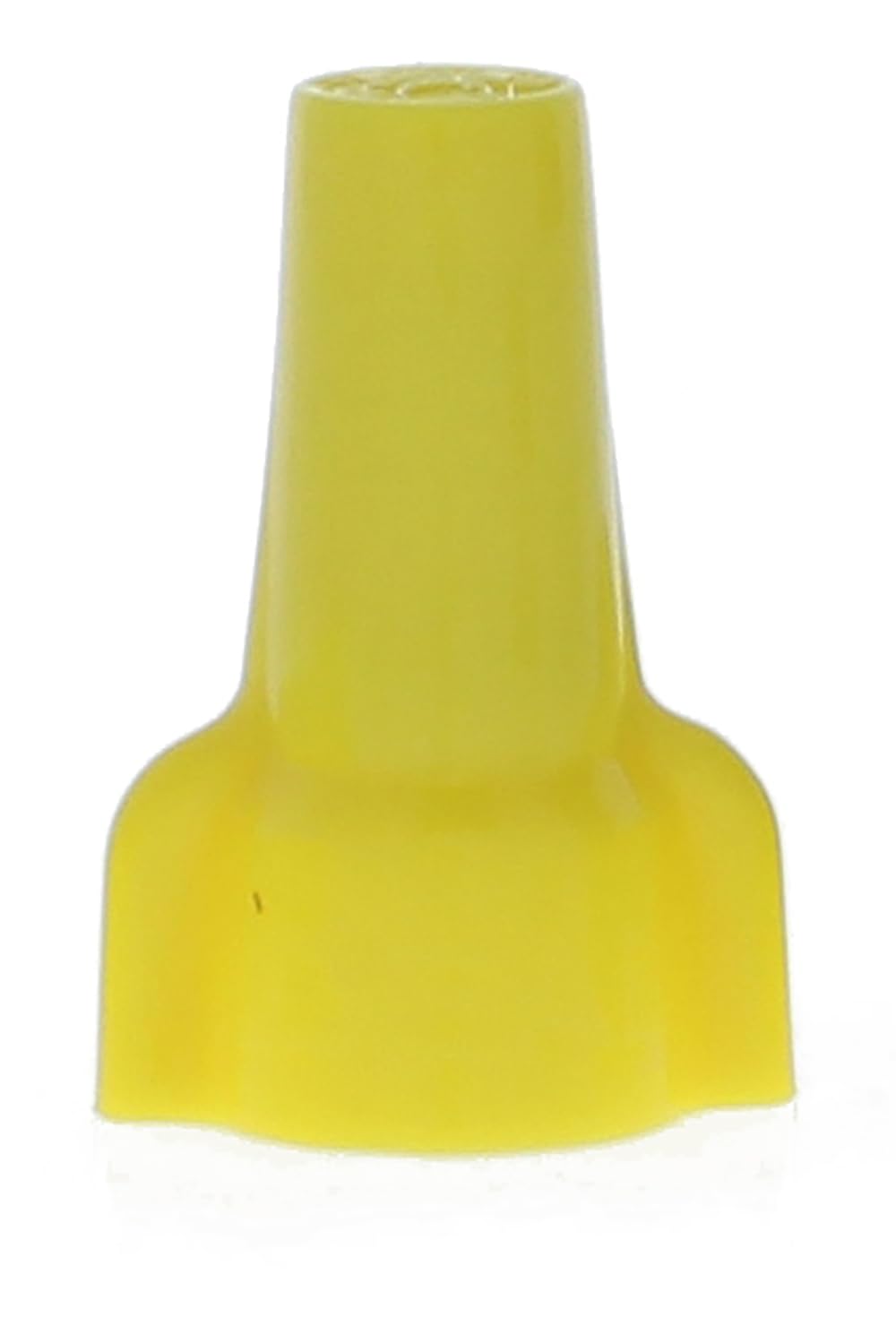

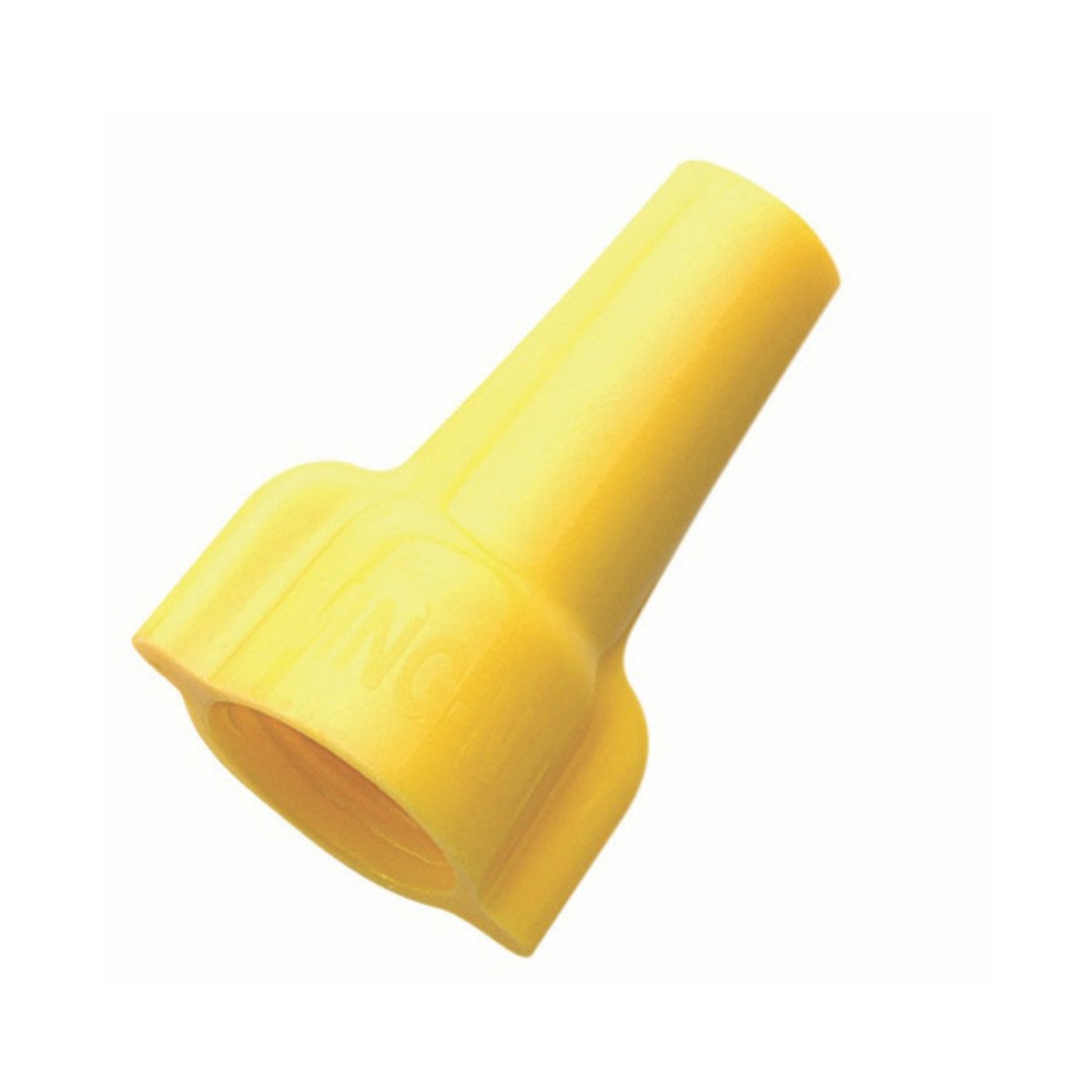

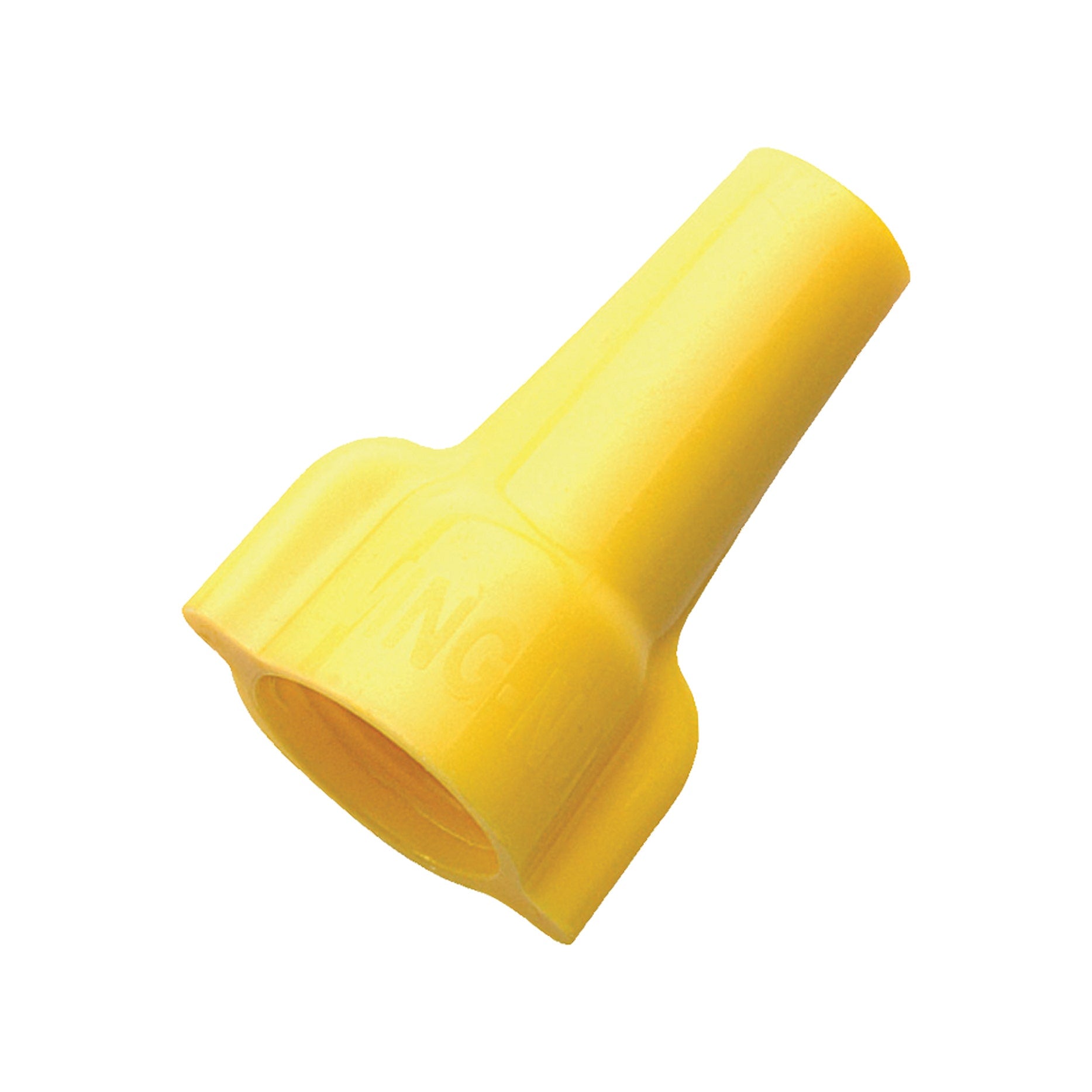

Ideal Industries 30-451 Wing-Nut Wire Connectors Twist-On 600 V 100 / Box

Product Description

The IDEAL INDUSTRIES 30-451 Wing-Nut Wire Connectors provide a secure grip for connecting a range of wires. The contoured wings provide extra torque, and the live-action spring handles small to large combinations. The copolymer shell expands for smooth tightening. Rated to 600V max, 1000V signs and fixtures.

• Copolymer shell expands for smooth, progressive tightening providing dependable connections
• Rated to 600-Volt max, 1000-Volt signs and fixtures
• Accepts #18 through #10 AWG wires

Product Highlights

Reusable twist-on wire connectors with a contoured wing design for a secure grip and a live-action spring.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-451
• Country of Origin: US

Technical Specifications

• Color: Yellow
• Gauge: 10.0
• Connector Type: Twist
• Contact Material: Copper
• Insulation Material: Polypropylene
• Model / MPN: 30-451
• Number of Items: 1.0
• Application: For insulating or joining two or more conductor and wire termination/connection
• Finish: Zinc Plated
• Material: Polypropylene
• Series: 451®
• Shell Style: Contoured Winged/Twist On
• Specifications: 3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size
• Standards/Approvals: CSA C22.2 No. 188|Federal Specification W-S-610E|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
• Temperature Rating: 221 deg F
• Type: Flame-Retardant
• Voltage Rating: 600 VAC
• Cable/Wire Size [Max]: 18 AWG
• Length [Nom]: 1.03 in
• Conductor Size: 18-10 AWG
• Number of Conductors: 1 to 6
• Environmental Conditions: Tough
• Wire Size: 18 TO 10 AWG
• Wire Type: Solid, Stranded

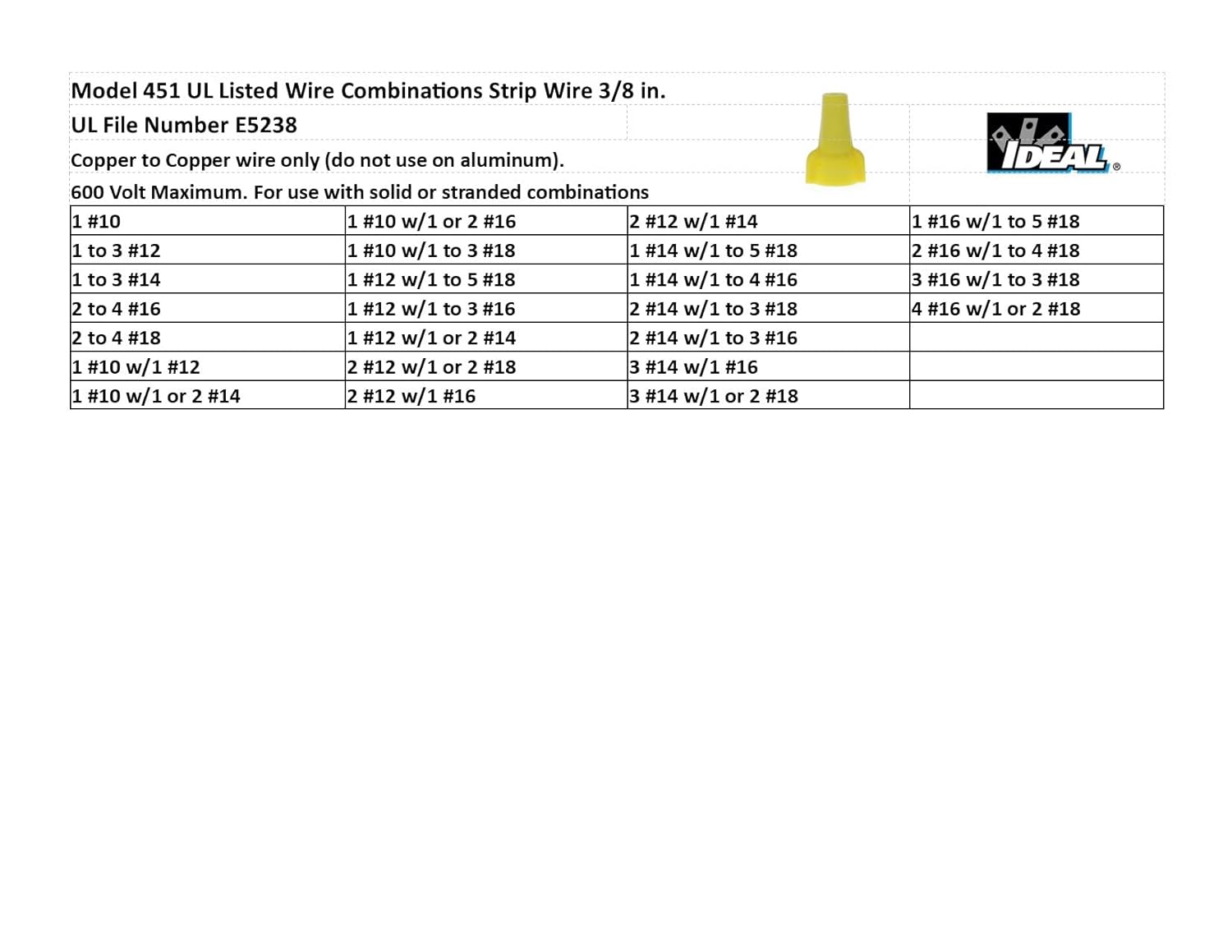

• Minimum Wire Combination Size: (2) #18
• Maximum Wire Combination Size: (3) #12
• Brand: IDEAL - Twist-On Connectors
• Cable Connector Type: Wire Nut
• Lug Range From: #10
• Lug Range To: #18
• Manufacturer: IDEAL INDUSTRIES
• Termination Method: Twist-on
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 10 AWG
• Minimum Wire Gauge: 18 AWG
• Flexible Skirt: No
• Mfrcode: IDI
• Catalog Number: 30-451
• Spring Type: LIVE ACTION, SQUARE WIRE
• ADDITIONAL INFORMATION: FEATURES FLAME-RETARDANT SHELL
