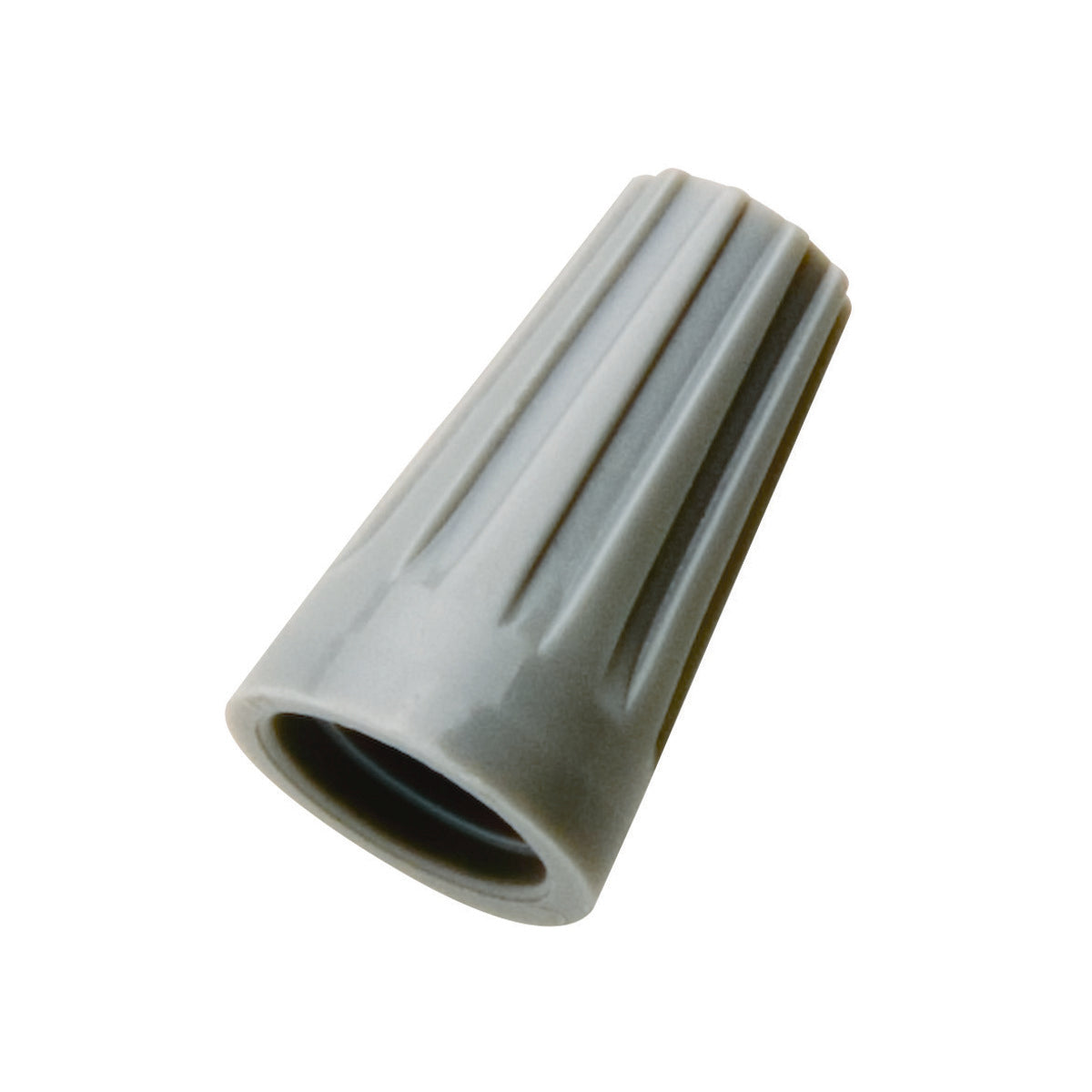

Ideal Industries 30-171 Size 71b, Gry Wireconn

Product Description

The IDEAL INDUSTRIES 30-171 is a size 71B wire connector. This twist-on Wire-Nut is constructed from flame-retardant polypropylene and accommodates 1 to 5 conductors, with a conductor range of 22 to 16 AWG. It is rated for up to 300 VAC and is suitable for tough environmental conditions.

• Wire Connector
• Wire-Nut
• Twist-On
• Flame-retardant polypropylene material

Product Highlights

The IDEAL INDUSTRIES 30-171 Wire-Nut provides a secure grip that will not relax over time. It is reusable for easy circuit changes and additions.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-171

Technical Specifications

• UNSPSC Code: 43223300
• Number Of Conductors: 1 to 5
• Conductor Range: 22 - 16 AWG
• Voltage Rating: 300 V
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Model Number: 71B
• Flammability Rating: UL 94V-2
• Application: For insulating or joining two or more conductor
• Color: Gray
• Manufacturer Part Number: 30-171
• Material: Polypropylene
• Series: 71B®
• Shell Style: Twist-On
• Standards/Approvals: CSA C22.2 No. 188|Federal Specification W-S-610E|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
• Temperature Rating: 221 deg F
• Type: Flame-Retardant
