Ideal Industries 30-1034J Push-in Wire Connector 200-jar

Product Description

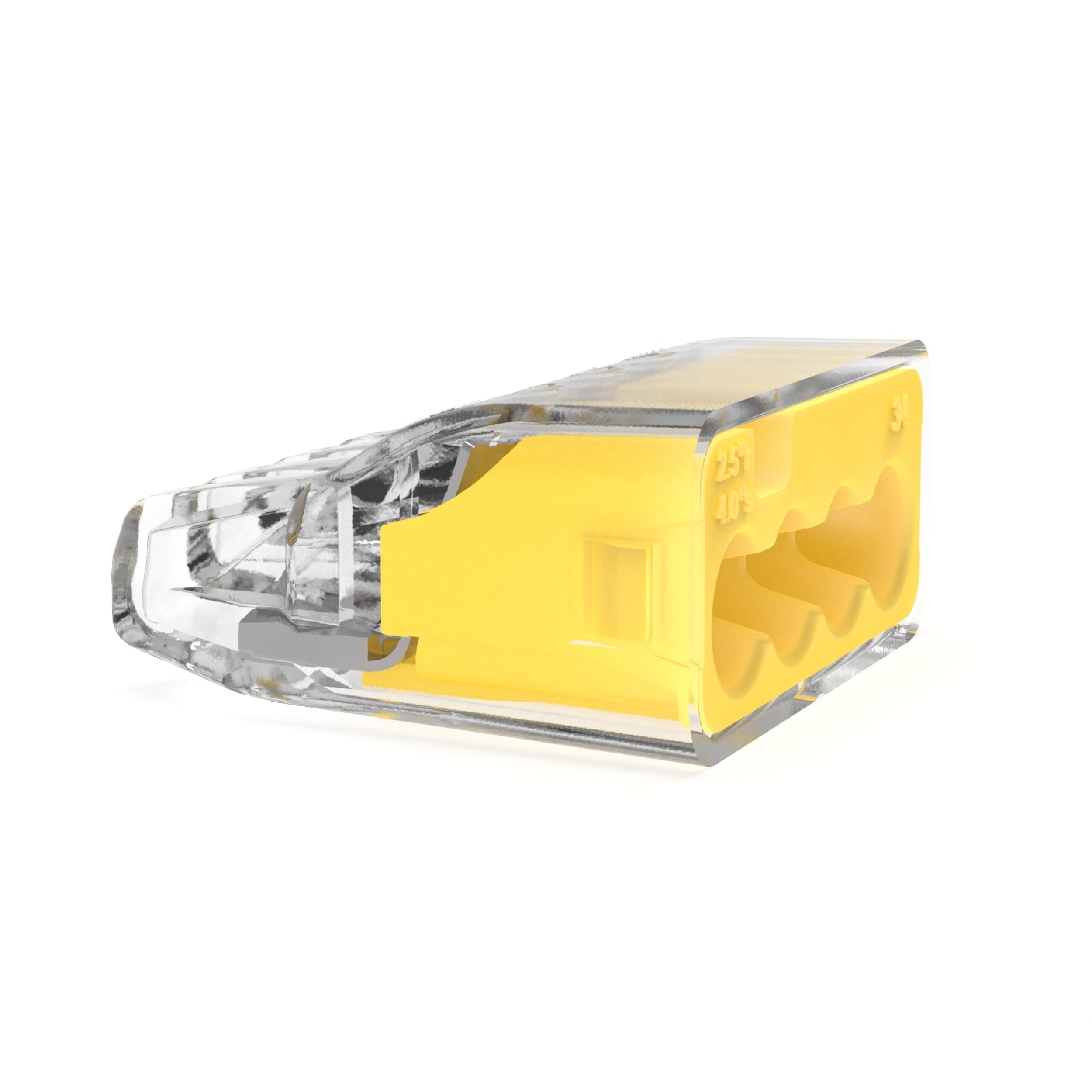

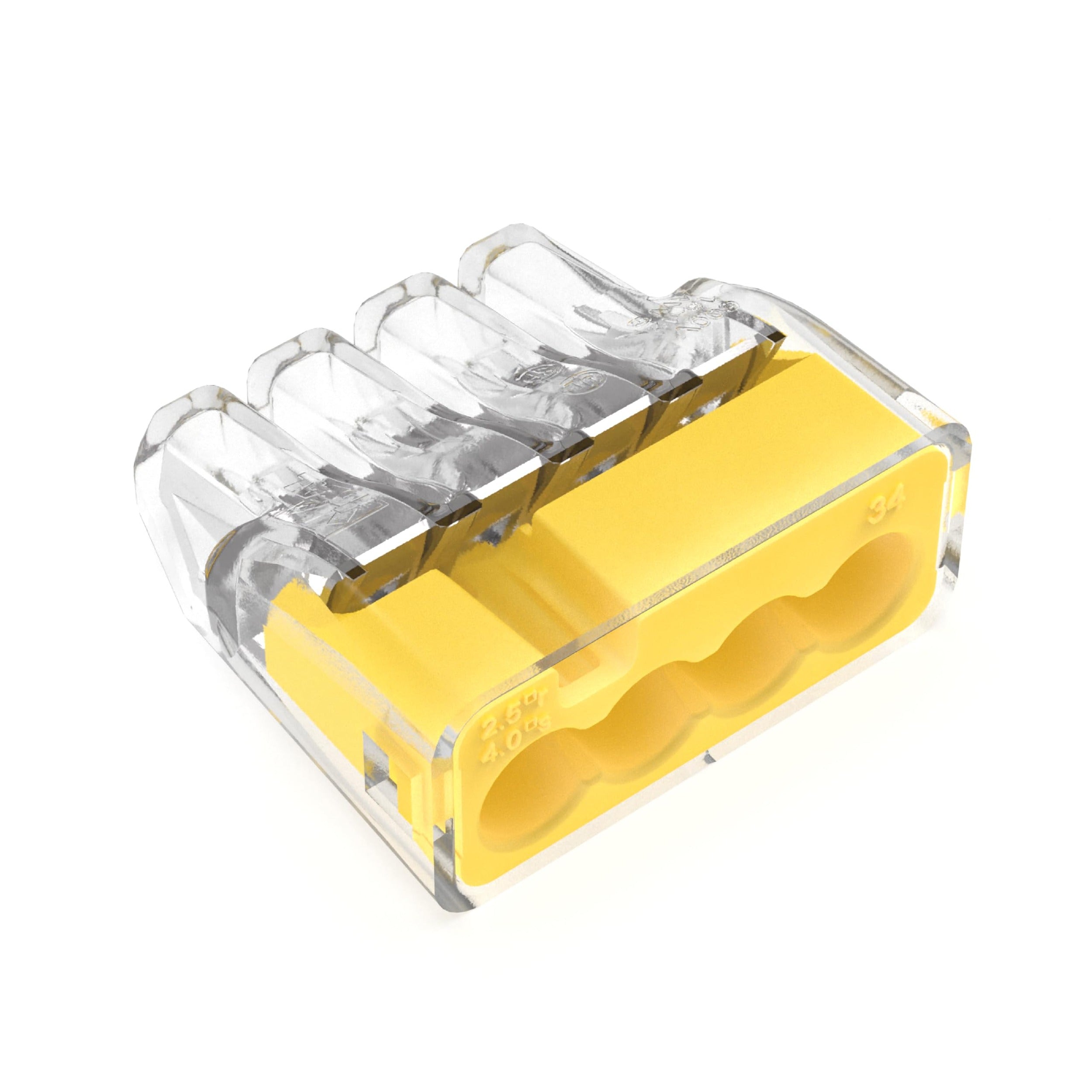

The IDEAL INDUSTRIES 30-1034J is a push-in wire connector supplied in a 200-count jar, designed for fast, tool-free branch circuit wiring connections. Rated to 600 volts and built with a UL 94V-2 flame-retardant polycarbonate shell rated to 221 degrees F (105 degrees C), this connector eliminates the twisting step of traditional wire nuts. A single-step insertion secures the conductor, and the clear shell provides visual confirmation that the wire is fully seated. Licensed electricians and journeymen installers working in residential and light commercial applications will find this connector well-suited to high-volume wiring tasks where speed and hand fatigue are ongoing concerns.

The 30-1034J is listed for use with 12-20 AWG solid wires, 12-16 AWG stranded wires, and 12 AWG copper-clad aluminum wires. It is approved for bonding and grounding applications, making it adaptable across a range of branch circuit scenarios. Typical installation environments include lighting fixture connections, prefabricated wiring systems, outlet and switch boxes, and general branch circuit wiring where compact connector size and box-fill efficiency matter. The color-coded housing assists with quick port-size identification during high-count installations.

Key Features

• Single-step, no-twist push-in connection reduces installation time on high-volume wiring jobs
• Low insertion force and ergonomic grip design reduce hand and wrist fatigue

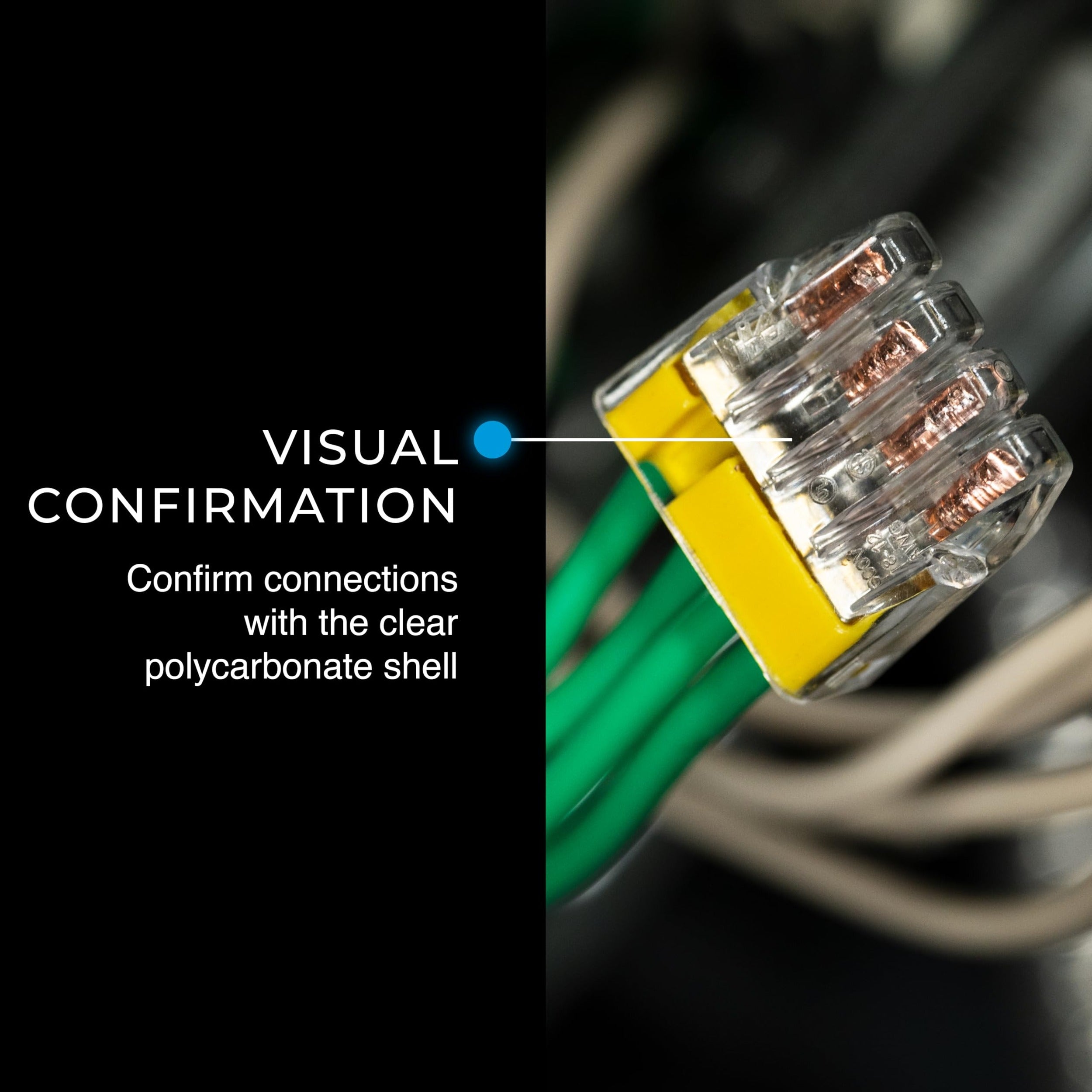

• Clear polycarbonate shell gives visual confirmation of full wire seating
• UL 94V-2 flame-retardant shell rated to 221 degrees F (105 degrees C)
• Rated to 600 volts; approved for bonding and grounding applications
• Color-coded housing enables fast port-size identification
• Accepts 12-20 AWG solid, 12-16 AWG stranded, and 12 AWG copper-clad aluminum conductors

Compatibility

Listed for use with 12-20 AWG solid wires, 12-16 AWG stranded wires, and 12 AWG copper-clad aluminum wires in lighting installations, prefabricated wiring systems, and branch circuit wiring applications.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit at the panel before making any connections. Strip conductors to the length indicated on the connector before inserting - do not over-strip. Confirm full seating visually through the clear shell before closing the box.
