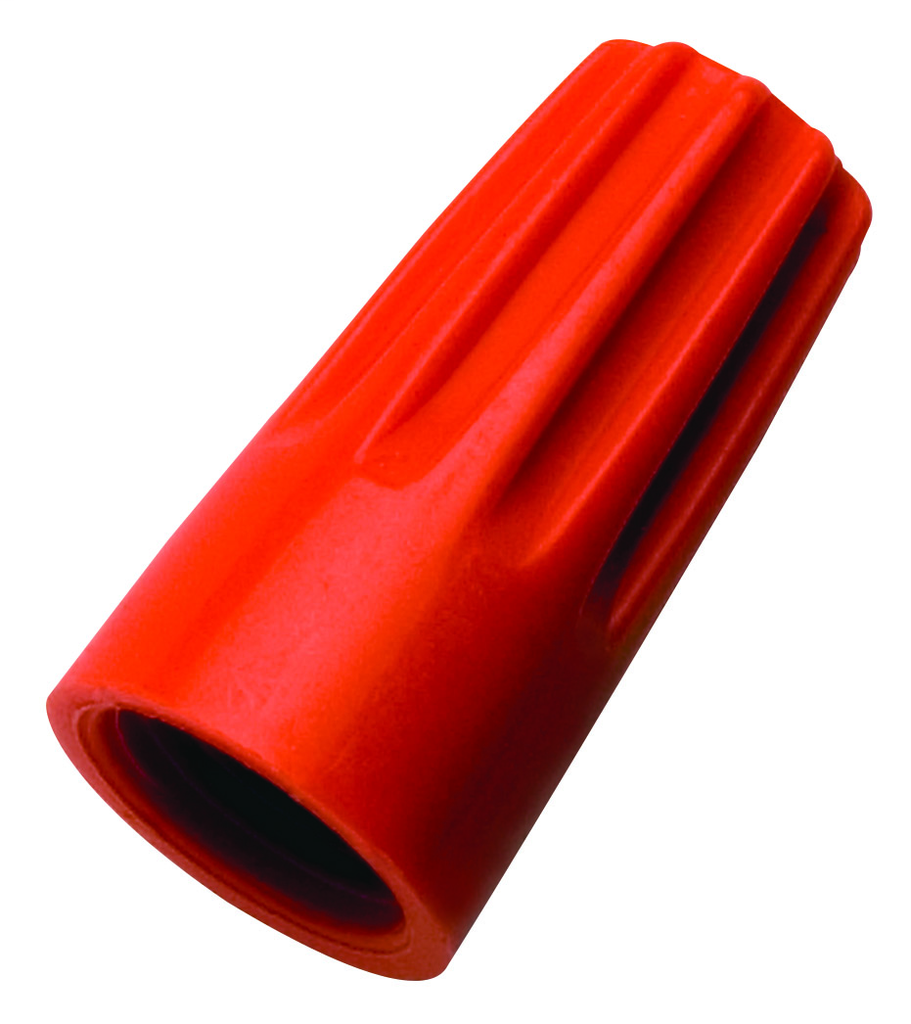

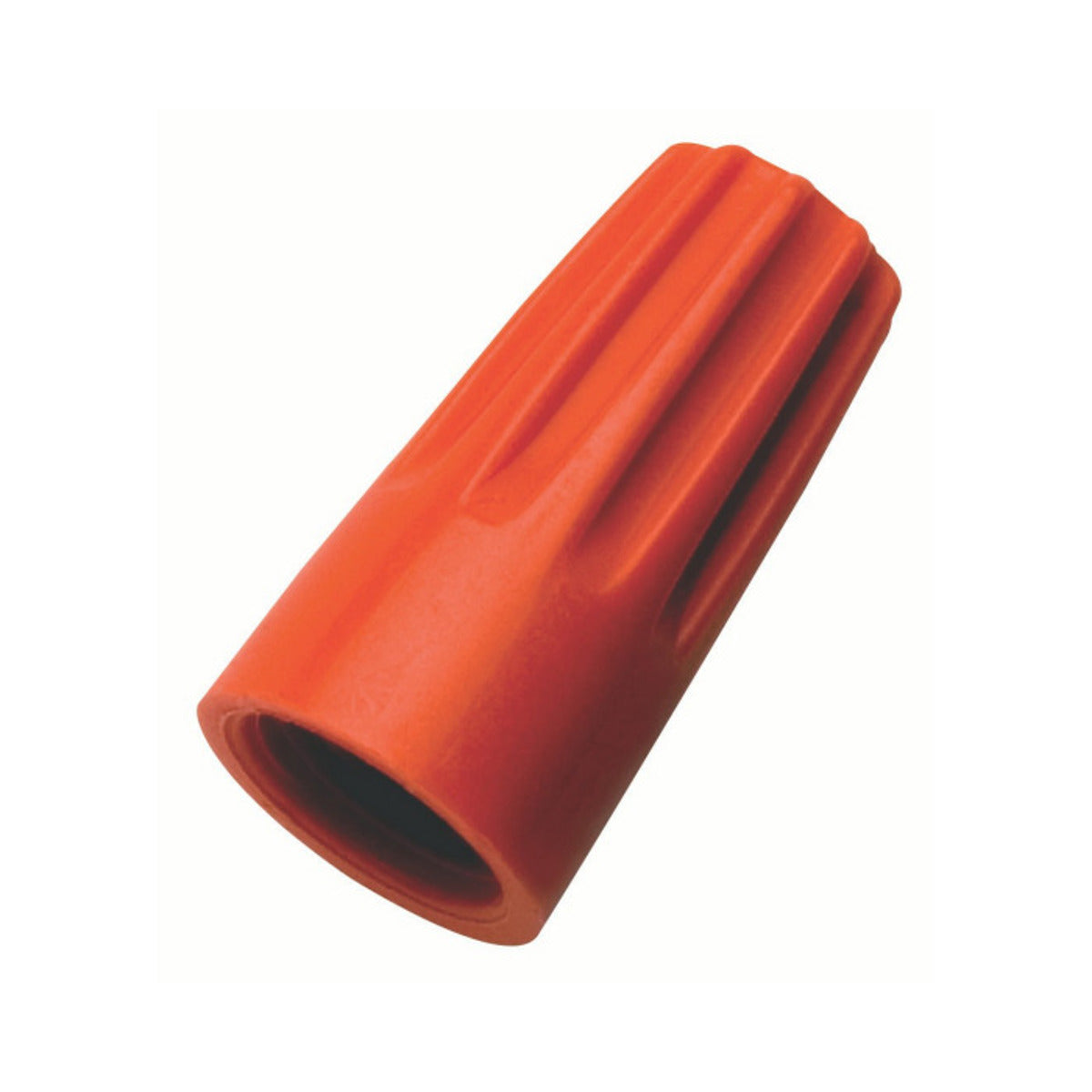

The Ideal Industries 30-073J WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won’t relax over time.
Standard twist-on wire connector to join and insulate 2 or more wires
Positive-grip design requires no pre-twisting for fast, easy installation
Fixed, square-wire spring for a grip that will last
Product Highlights
The Wire-Nut wire connectors are perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications.
Product Information
Standard Information
Brand: IDEAL INDUSTRIES
Manufacturer Part Number: 30-073J
Country of Origin: United States of America
Technical Specifications
Armored/Unarmored
FOR USE WITH UNARMORED CABLE
Material
Polypropylene Housing with Zinc Plating Steel Insert
Type
Twist-On
Brand
Ideal Industries
Finish
Zinc
Length
0.86 Inch
Voltage
600 Volt
Diameter
0.44 Inch
Sub Brand
Wire-Nut
Product UPC
78325021678
12-Digit UPC
783250216789
Applications
Insulating or Joining 2 or more conductors
Conductor Size
22-14 AWG
Temperature Rating
105 degrees C
Number of Conductors
1 to 5
Buy American Compliant
Y
Environmental Conditions
105 C
Voltage Rating
600 V
Model Number
73B
Flammability Rating
UL 94V-2
Country Of Origin
United States of America
Made In America
Yes
Standards
UL 486C Listed, CSA C22.2 No.188 Certified, RoHS Compliant
Strip Length
3/8 Inch (<=16 AWG), 5/16 Inch (Others)
Package Quantity
300/Jar
Item Name
Wire Connector
Energy Star Flag
No
RoHS Flag
Yes
GTIN
00783250216789
UPC
78325021678
Manufacturer Part Number
30-073J
Manufacturer Name
Ideal Industries
Series
73B
Shell Style
Twist-On
Specifications
3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size
