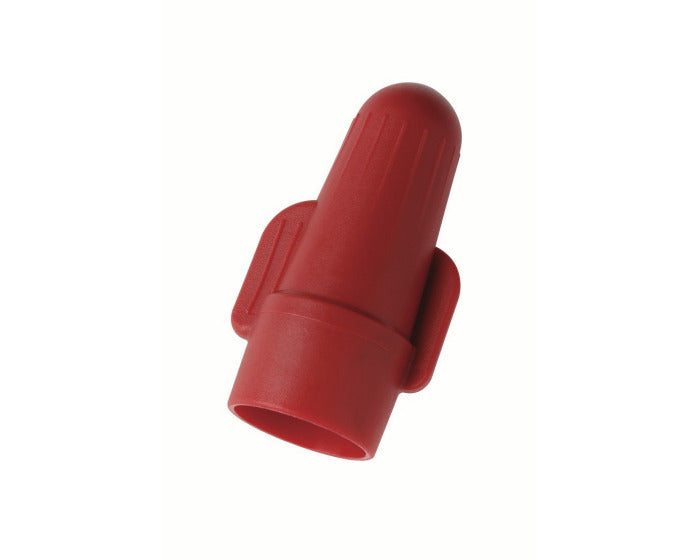

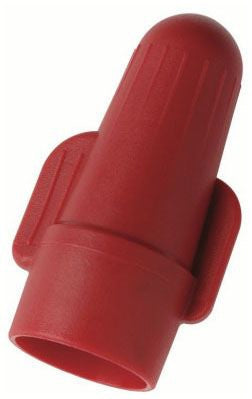

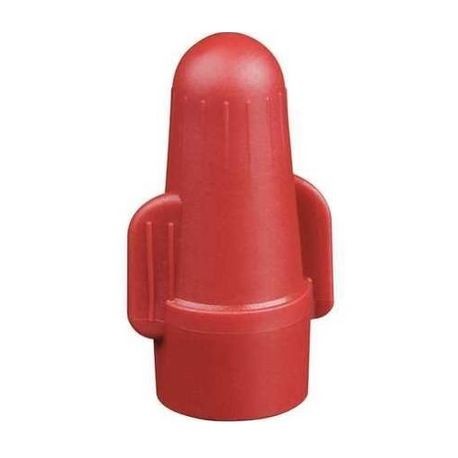

Ideal BT2-500JR Wire Connector, Swept Wing, 600 V, 18 to 8 AWG, B-Twist

Product Description

The Ideal BT2-500JR wire connector is designed for efficient and secure electrical connections. This product can accommodate wire sizes ranging from eighteen to eight AWG. Suitable for both solid and stranded wire, it is a robust choice for various electrical applications.

• Square-wire spring enables quick connections
• Rated for six hundred volts
• Designed for use with two conductors of number eighteen to two conductors of number eight

Product Highlights

Ideal BT2 offers high torque and comfort with its unique swept-wing design and ensures maximum dielectric protection against flash-over. This wire connector also complies with UL and CSA standards.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Brand: Ideal

Technical Specifications

• Catalog Number: BT2-500JR
• Conductor Range: 18 - 8 AWG, 2/18 AWG Min, 2/8 AWG Max
• Material: Flame-retardant Polypropylene
• Color: Red
• Voltage Rating: 600 V
• Application: Insulating or joining one or more conductors
• Country of Origin: United States
• Made in USA: Yes
• Number of Conductors: 1 to 6
• Environmental Conditions: Tough, rated at 105 °C (221 °F)
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
