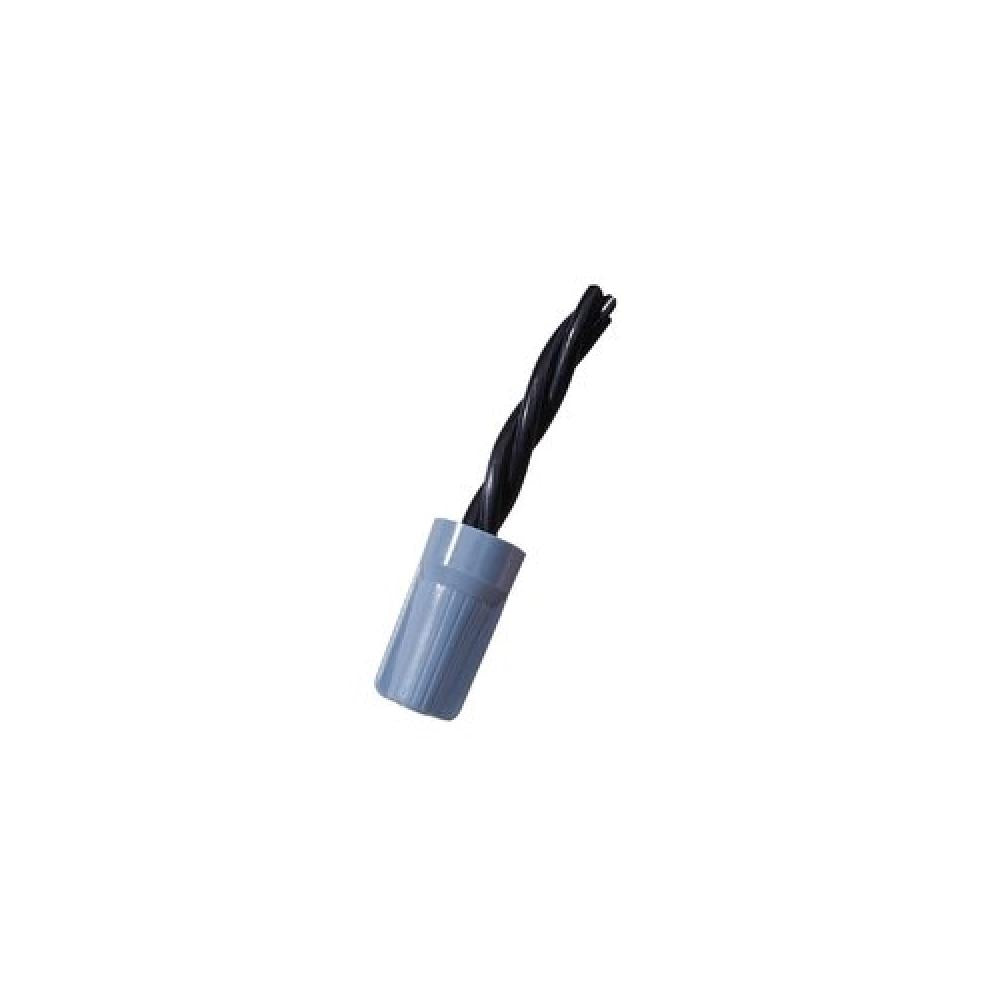

Ideal B4-1 B-CAP® B4 Wire Connectors (25-Pack)

Product Description

The IDEAL B4-1 B-CAP® wire connectors feature a compact, space-saving design, making them suitable for tight or shallow boxes and hard-to-reach areas. The low-profile fins ensure a secure grip and leverage while twisting. The flame-retardant shell withstands environmental extremes. It handles solid and stranded wire combinations from minimum 3 #20 AWG up to maximum 3 #12 AWG.

• Comfortable, low-profile fin provides a secure grip for extra leverage
• Unique, space-saving profile is perfect for retrofit work or shallow boxes
• Tough, flame-retardant shell withstands environmental extremes

Product Highlights

The B-CAP® wire connectors are ideal for spaces that are hard to reach. The slim, classic fins provide a secure grip with extra leverage.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: B4-1
• Country of Origin: USA

Technical Specifications

• Category Level 1: Wiring Connectors
• Category Level 2: Small Wire Connectors
• Category Level 3: Twist-On Connectors
• Application: For insulating or joining one or more conductors
• Category Name: Twist-On Connectors
• Color: Blue/Gray
• Country: USA
• Dimensions: 0.76 in Dia x 1.51 in H
• Length: 5.0
• Material: Polypropylene
• Series: B4
• Shell Style: Classic Fin/Twist On
• Specifications: 3/4 in Wire Strip, 2 to 6 Conductors, 12 to 2 AWG Minimum, 6 to 2 AWG Maximum Conductor Combination Size
• Spring Type: Live Action/Square Wire
• Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 188|IEC 998-2-4|UL94 V-2 Flammability Rating|UL 486C
• Temperature Rating: 221 deg F
• Type: Flame-Retardant
• Unspsc: 39121445
• Voltage Rating: 600 VAC
• Volume: 0.0
• Weight: 0.0
• Wire Size: 14 to 6 AWG
• Wire Type: Solid/Stranded
• Manufacturer: IDEAL
• Manufacturer Part No: B4-1
• Newark Part No.: 70AK6289
• Product Range: B-CAP B4 Series
• Termination: Twist On
• Wire Size AWG Min: 14AWG
• Wire Size AWG Max: 6AWG
• Conductor Area CSA: 16mm²
• Insulator Colour: Blue, Grey
• Insulator Material: None
• SVHC: No SVHC (08-Jul-2021)
