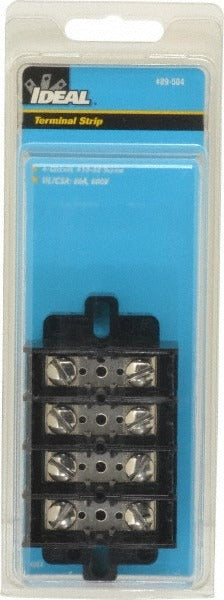

Ideal 89-504 Multipole Terminal Block 600V 60A 4 Pole

Product Description

The IDEAL 89-504 is a 4-pole multipole terminal block designed for organized, secure wire termination in control panels, junction boxes, and industrial enclosures. Rated at 600 volts and 60 amps, it handles demanding branch circuit and control wiring applications. The block is constructed from black polyester thermoplastic with nickel-plated brass contacts, offering solid conductivity and corrosion resistance. It accepts wire sizes from 22 to 6 AWG, covering both fine control wiring and heavier power conductors. At 1.25 inches high and 3.75 inches in length, it fits standard DIN-rail or panel-mount installations. Electricians and panel builders working on commercial and industrial control systems are the primary installers.

The IDEAL 89-504 is suited for residential, commercial, and light industrial wiring panels where multi-conductor terminations are required in a compact footprint. With 4 poles and 6 rows of connection points, it supports consolidated termination layouts in motor control centers, HVAC control panels, and electrical distribution enclosures. Its operating temperature range of -40 to 266 degrees F makes it viable in both indoor climate-controlled environments and unheated utility spaces subject to temperature extremes.

Key Features

• 4-pole, 6-row configuration for high-density wire termination
• Rated 600 volts and 60 amps for power and control circuit applications
• Accepts 22 to 6 AWG wire for versatile conductor compatibility
• Nickel-plated brass contacts for reliable conductivity and corrosion resistance
• Polyester thermoplastic body rated from -40 to 266 degrees F
• CSA Certified, UL Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style replacement or new-installation terminal block for 600-volt multipole termination applications accepting 22 to 6 AWG conductors in standard electrical enclosures and control panels.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out all circuits before making or removing terminations. Verify conductor size and insulation rating are appropriate for the circuit before terminating. Do not exceed the 60-amp or 600-volt ratings of this block.
