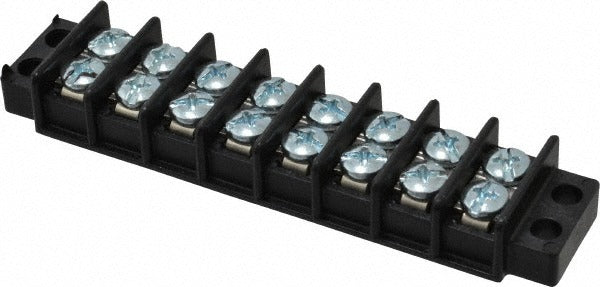

Ideal 89-308 Multipole Terminal Block 8 Pole 30 Amp

Product Description

The IDEAL 89-308 is an 8-pole multipole terminal block rated for 300 volts and 30 amps, built for reliable multi-circuit wire termination in electrical panels, control enclosures, and distribution systems. The block body is constructed from black polyester thermoplastic, and the contacts are zinc-plated steel. It accepts wire gauges from 22 AWG to 14 AWG and stands 0.41 inches tall with an overall length of 3.66 inches. Electricians and controls technicians use this terminal block to organize and land multiple conductors in a single, compact component. It carries UL, CSA, and RoHS certifications, making it suitable for commercial and industrial installations where listed components are required.

The IDEAL 89-308 is suited for use in residential, commercial, and light industrial electrical enclosures, control panels, and automation cabinets. Its 8-pole configuration handles up to eight separate circuit connections in a minimal footprint, making it practical in tight panel layouts. The operating temperature range of -40 to 266 degrees F covers most indoor and outdoor enclosure environments. Electricians installing motor controls, PLC panels, or multi-zone HVAC control boards will find this block appropriate for organizing low-voltage and line-voltage conductors within the same enclosure.

Key Features

• 8-pole configuration terminates up to eight conductors in a single block
• Rated 300 volts and 30 amps for versatile panel applications
• Accepts 22 AWG to 14 AWG wire for flexible conductor sizing
• Polyester thermoplastic body resists heat across a wide operating range
• Zinc-plated steel contacts provide corrosion resistance at termination points
• UL Listed, CSA Certified, and RoHS Compliant for code-required installations

Compatibility

Designed as an OEM-style replacement or new-installation terminal block for use in standard electrical control enclosures and panel assemblies requiring multi-pole wire termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel or enclosure before installing or replacing any terminal block. Verify wire gauge falls within the 22 AWG to 14 AWG range before termination. Do not exceed the 30-amp or 300-volt ratings for any circuit landed on this block.
