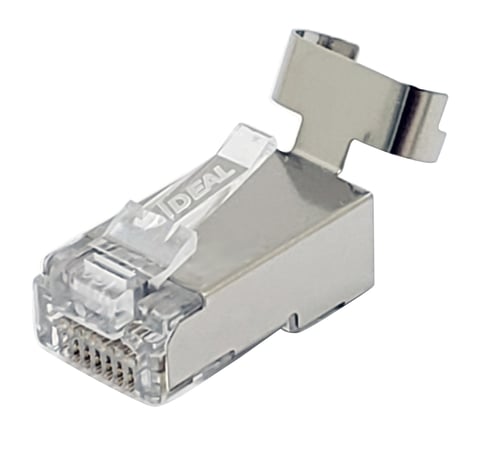

Ideal 85-368 Shielded Feed-Thru CAT6A/6/5e Modular Plugs (25/Card)

Product Description

The IDEAL 85-368 is a shielded modular plug designed for secure connections. Features a staggered pin and conductor design for ease of use and is compatible with CAT6A/6/5e shielded cables. This RJ-45 connector works with 22 to 24 AWG solid cable conductors with insulated diameters between 0.040 and 0.048 inches.

• Shielded modular plug for secure connections
• Staggered pin and conductor design for ease
• Compatible with CAT6A/6/5e shielded cables

Product Highlights

The IDEAL shielded modular plug ensures secure connections and easy termination for CAT6A/6/5e shielded cables.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 85-368
• Country of Origin: TWN

Technical Specifications

• Package Quantity: 25
• Brand: Ideal Industries
• Connector Type: Crimp
• Cable Type: Ethernet
• Compatible Devices: Computers, Servers, Routers, and Switches
• Special Feature: High Speed
• Ethernet Cable Category: Cat 6a
• Data Transfer Rate: 10 Gigabits Per Second
• Number of Pins: 8
• Gauge: 24.0
• Recommended Uses For Product: Ethernet connections in settings with larger diameter conductors
• Specification Met: UL
• Indoor Outdoor Usage: Indoor, Outdoor
• Unit Count: 25.0 Count
• Number of Items: 25
• Outer Material: Metal
• Model Name: IDI85368
• Model: 85-368
• Manufacturer: IDEAL INDUSTRIES
• Number Of Conductors: 8
• Number_of_Positions: 8
• Plug_Type: RJ45
• Shield: True
• Type: RJ45
• Manufacturer Part Number: 85-368
• UPC Code: 783250263370
• For insulated conductors: 0.040 in - 0.048 in diameter
• CAT6A/6/5e shielded cable compatible: for above diameter range
• Max jacket diameter: of .320"
• Staggered pin and conductor design: Crimp with FT-45 30-495 tool
• Pre-positioned jacket strain relief: allows easier insertion of cable into the connector
• Contact area: 50 micron gold plated
