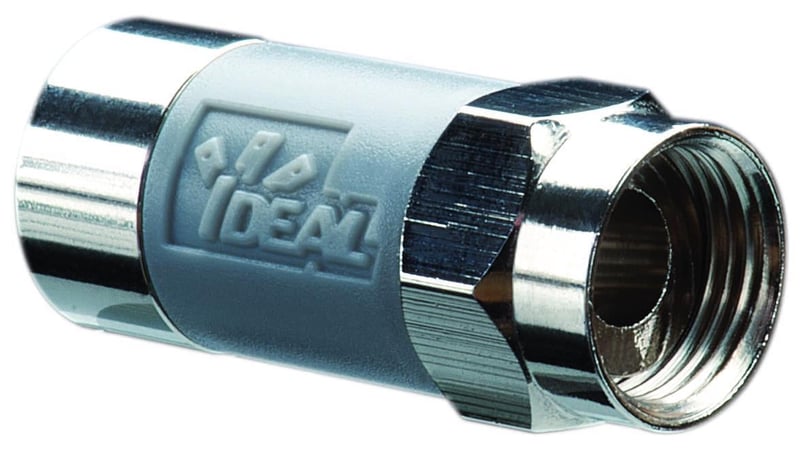

IDEAL 85-068 TLC RG-6 F Tool-less Compression Connector, 10/Pack

Product Description

IDEAL 85-068 TLC RG-6 F Tool-less Compression Connector is designed for RG-6 coax cables. This connector provides ease of use with a tool-less design that accelerates installation time. It is suitable for indoor use and ensures a secure connection without the need for compression tools.

• Tool-less installation saves time.
• Compatible with RG-6 coax cables.
• Designed for indoor use only.

Product Highlights

Its sliding, locking post design secures the cable within the connector, creating a reliable and permanent connection. It can handle frequencies from five megahertz to three gigahertz, making it ideal for CATV and satellite TV applications.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 85-068

Technical Specifications

• Type: Tool-Less Compression Connector - RG6
• Center Conductor Range: All
• Dielectric Diameter Range: 0.175 - 0.183 inches
• Outer Jacket Diameter Range: 0.254 - 0.278 inches
• Box Quantity: 50
• Application: 360-degree cable compression point, >40 lbs retention
• Special Features: No compression tool required
• UPC: 78325085068
