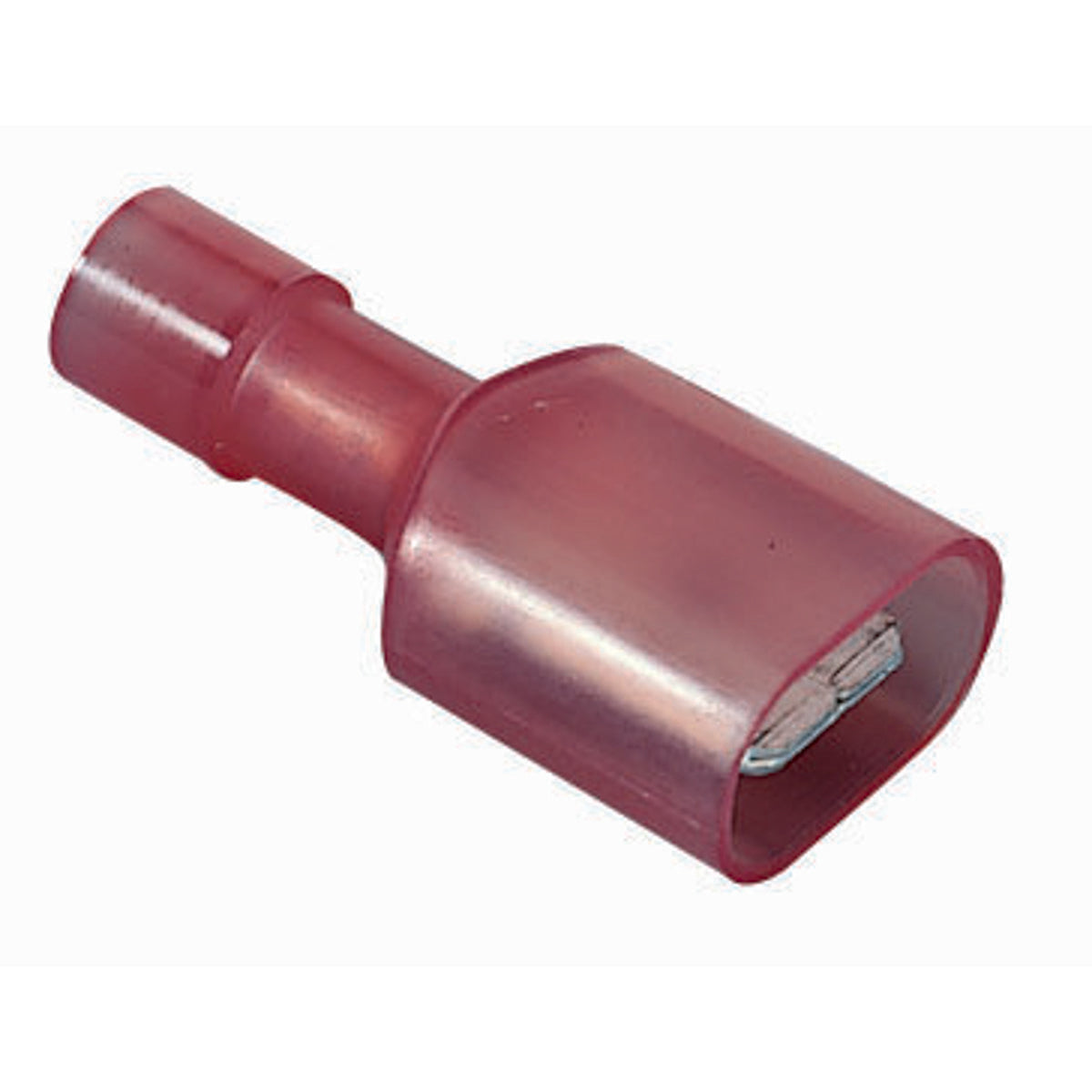

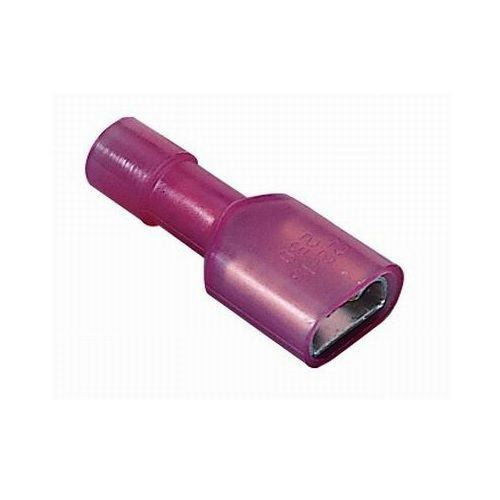

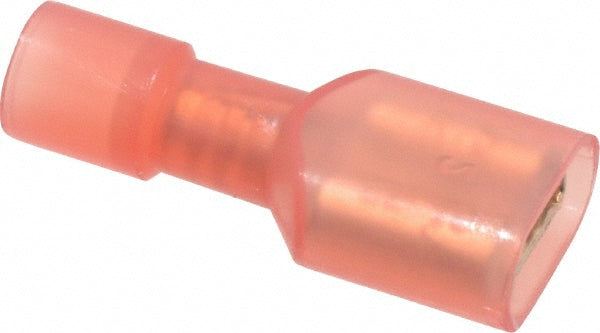

Ideal 83-9771 Disconnect Terminal Fully Insulated 22 - 18 AWG

Product Description

The IDEAL 83-9771 disconnect terminal is a fully insulated terminal designed for electrical systems. It accommodates wire sizes from 22 to 18 AWG and features tin-plated brass construction for corrosion resistance. The butted seam construction prevents splitting under maximum pressure, and internal barrel serrations grip wires tightly.

• Tin-Plated Brass Construction For Corrosion Resistance
• Brazed Or Butted Seams Prevent Splitting
• Funnel Entry Insulators

Product Highlights

This IDEAL disconnect terminal ensures secure and reliable connections in various electrical applications with its robust design and quality materials.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9771
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9771
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.150 IN Diameter
• Material: Brass, Nylon
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Fully Insulated
• Voltage Rating: 300 V
• Wire Size: 22 - 18 AWG
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Temperature Rating: 105 Deg C
• Barrel Type: Brazed/Butted Seam
• Wire Insulation Diameter: 0.15 Inch
• Terminal Type: Female Quick Disconnect
• Tab Size - Metric: 6.35mm x 0.81mm
• Tab Size - Imperial: 0.25" x 0.032"
• Wire Size AWG Min: 22AWG
• Wire Size AWG Max: 18AWG
• Insulator Material: Nylon
• Terminal Material: Brass
• SVHC: No SVHC (08-Jul-2021)
• Termination Method: Crimp
• Maximum Rated Voltage: 300V
• Maximum Temperature: 221�F (105�C)
• Wire Gauge: 22 to 18 AWG
• Stud Size: 1/4" (0.64 cm)
• Wire Type: Solid, Stranded
• Insulated: Yes
• Gender: Female
• Insulation Type: Fully
• Insulation Material: Vinyl
• Tab Width (Decimal Inch): 1/4
• Compatible Wire Size (AWG): 22-18
• Standards: UL Listed 774A; RoHS Compliant; cUL Listed
• UNSPSC Code: 39121409
