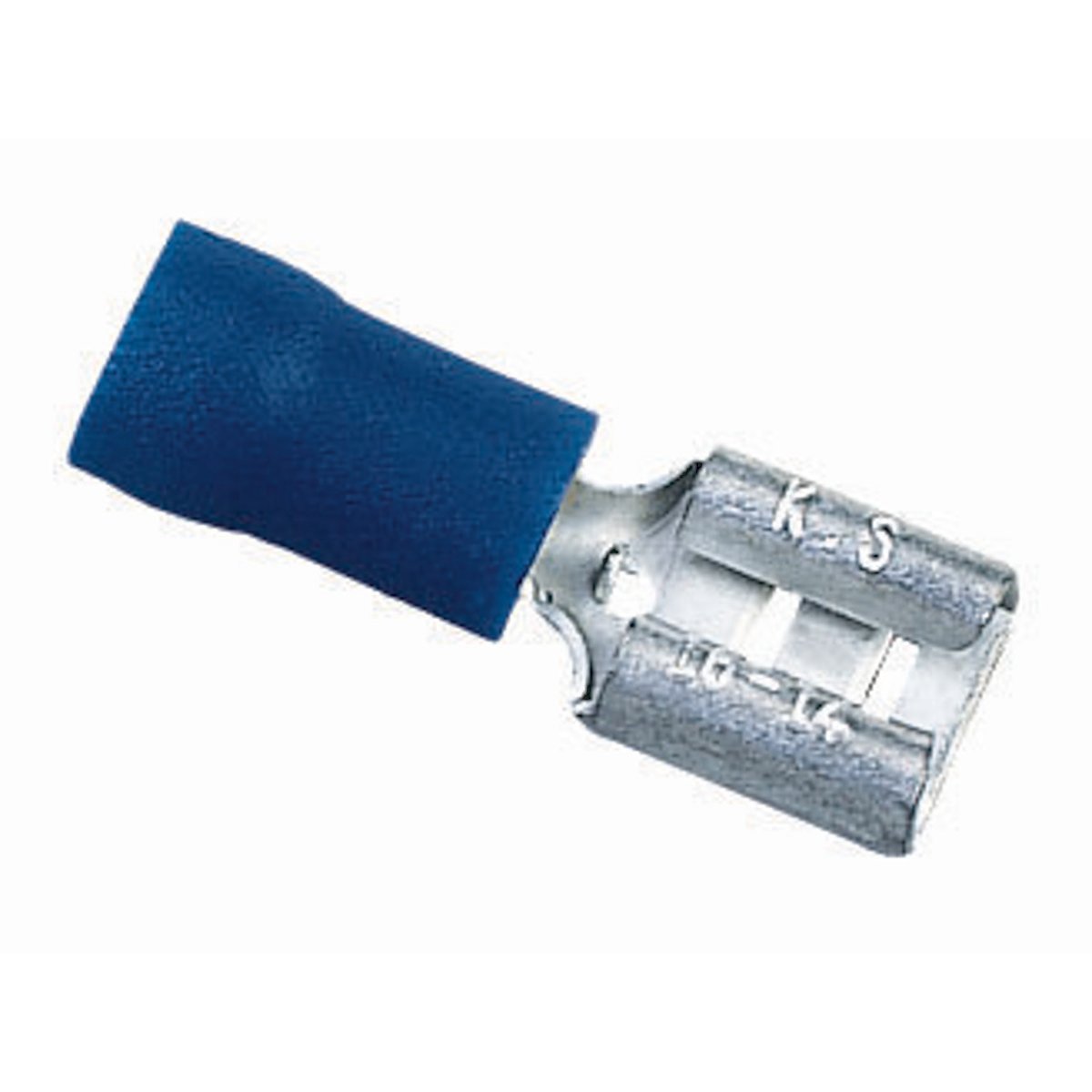

Ideal 83-9521 Disconnect Terminal Vinyl Insulated Wire Size: 16 - 14 AWG

Product Description

The Ideal Disconnect Terminal model 83-9521 is a vinyl insulated terminal made for wire sizes between sixteen and fourteen AWG. It has a voltage rating of three hundred volts and is crafted from brass with a diameter of zero point one eight five inches for insulation. This terminal features a female connection and is designed to accommodate tab sizes of zero point one one inches by zero point zero two inches.

• Made with tin-plated brass for corrosion resistance.
• Butted seam construction helps prevent splitting under high pressure.
• Internal barrel serrations ensure a tight grip on wires.

Product Highlights

This terminal is designed for reliable electrical connections in various applications, ensuring efficiency and safety. It is part of a complete line of terminals suitable for different wire ranges.

Product Information

Standard Information

• Catalog Number: 83-9521
• Manufacturer: Ideal Industries

Technical Specifications

• Material: Brass
• Volts Rating: 300
• Insulation Diameter: 0.185 inches
• Connection Type: Female
• Tab Size: 0.110 inches x 0.020 inches
• Temperature Rating: 75 degrees Celsius
• Wire Size: 16 - 14 AWG
• Country of Origin: Taiwan
• Standard: CUL Listed, RoHS Compliant
