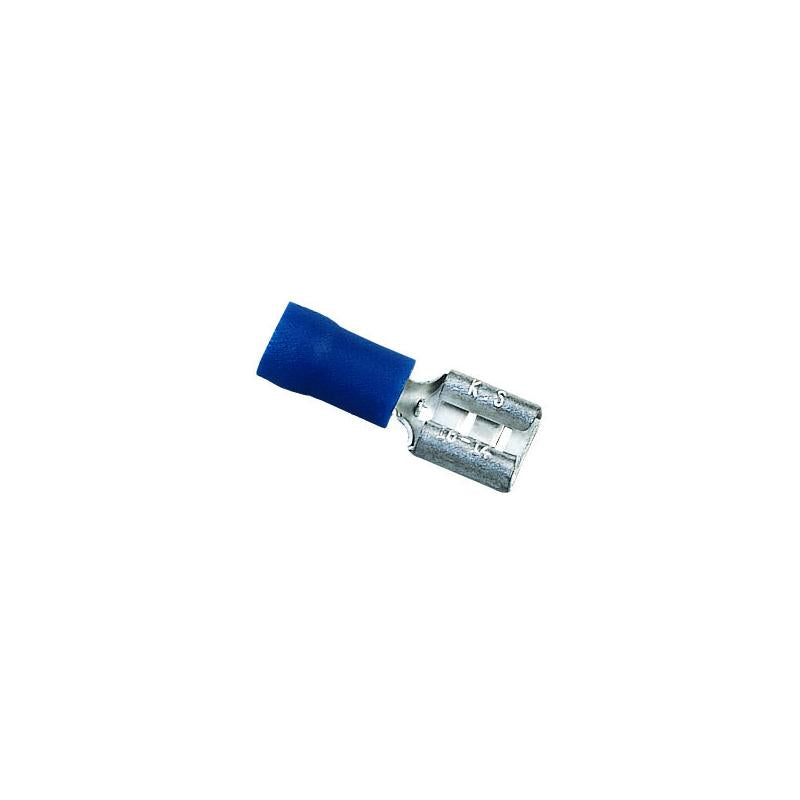

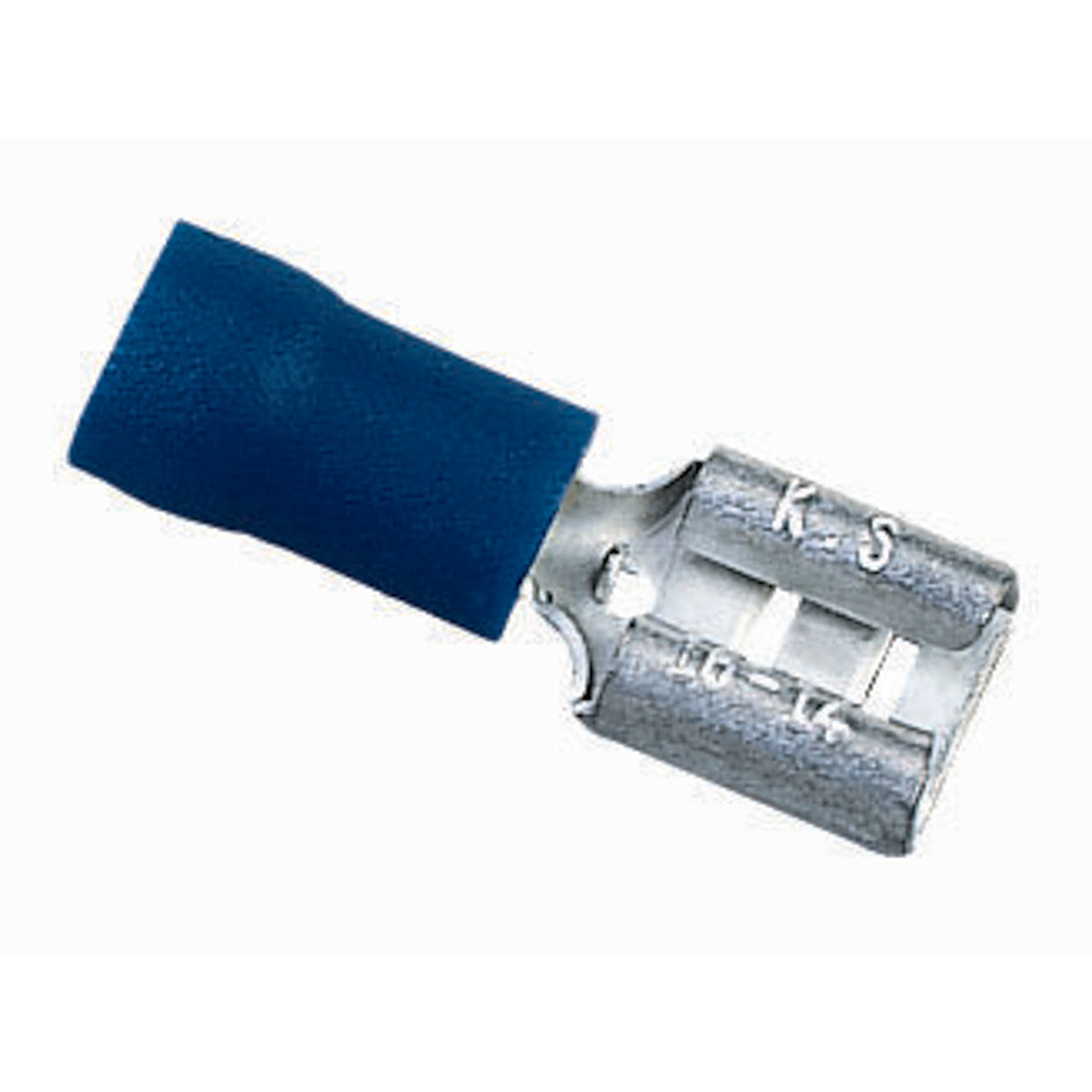

Ideal 83-9521 Disconnect Terminal Vinyl Insulated 16 - 14 AWG

Brand: IDEAL
SKU: 83-9521
Availability: In Stock

Ships same day if ordered by 12 pm
$35.67
$35.67
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The IDEAL 83-9521 disconnect terminal is a vinyl insulated terminal designed for electrical systems. It is suitable for wire sizes 16 - 14 AWG and has a voltage rating of 300 V. The butted seam-construction prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL disconnect terminal features shouldered barrel insulation for proper crimping and expanded insulation entry for a wide variety of insulation diameters.

Product Information

Standard Information

  • Brand: IDEAL
  • Manufacturer Part Number: 83-9521
  • Country of Origin: Taiwan, Province Of China
Technical Specifications
Catalog Number
83-9521
Manufacturer
Ideal Industries
Brand
Ideal
Country of Origin
Taiwan, Province Of China
Made in USA
No
Connection
Female
Insulation
0.185 IN Diameter
Material
Brass
Special Features
Tab Size: 0.110 IN X 020 IN; Temperature Rating: 75 DEG C
Standard
CUL Listed, RoHS
Item Type
Vinyl Insulated
Voltage Rating
300
Wire Size
16 - 14 AWG
Pkg Quantity
25.0
Termination Method
Crimp
Maximum Rated Voltage
600V
Maximum Temperature
167°F (75°C)
Stud Size
7/64"
Terminal Type
Tab
Wire Type
Solid, Stranded
Finish
Tin-Plated
Product Type
Female Disconnects
Conductor Size
16 to 14 AWG
Tab Size
0.11 in W x 0.02 in T
Barrel Type
Butted/Brazed
Number of Pieces
25
Packaging
Retail
UPC
783250490592
Length
0.748 Inch
Width
0.126 Inch
AWG
16-14 AWG
Voltage
600 V
