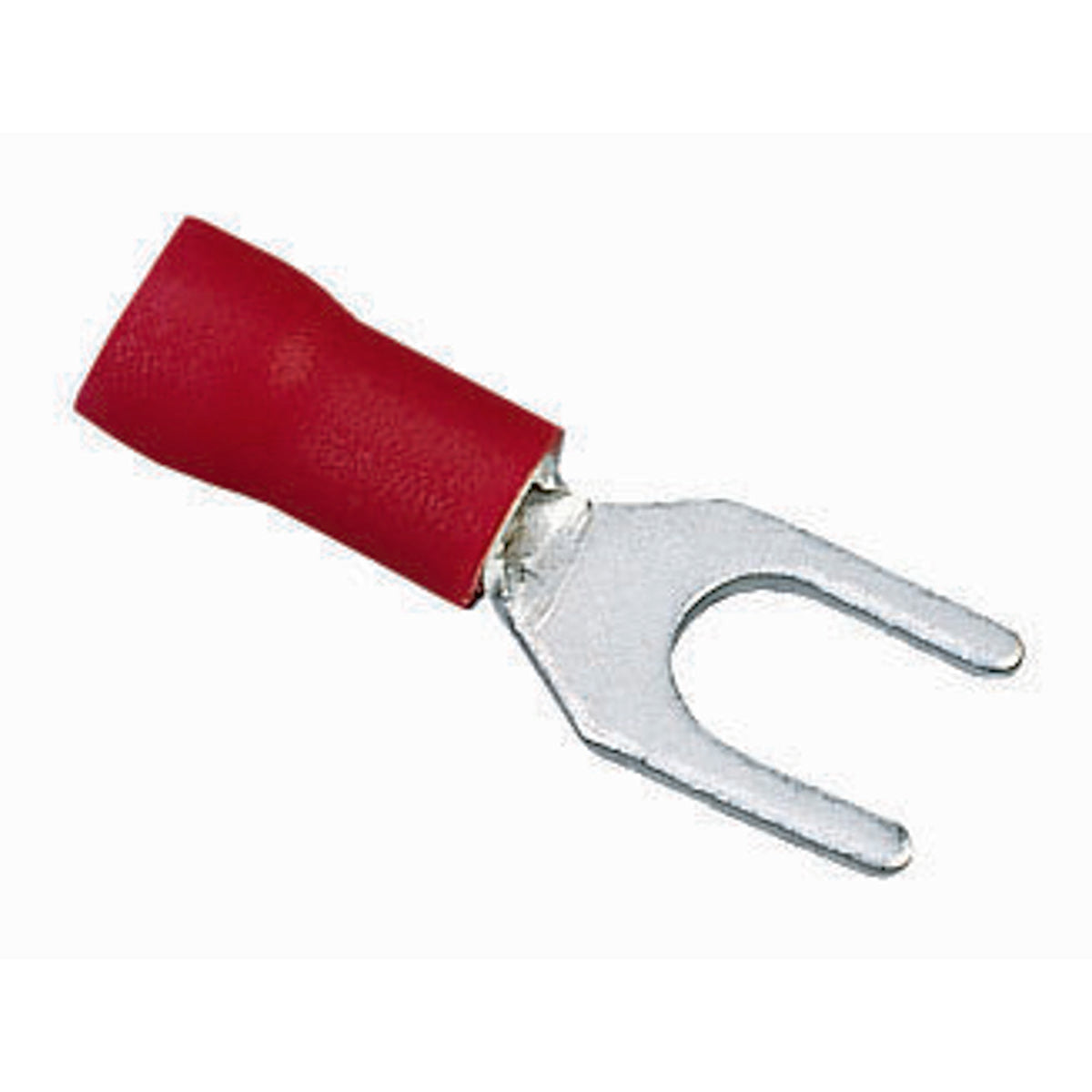

Ideal 83-7111 Spade Terminal Vinyl Spade 22 - 18 AWG 6 IN

Product Description

The IDEAL 83-7111 vinyl insulated spade terminal is designed for electrical systems. Its butted seam construction prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction provides corrosion resistance. For wires sized 22 to 18 AWG and a stud size of 6.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

The IDEAL 83-7111 spade terminal ensures secure wire connections with corrosion resistance and easy crimping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7111
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7111
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 22 - 18 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 6
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Package Quantity: 25 Pack
• Conductor Min: 22 AWG
• Conductor Max: 18 AWG
• Temperature Rating: 167°F (75°C)
• Voltage Rating: 600V
