Ideal 83-2361 Ring Terminal 12-10 Awg Crimp 25 Pack

Product Description

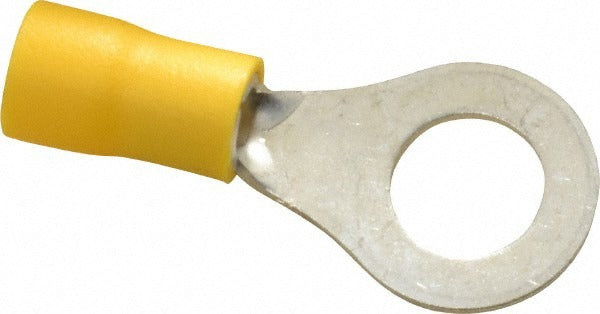

The IDEAL 83-2361 is a partially insulated circular ring terminal designed for crimp-style wire terminations on 12 to 10 AWG conductors. The terminal body measures 1.339 inches long and 0.512 inches wide, with a brass contact plated with titanium nitride (TiN) for corrosion resistance and reliable conductivity. The vinyl insulation sleeve is yellow, indicating compatibility with the 12 to 10 AWG wire range. This terminal accepts a 5/16-inch stud and is sold in a pack of 25. Electricians and panel technicians use these terminals when terminating stranded or solid copper conductors to equipment grounding points, control panels, and electrical enclosures.

The 83-2361 is suited for residential and light commercial electrical work, including panel wiring, ground connections, and control circuit terminations. The crimp connection style is compatible with standard ratcheting or non-ratcheting crimp tools sized for 10 to 12 AWG insulated terminals. Applications include HVAC control panel grounds, electrical distribution boards, and equipment bonding points where a secure ring-style lug is required. The partially insulated design allows visual inspection of the wire insertion depth before crimping.

Key Features

• Partially insulated vinyl sleeve in yellow — indicates 12 to 10 AWG wire range at a glance
• Brass contact with TiN plating for corrosion resistance and long-term conductivity
• Crimp connection type — compatible with standard AWG-indexed crimp tools
• 5/16-inch stud size fits common grounding screws and equipment terminals
• UL Listed and cUL Listed; RoHS Compliant
• Sold in a pack of 25 units per package

Compatibility

Designed for use with 12 to 10 AWG (4.00 to 6.00 sq mm) copper conductors and 5/16-inch (8.40 mm) mounting studs. Suitable as a standard crimp ring terminal in electrical, HVAC, and light commercial control wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits before terminating conductors. Use a calibrated crimp tool rated for insulated terminals in the 10 to 12 AWG range to ensure a gas-tight crimp. Do not solder over a crimped connection, as this can create a stress point and compromise the termination.
