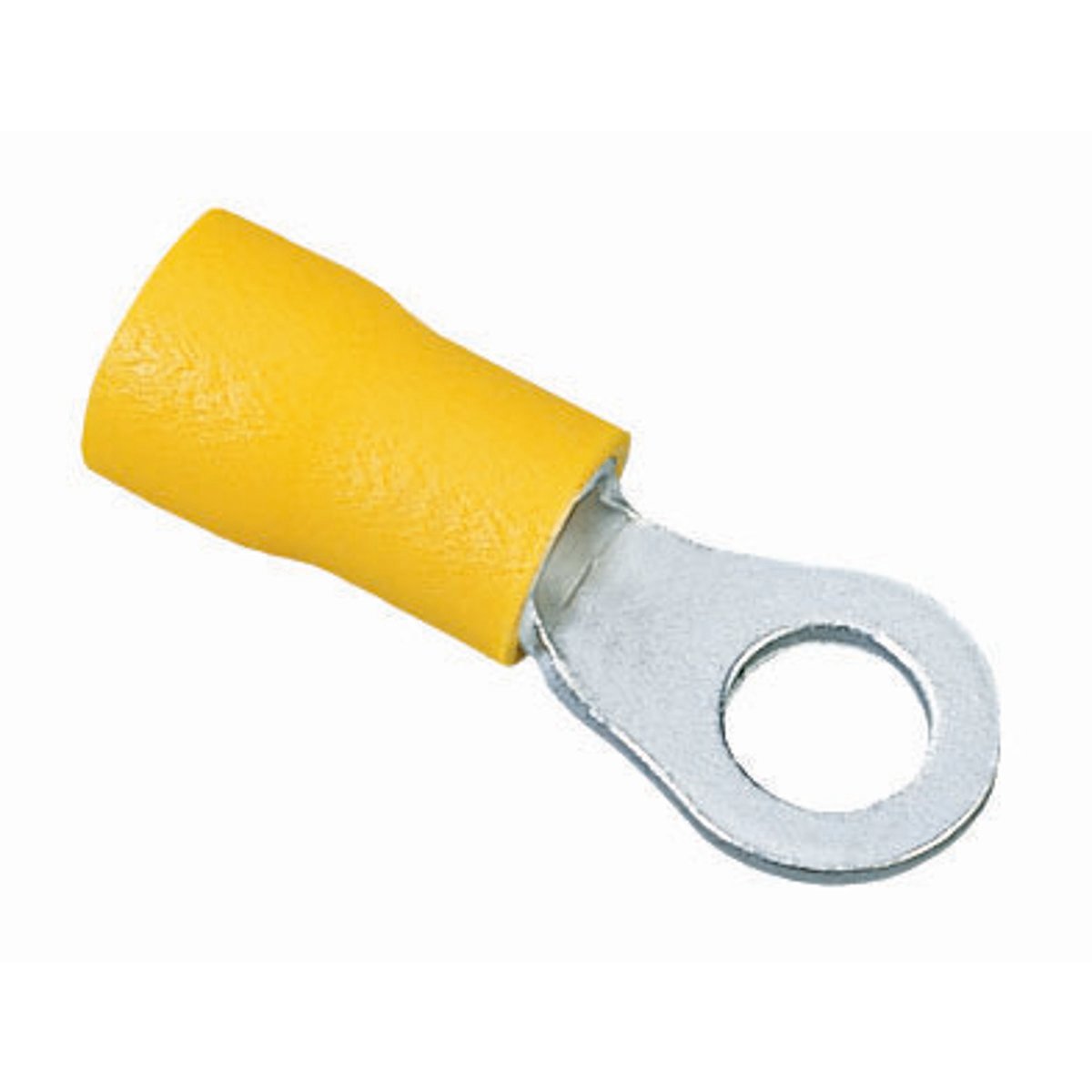

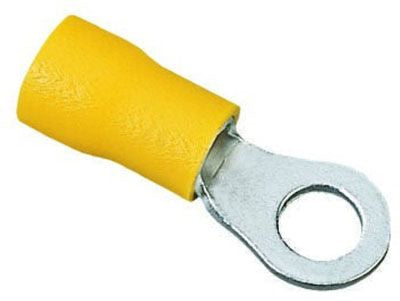

Ideal 83-2351 Ring Terminal Vinyl Ring 12 - 10 AWG 1/4 IN

Product Description

The IDEAL 83-2351 ring terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. It is designed for cable sizes 12 to 10 AWG and has a stud size of 1/4 inch. The terminal is constructed from tin-plated brass and is vinyl insulated.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL ring terminal ensures secure and corrosion-resistant connections for electrical systems, with color-coded insulation for easy identification.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2351
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2351
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• UPC: 783250489886
• GTIN: 00783250489886
• Item Type: Vinyl Ring
• Type: Beveled, Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Stud Size: 1/4 Inch
• Temperature Rating: 75 Deg C
• Approval: UL 774A, CUL
• Voltage Rating: 600 VAC
• Maximum Wire Insulation Diameter: 0.248 Inch
• Barrel Size: 0.512 in L
• Barrel Type: Beveled/Butted Seam
• Conductor Size: 12 to 10 AWG
• Overall Length: 1.167 in
• Tongue Size: 0.472 in W
