Product Description
The IDEAL 45-091 Stripmaster Standard Wire Stripper is the industry standard, incorporating a gripper that firmly holds the wire in a center-line position with the stripping hole. The lever action offers a mechanical advantage for easier stripping, reducing operator fatigue. One squeeze strips the wire clean, up to a full 7/8 in. It is designed for PVC Vinyl Insulations.
- Features a cushion grip handle for comfortable use.

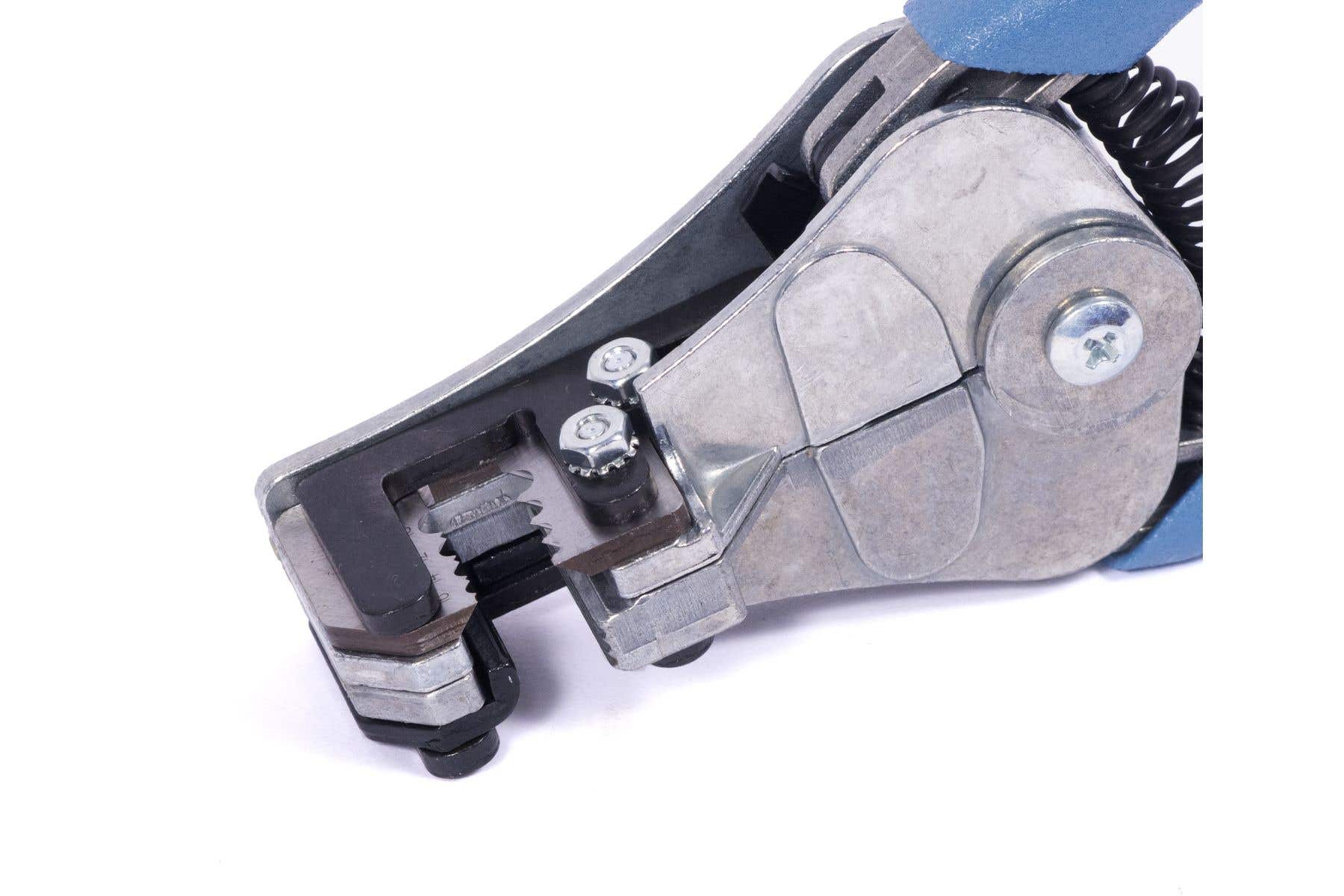

- Equipped with knife-type blades for clean and accurate stripping.
- Sturdy die-cast frame provides long-term durability.
Product Highlights
This wire stripper eliminates nicking, cutting, and fraying, making it ideal for production applications.
Product Information
Standard Information
-
Brand: IDEAL
-
Manufacturer Part Number: 45-091
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 45-091
-
Manufacturer: Ideal Industries
-
Brand: Ideal
-
Sub Brand: Stripmaster
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: For PVC Vinyl Insulations
-
Material: Die-Cast Frame
-
Special Features: Knife-type blades; Cleanly strips wire up to 7/8 IN (22 MM); One-third less hand pressure for each strip; Eliminates nicking, cutting and fraying of wire; Wire gripper holds wire centered in hole; Spring-action motion increases leverage and reduces operator fatigue; Sturdy die-cast frame provides long-term durability; Precision-ground, knife-type blades provide clean, accurate stripping
-
Item Type: Standard Wire Stripper
-
Size: 10 - 18
-
Series: 45
-
Product Type: Wire Stripper
-
Jaw Type: Straight
-
Material Category: Metal
-
Cutting Capacity: 18 to 10AWG
-
Primary Color: Blue
-
Applications: Stripping and Slug Removal
-
Width: 3.0 in.
-
Height: 1.0 in.
-
Length: 7.0 in.
-
Minimum Wire Size: 18 AWG
-
Maximum Wire Size: 10 AWG
-
Product Family: Stripmaster®
-
Wire Type: Single Conductor
-
Power Type: Manual
-
NSN: 5110 00-237-8645
-
Can Strip From [AWG]: 10
-
Can Strip To [AWG]: 18
-
Can Strip Wire AWG: 10, 12, 14, 16, 18
-
Cutting Hole Diameter [""]: .073", .085", .105", .144"
-
For Use With: IDEAL L-4420 Stripmaster Blade Set
-
Wire Stripper Type: Stripmaster
-
Stripping Capacity AWG: 18AWG to 10AWG
-
Stripping Capacity Metric: 22.225mm
