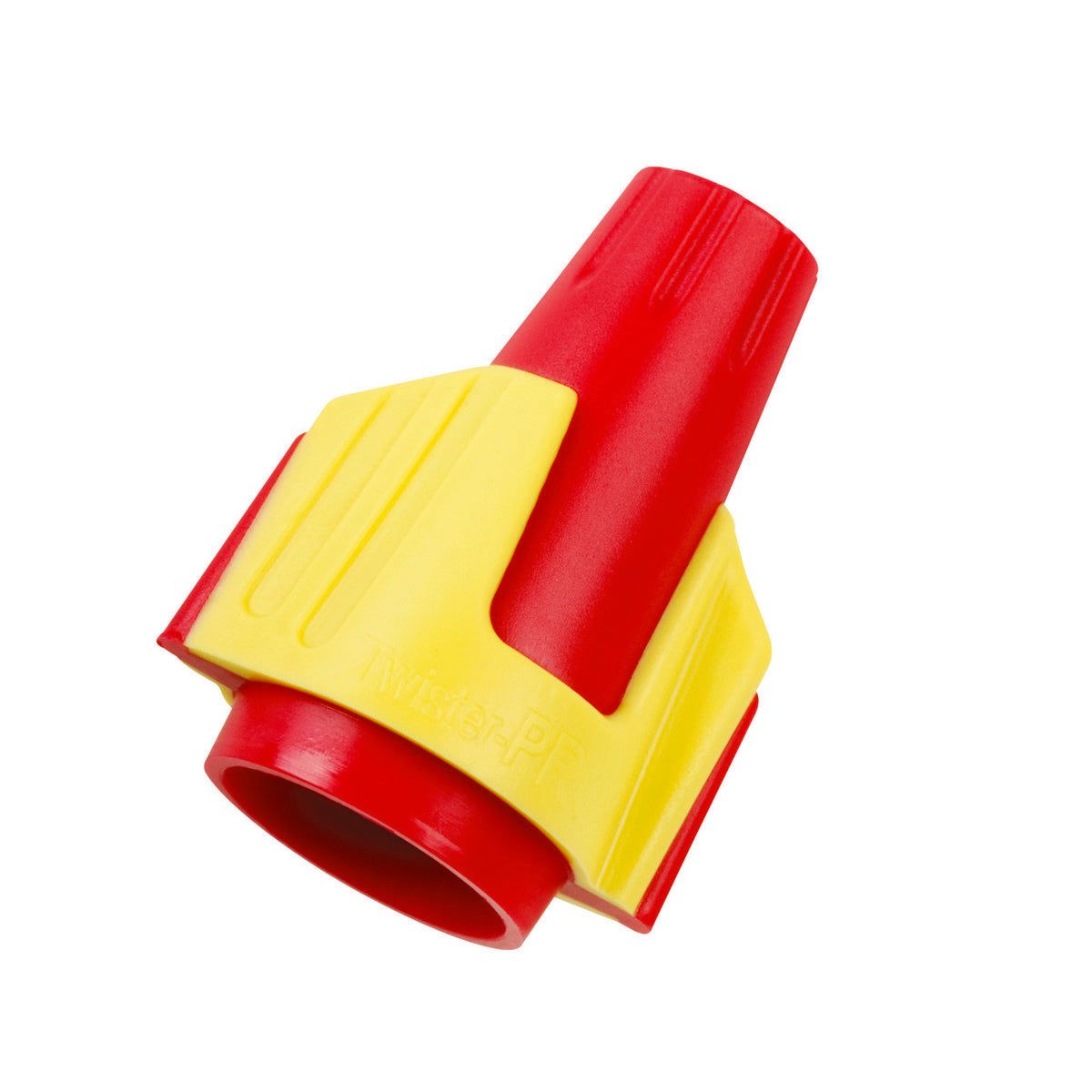

Ideal 30-944 Twister PRO wire connector 600V 22-8 AWG

Product Description

The IDEAL 30-944 Twister PRO Wire Connector is designed for insulating or joining 2 to 4 copper conductors ranging from 22 to 8 AWG, with a minimum of 2 #18 and a maximum of 4 #10 wires. This flame-retardant polypropylene connector features a 600V voltage rating and a tough UL 94V-2 shell rated at 105°C (221°F). Its expanding square-wire spring ensures secure connections, making it suitable for various wiring configurations.

• Comfortable swept wings designed to help reduce hand fatigue during use.
• Expanding square-wire spring provides a secure connection every time.
• Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F) for durability.

Product Highlights

Suregrip overmolding provides better grip for improved leverage and more torque, facilitating faster connections with less effort.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-944
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-944
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Twister PRO
• Made in USA: Yes
• Application: Insulating or Joining Conductors
• Conductor Range: 22-8 AWG (Min 2 #18, Max 4 #10)
• Material: Flame-retardant Polypropylene
• Number of Conductors: 2 to 4
• Standards: CSA C22.2 #188, UL 486C, RoHS, Federal Specification W-S-610E
• Operating Temperature: 105°C (221°F)
• Flame Rating: UL 94V-2
• Voltage Rating: 600V
• Max Voltage (Fixtures/Signs): 1000V
• Wire Type: Copper/Copper
• Model Number: 344
