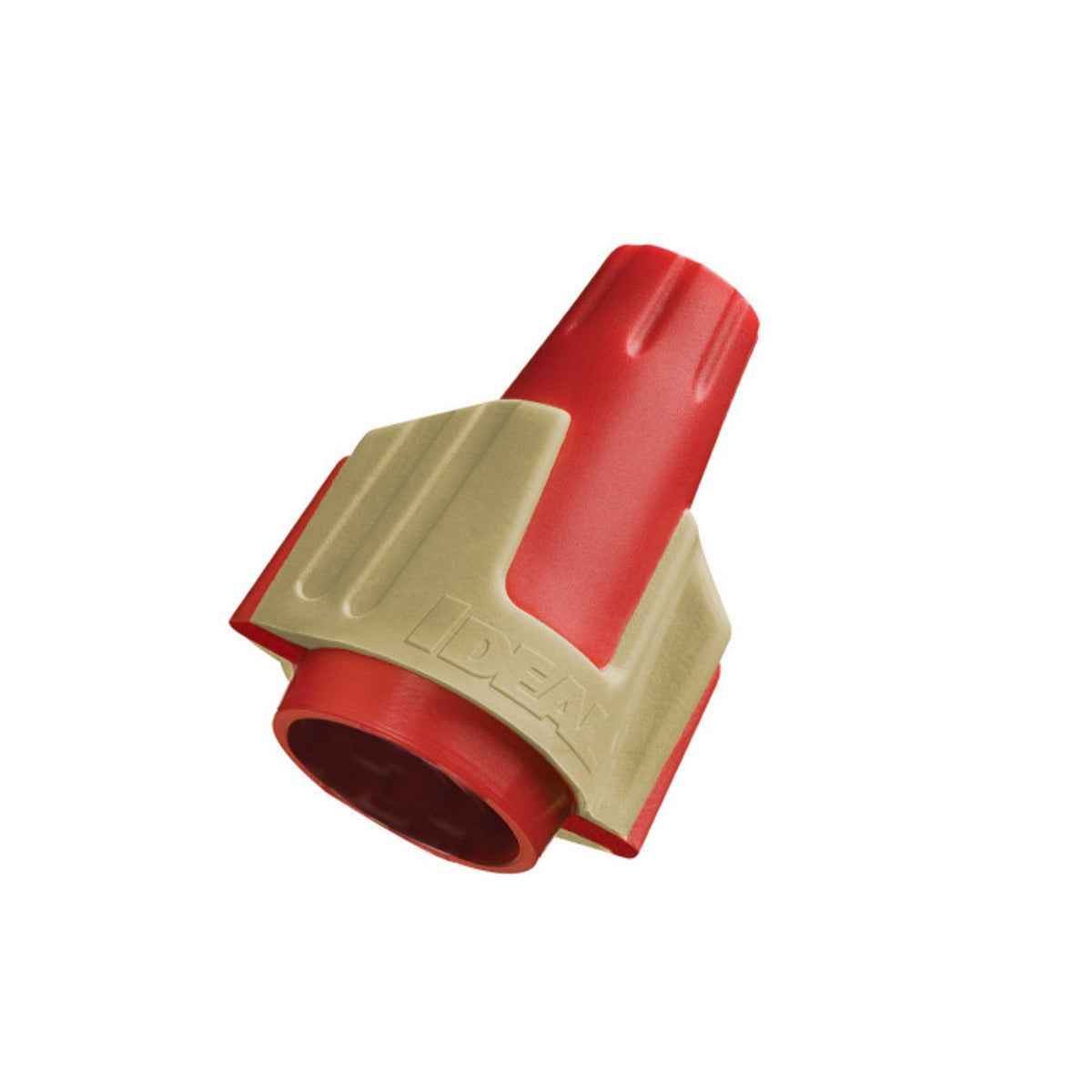

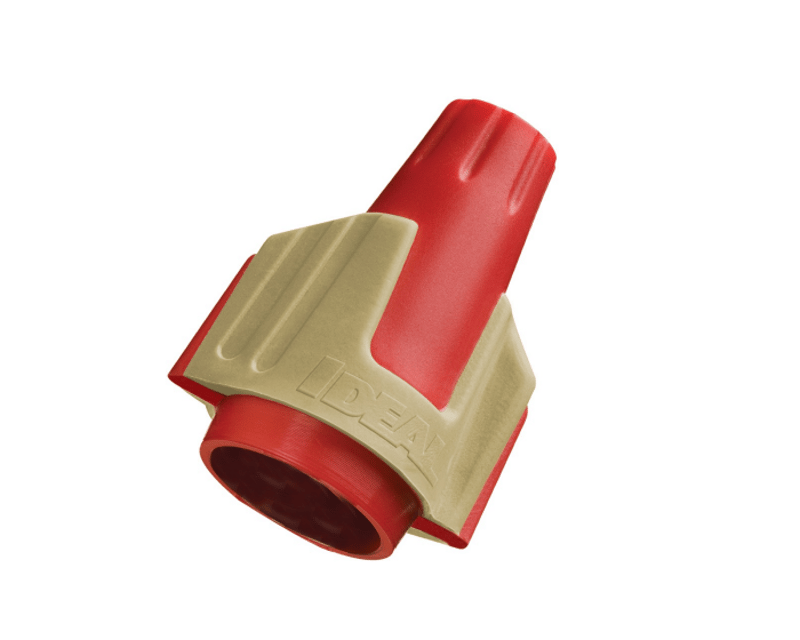

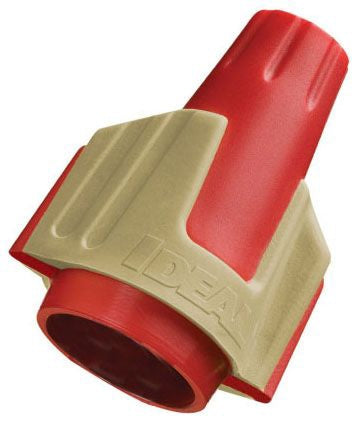

IDEAL 30-644J Twister Pro Wire Connector 600V 22-8 AWG 344

Product Description

The IDEAL 30-644J Twister Pro Wire Connector is designed for connecting solid and stranded copper wire, accommodating a range of 22 to 8 AWG. This connector features a swept wing design and is rated for a maximum voltage of six hundred volts. Its flame-retardant polypropylene material ensures durability in various environmental conditions.

• Wide conductor range from 22 to 8 AWG
• Flame-retardant polypropylene material
• Designed for 2 to 4 conductors

Product Highlights

The Twister Pro supports effective wiring for electricians, providing a secure connection with less fatigue during installation. Its design helps reduce hand fatigue and allows for quick installation on various wire combinations.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part No: 30-644J

Technical Specifications

• Voltage Rating: 600 VAC
• Wire Size: 22 to 8 AWG
• Wire Type: Solid/Stranded Copper
• Conductor Range: 2 to 4 Conductors
• Material: Flame-retardant Polypropylene
• Temperature Rating: 221 Deg F
