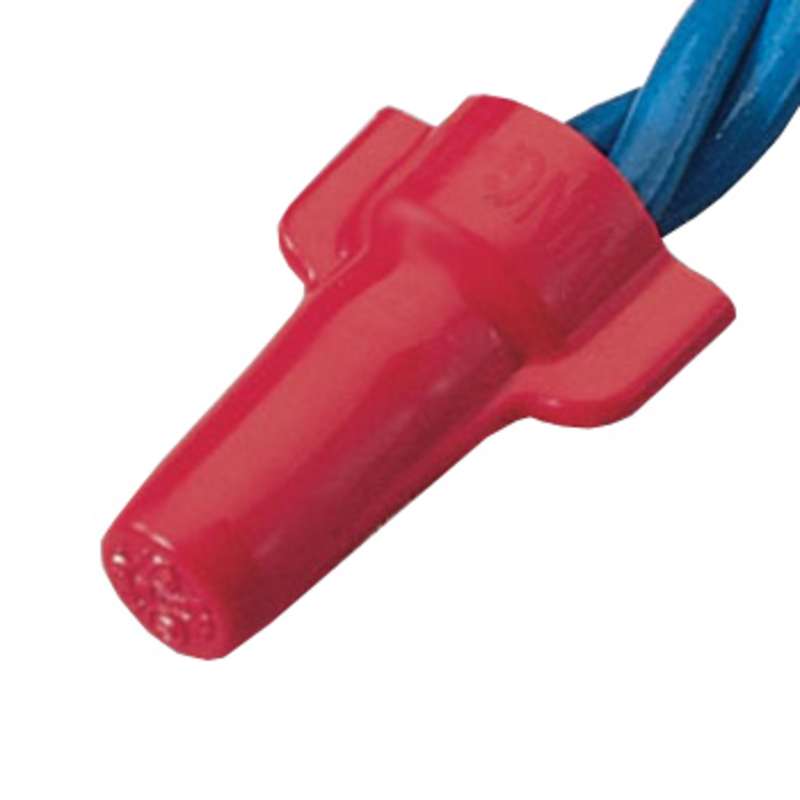

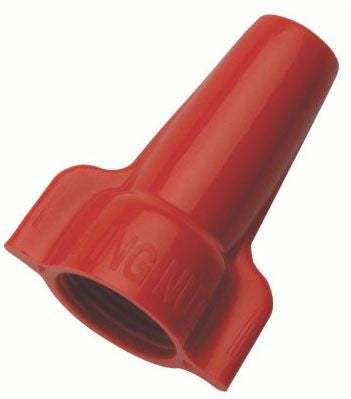

Ideal 30-452 Winged Twist-On Wire Connector, 18 to 8 AWG, 600 VAC

Product Description

The Ideal 30-452 is a wire connector designed for a secure connection between wires. This twist-on wire connector is suitable for solid and stranded wires ranging from eighteen to eight AWG and is rated for six hundred volts. The design includes contoured wings that provide a better grip and leverage when twisting wires together, making installations quicker and easier.

• Accommodates a variety of wire sizes
• UL listed and CSA certified for safety
• Flame-retardant material for durability in tough conditions

Product Highlights

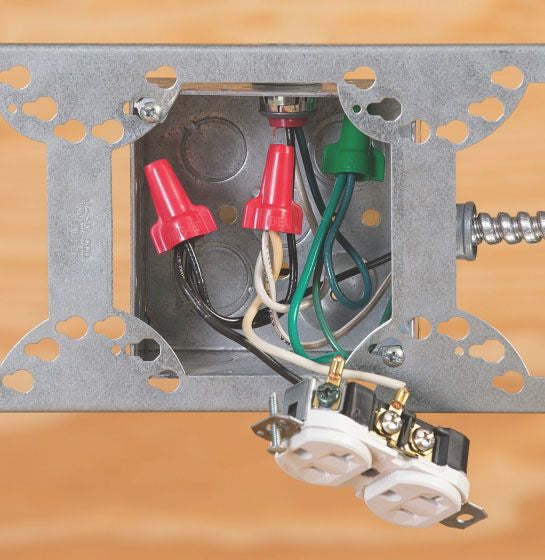

This wire connector is ideal for insulating and joining two or more conductors. The live-action spring allows it to expand to fit different wire shapes and sizes, ensuring a secure grip without pre-twisting. It also features a deep skirt to protect against flashover and turned strands, making it reliable for various electrical jobs.

Product Information

Standard Information

• Brand: Ideal
• MPN: 30-452

Technical Specifications

• Color: Red
• Material: Flame-retardant polypropylene
• Voltage Rating: 600 VAC
• Conductor Range: 18 - 8 AWG
• Dimensions: 0.6 in diameter x 1.234375 in width x 0.9375 in height
