Ideal 30-445 Wrap-Cap Insulator 600 V (50/Box)

Product Description

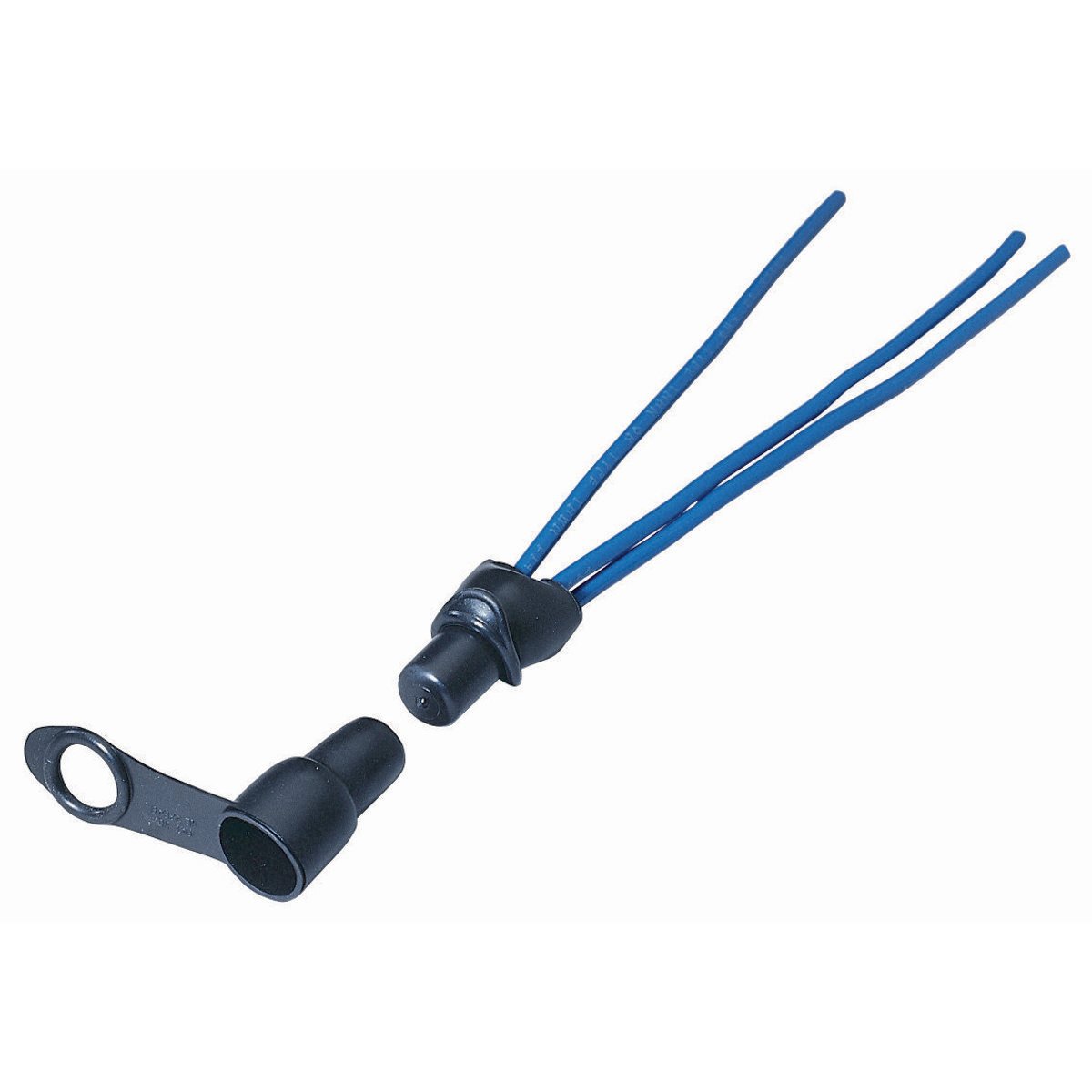

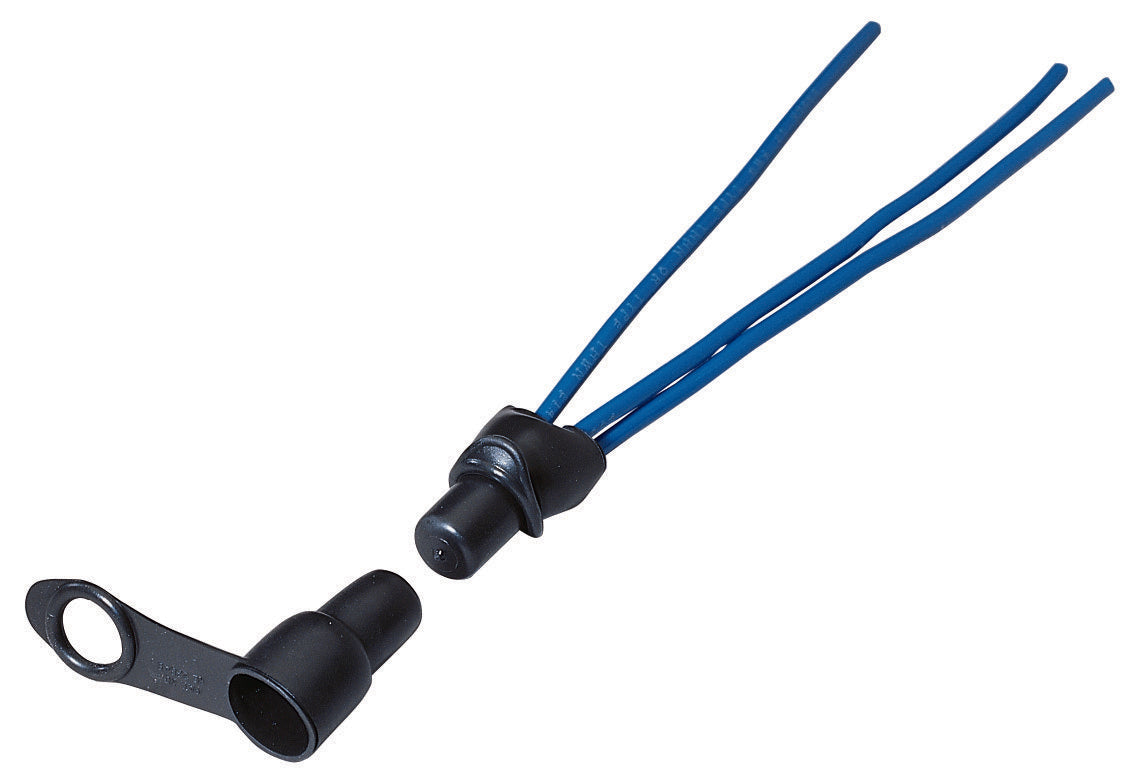

The IDEAL 30-445 Wrap-Cap Insulator provides dielectric and physical protection for UL Listed, non-insulated pressure-type wire connectors. Its unique design completely covers the splice, insulating around and between wires, eliminating the need for tape. It is UL Listed to 486C and CSA Certified for 600V maximum building wiring and temperature rated at 75 DEG C (167 DEG F) maximum.

• Provides high dielectric and physical protection for wire connectors
• Eliminates the need for tape with cap and loop design
• Reusable and easy to install

Product Highlights

Reusable and easy to install, the Wrap-Cap insulator provides a quick, clean, and reusable solution to traditional tape applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-445
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-445
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Wrap-Cap
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Provide high dielectric and physical protection for UL listed, non-insulated pressure-type wire connectors; Cap and loop design eliminates need for tape; Unique design completely covers splice - insulates both around and between wires; Reusable and easy to install; UL listed to 486C and CSA certified for 600 V maximum building wiring (1,000 V maximum for fixtures and signs), temperature rated at 75 DEG C (167 DEG F) maximum; Model 410 Connectors can also be used on Buchanan 2006S and 2011S copper crimps
• Standard: UL Listed, CSA Certified
• UPC: 783250750481
• GTIN: 00783250750481
• Item Type: Insulator
• Voltage Rating: 600 V
• Temperature Rating: 75 DEG C
