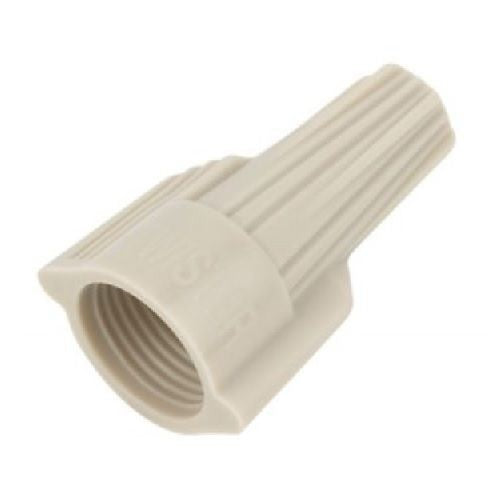

Ideal 30-341 Flame-Retardant Wire Connector, 600 VAC, 100 Count

Product Description

The Ideal 30-341 is a flame-retardant wire connector designed for use with wire sizes ranging from twenty-two to eight AWG. This product features a swept-wing design and a hexagonal top for easy installation with standard nut drivers. The connector is built to handle a variety of wire combinations, including combinations of solid and stranded wire. The durable housing ensures a secure grip for reliable electrical connections.

• Supports wire ranges from twenty-two to eight AWG.
• Rated for 600 VAC with a maximum temperature rating of two hundred twenty-one degrees Fahrenheit.
• Features a live-action spring for strong, reliable connections.

Product Highlights

Ideal for professionals, the 30-341 Twister wire connector minimizes fatigue during installation and provides a quick, easy grip.

Product Information

Standard Information

• Brand: Ideal
• MPN: 30-341

Technical Specifications

• Wire Size: 22 to 8 AWG
• Material: Flame-retardant Polypropylene
• Voltage Rating: 600 VAC
• Conductor Range: 1 to 6 conductors
• Dimensions: 0.54 in diameter x 0.72 in wide x 1.14 in high
• Temperature Rating: 221 degrees Fahrenheit
• Standard: CSA C22.2 #188, UL 486C Listed
