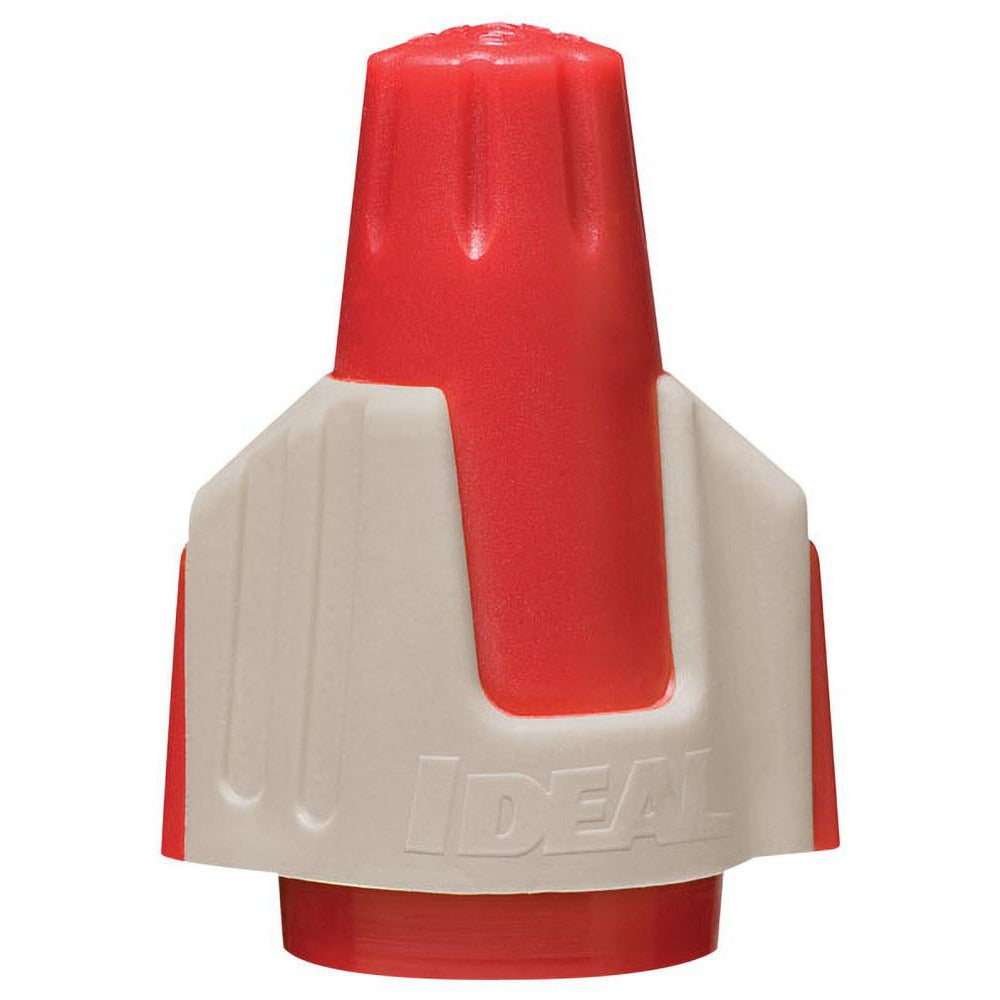

Ideal 30-144 Wing Twist-on Wire Connector 600V 50-pack

Product Description

The IDEAL 30-144 is a wing-style twist-on wire connector rated for 600 volts and a maximum operating temperature of 221 degrees F. Built with a flame-retardant shell, this connector is designed for making reliable wire-to-wire terminations in electrical panels, junction boxes, and general wiring applications. The wing ears allow fast hand-tightening without a tool, which speeds up repetitive termination work. Licensed electricians and electrical contractors are the primary installers. Each package contains 50 connectors in a red and tan color combination.

This connector handles a wire range from 22 AWG minimum to 8 AWG maximum, with a rated capacity of up to four conductors at 10 AWG. That range covers the majority of branch-circuit and low-voltage control wiring encountered in residential and light commercial electrical work. The 30-144 is appropriate for use in standard indoor wiring applications where flame-retardant termination hardware is required or preferred. Its wing design makes it practical in tight spaces where pliers or a screwdriver would be awkward to use.

Key Features

• Flame-retardant shell resists ignition in fault conditions
• Wing ears allow tool-free hand-tightening for faster terminations
• Rated 600 volts and 221 degrees F maximum operating temperature
• Wire range from 22 AWG to 8 AWG accommodates a wide variety of conductors
• Accepts up to four 10 AWG conductors in a single connector
• Pack of 50 connectors for high-volume installation work

Compatibility

Suitable for copper-to-copper wire terminations in residential and light commercial wiring applications where a 600-volt, flame-retardant twist-on connector in the 22 AWG to 8 AWG range is required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making or breaking any wire connections. Strip conductors to the appropriate length before twisting on the connector, and verify the connector is fully seated with no exposed bare wire visible below the shell. Do not exceed the rated wire count or wire size for this connector.
