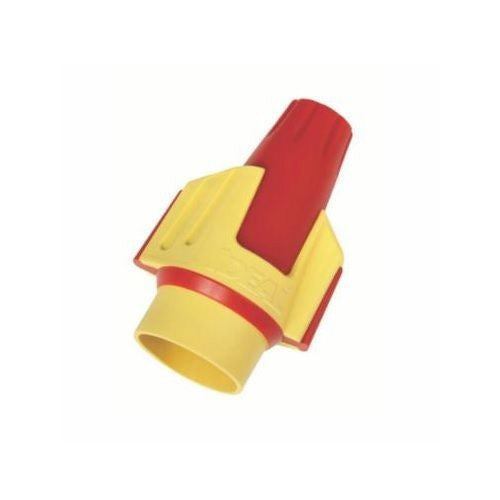

Ideal 30-1047 Twister ProFLEX 347 50/Box

Product Description

The IDEAL 30-1047 Twister ProFLEX wire connectors are rated to 1000V and designed for #22 to #8 AWG copper conductors with 2 to 4 wire splices. They feature a flexible skirt for box clearance and a SureGrip overmold for easy twisting, plus a live-action square-wire spring for reliable contact.

• Rated for 1000 V and handles #22 to #8 AWG wires.
• Flexible skirt fits tight boxes and provides extra protection from flash-over and voltage spikes.
• Patented ergonomic design provides a comfortable grip and easy installation.

Product Highlights

The Twister ProFLEX wire connectors combine comfort and protection for a secure connection.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-1047
• Country of Origin: United States

Technical Specifications

• Color: Red, Yellow
• Termination Method: Twist-on
• Maximum Rated Voltage: 1000 V
• Maximum Wire Gauge: 8 AWG
• Minimum Wire Gauge: 22 AWG
• Wire Type: Solid, Stranded
• Flexible Skirt: Yes
• Brand: IDEAL Electrical
• Material: Polypropylene (PP)
• MPN: 30-1047
• Type: Wire Connectors & Terminals > Wire Connectors & Disconnects > Wir
• Number of Ports: 1
• Connector Style: Twist-On
• Voltage: 1000 V
• Contact Material: Steel
• Number of Poles: 1
• UPC: 783250802371
• Temperature Rating: 221 deg F
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, IEC 60998-2 and 60998-2-4, UL 486 C/UL 94V-2 Flammability Rating
• Finish: Zinc Plated
• Application: Spin-Twist Wire Connector Socket
• Wire Size: 22 to 8 AWG, (2) 18 to (4) 10 AWG
• Spring Type: Expanding Square Wire
• Shell Style: Swept Wing
• Series: 347
