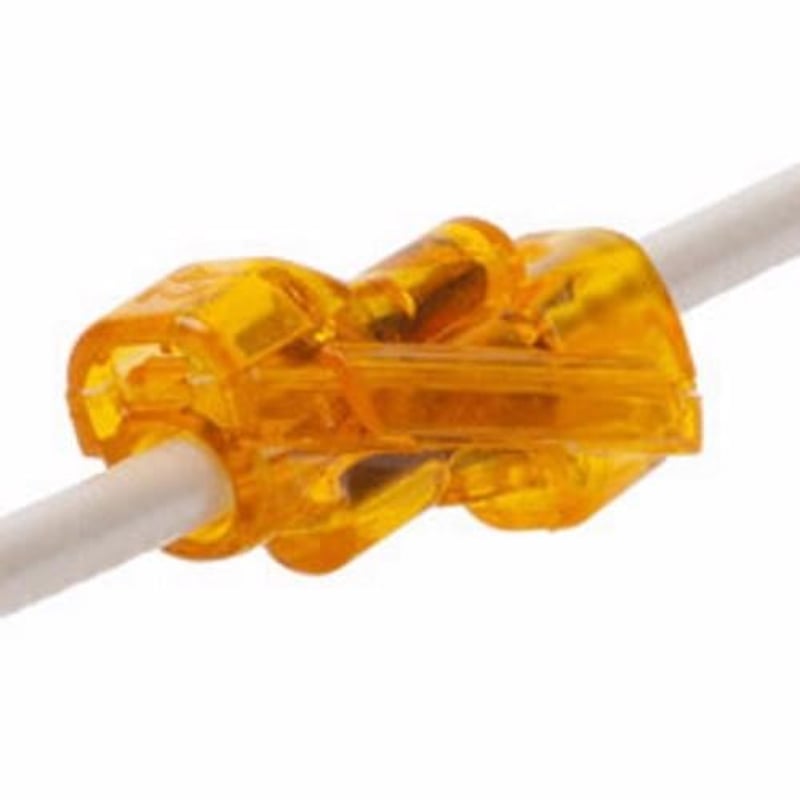

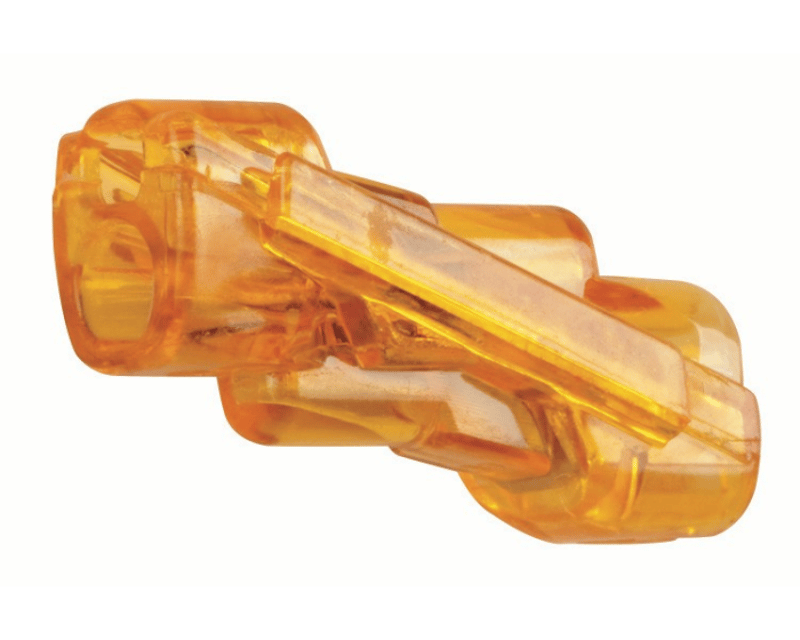

IDEAL 30-1042 In-Line Wire Connector, Orange, Model 42

Product Description

The IDEAL 30-1042 In-Line Wire Connector, Orange, Model 42, is designed for easy wire connections. It works with wire sizes from twelve AWG to twenty AWG for solid or twelve AWG to sixteen AWG for stranded wire.

• Voltage rating: six hundred volts
• Amperage rating: twenty amps
• Temperature rating: one hundred five degrees Celsius

Product Highlights

This connector offers a crimp-free and solderless connection, making installation quicker and more efficient.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 30-1042

Technical Specifications

• Wire Size: 12 AWG - 20 AWG Solid, 12 AWG - 16 AWG Stranded
• Color: Orange
• Voltage Rating: 600 V
• Amperage Rating: 20 A
• Temperature Rating: 105 Deg C
• Application: For fast connections and visual inspection of connection
• Special Features: Crimp-free, Push-in butt splice, Low insertion force for fast connections
• Compliance: CSA C22.2 #188, UL Listed, RoHS
