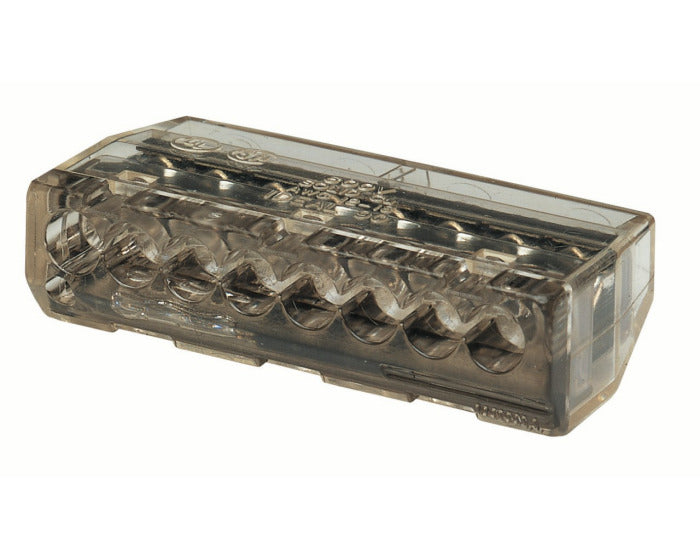

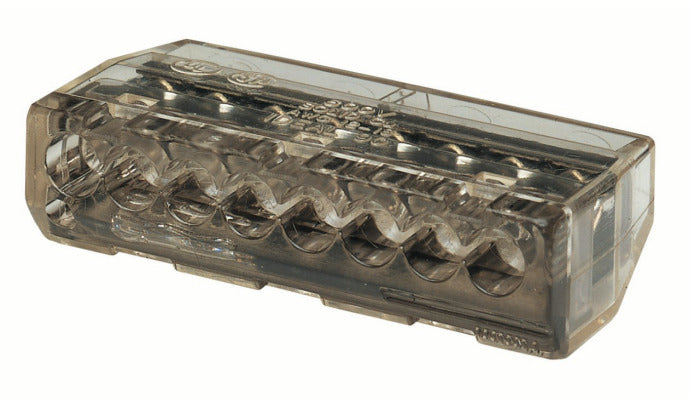

Ideal 30-090J In-Sure Push-In Connector

Product Description

The Ideal 30-090J In-Sure Push-In Wire Connector provides a reliable solution for various wiring applications. This connector is suitable for residential wiring, light commercial uses, and lighting retrofits. It is designed for easy installation, allowing users to push the wire in with minimal force. The clear polycarbonate housing and color-coded shell enhance usability, providing visual verification of connections.

• Low insertion force for easy wiring connections
• Clear shell for visual verification
• Rated for 600 V maximum voltage

Product Highlights

This connector features a compact design that simplifies installation in tight spaces. It is UL Listed and CSA Certified, making it a trusted choice for grounding and bonding applications.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-090J
• Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less), #18 AWG (7 Strand Or Less) Stranded
• Voltage Rating: 600 V Maximum Building Wire
• Temperature Rating: 105 DEG C Shell Rated
• Connection: 8 Ports
• Application: For Grounding And Bonding Applications
• Material: Polycarbonate
• Special Features: No-Twist Connection, Compact Size, Flame-Retardant Shell
