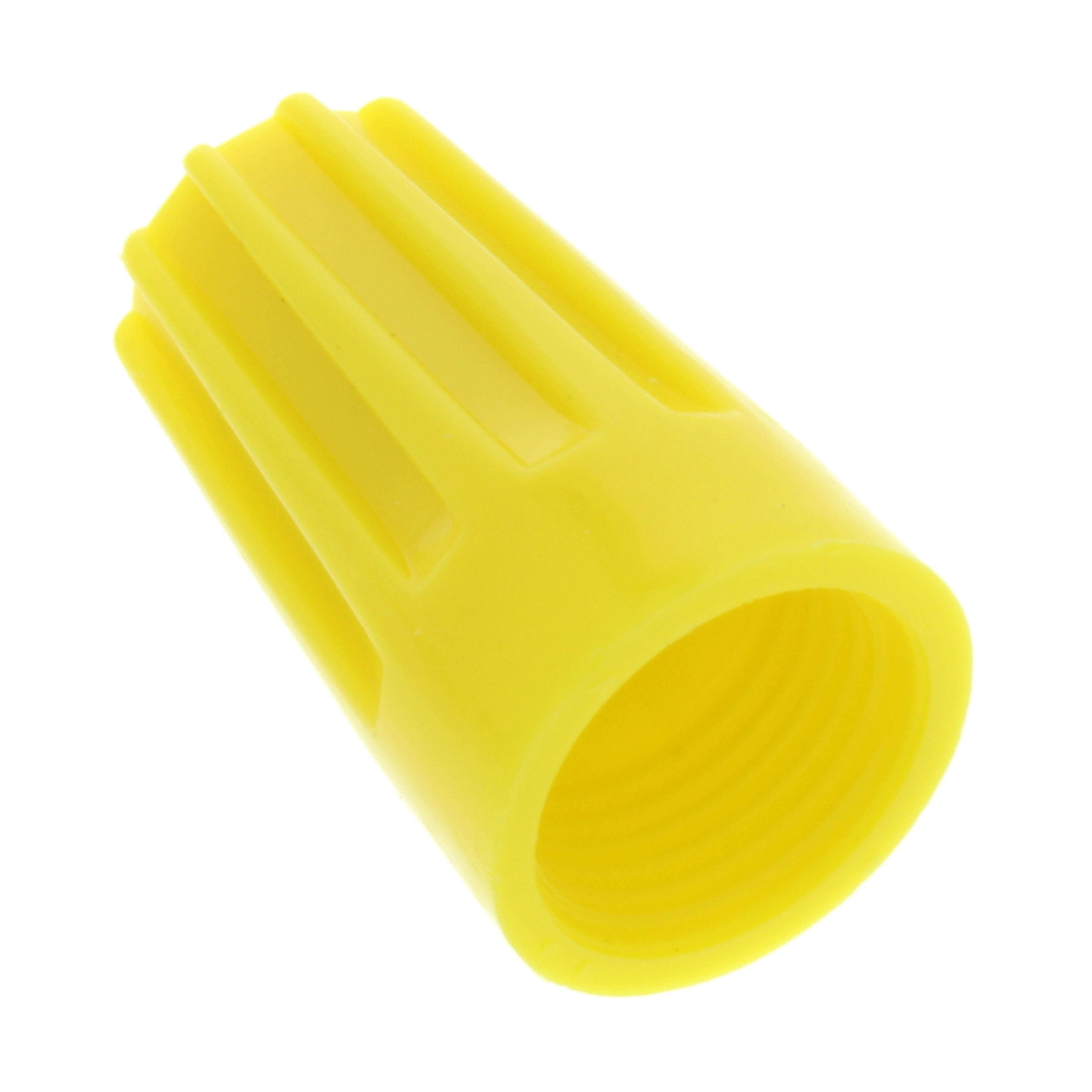

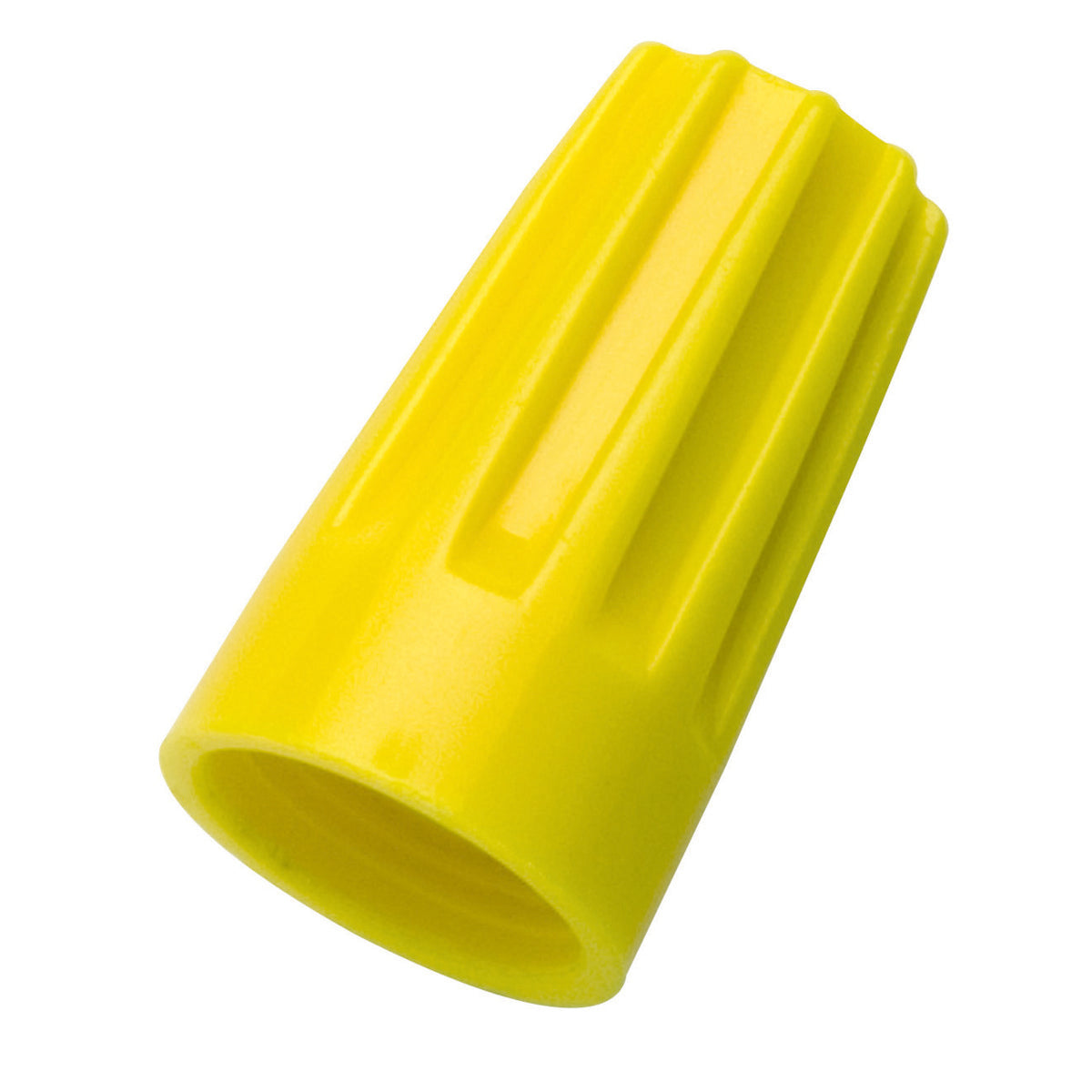

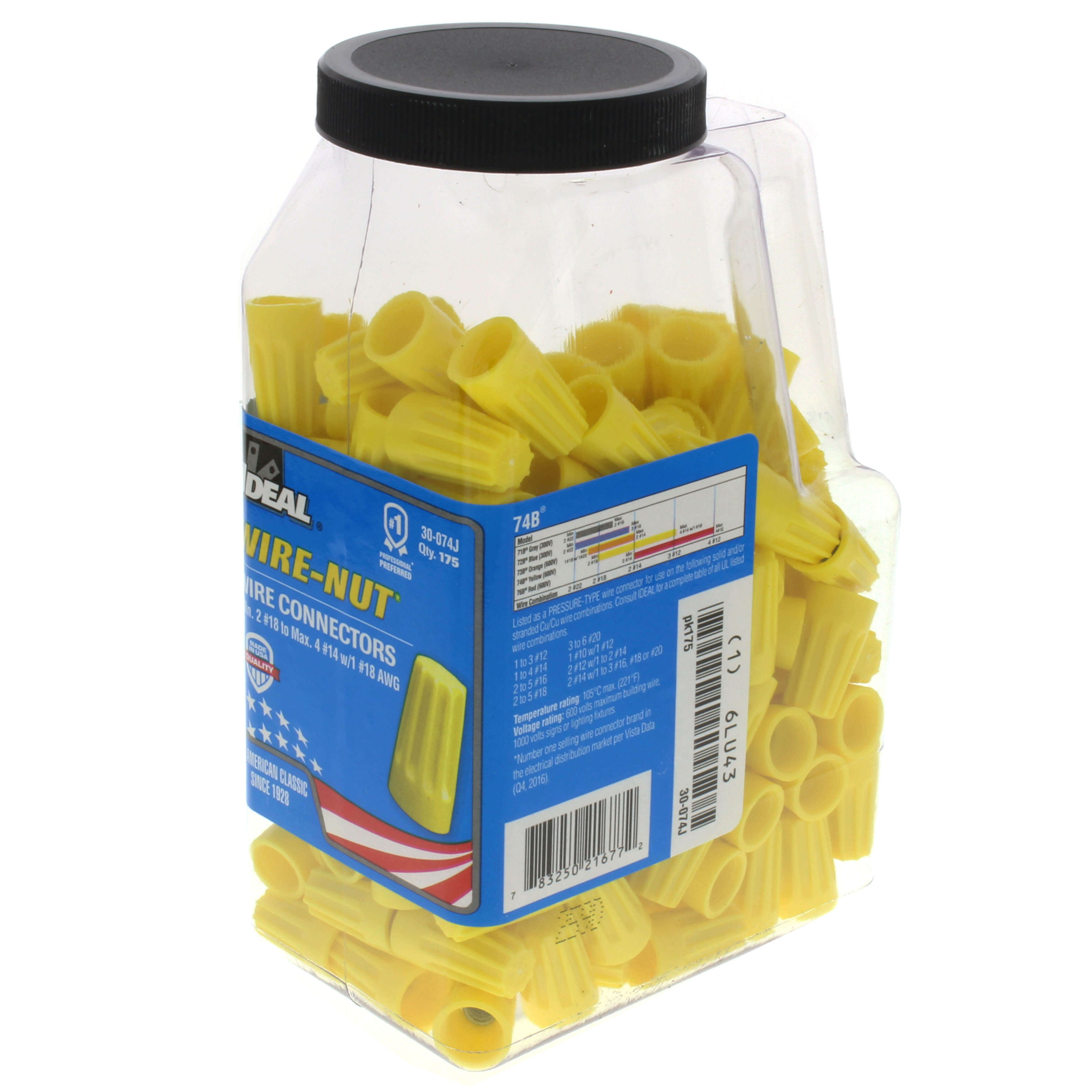

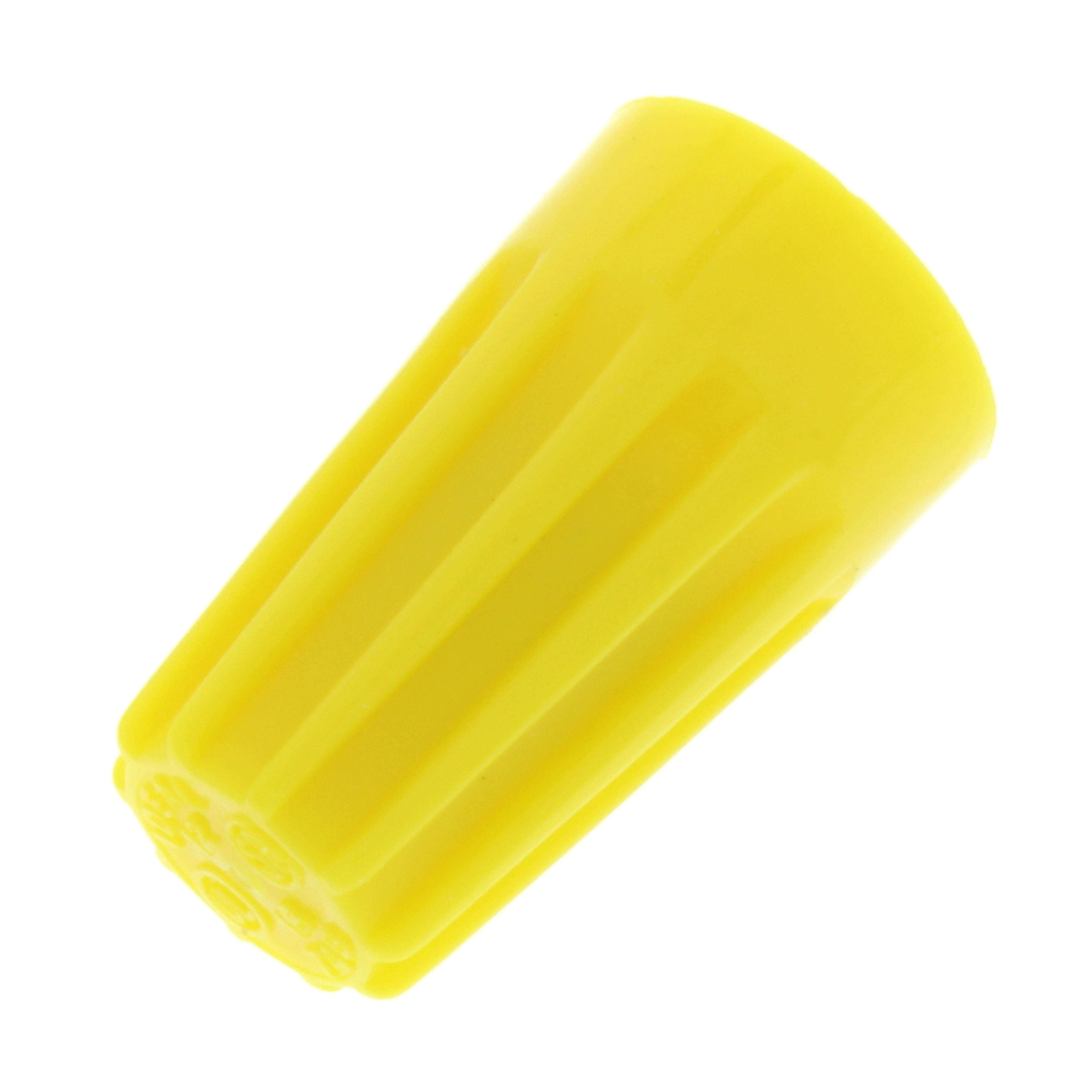

Ideal 30-074J Wire-Nut Wire Connector 18 - 12 AWG

Product Description

The IDEAL 30-074J Wire-Nut Wire Connector set standards for innovation and quality. As the first screw-on wire connector in America, it features a fixed, square-wire spring and a positive grip shell for a secure connection. It is suitable for fine stranded wire applications and features a flame-retardant thermoplastic shell that withstands environmental extremes.

• Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time
• No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation
• Deep Skirt Helps Protect Against Flash-Over

Product Highlights

Reusable for easy circuit changes, the Wire-Nut wire connectors handle jobs from #22 to #6 gauge wire and are UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-074J
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-074J
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: Wire-Nut®
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 2 or more conductors
• Color: Yellow
• Conductor Range: 18 - 12 AWG, Min 2-18 MAX 4-14 w/ 1-18
• Material: Flame-retardant polypropelene
• Number of Conductors: 2, 4
• Special Features: Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusable For Easy Circuit Changes And Additions; Tough, UL94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F)
• Standard: CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E
• UPC: 783250216772
• GTIN: 00783250216772
• Item Type: Twist-On
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Voltage Rating: 600
• Maximum Operating Temperature: 221 Degrees F
• Maximum Voltage: 600 V
• Contact Material: Steel
• UL 94 Flammability Rating: V-2
• Insulation Material: Thermoplastic Polyester
• Wire Connector Style: Standard
• Wire Size Ranges: 18 AWG - 12 AWG
• Max. Single Wire Size: 12 AWG
• Max. Wire Combination: (4) 14 AWG with (1) 18 AWG
• Min. Single Wire Size: 18 AWG
• Min. Wire Combination: (2) 18 AWG
• For Conductor Material: Copper
• Twist-On Wire Size Ranges: 18 AWG - 12 AWG
• High Temperature Application: No
• Width: 0.55 in
• Height: 0.95 in
• Series: 74B
• Strip Length: 7/16 in
• For Wire Size: 12 AWG, 14 AWG, 16 AWG, 18 AWG
• Overall Width: 0.55 in
• Connector Type: 74B
• Overall Height: 0.95 in
• RoHS Compliant: Yes
• Maximum Conductors: 6
• IGCC: 4665
• AWG: 18-12
• Voltage: 600V
• Product Range: Wire-Nut 74B Series
• Termination: Twist On
• Wire Size AWG Min: 18AWG
• Wire Size AWG Max: 12AWG
• Use With: Copper Wire
• Color Family: Yellow
