Ideal 2011S Splice Cap Crimp Connector 50-pack

Product Description

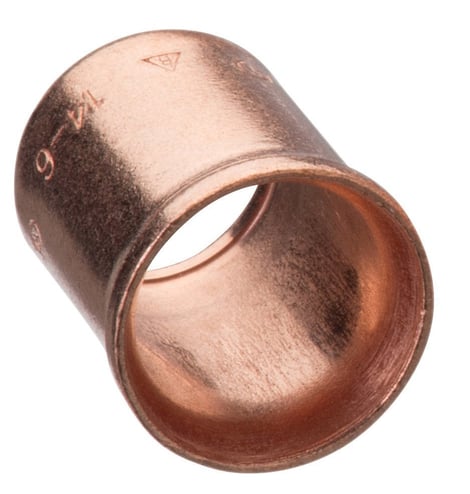

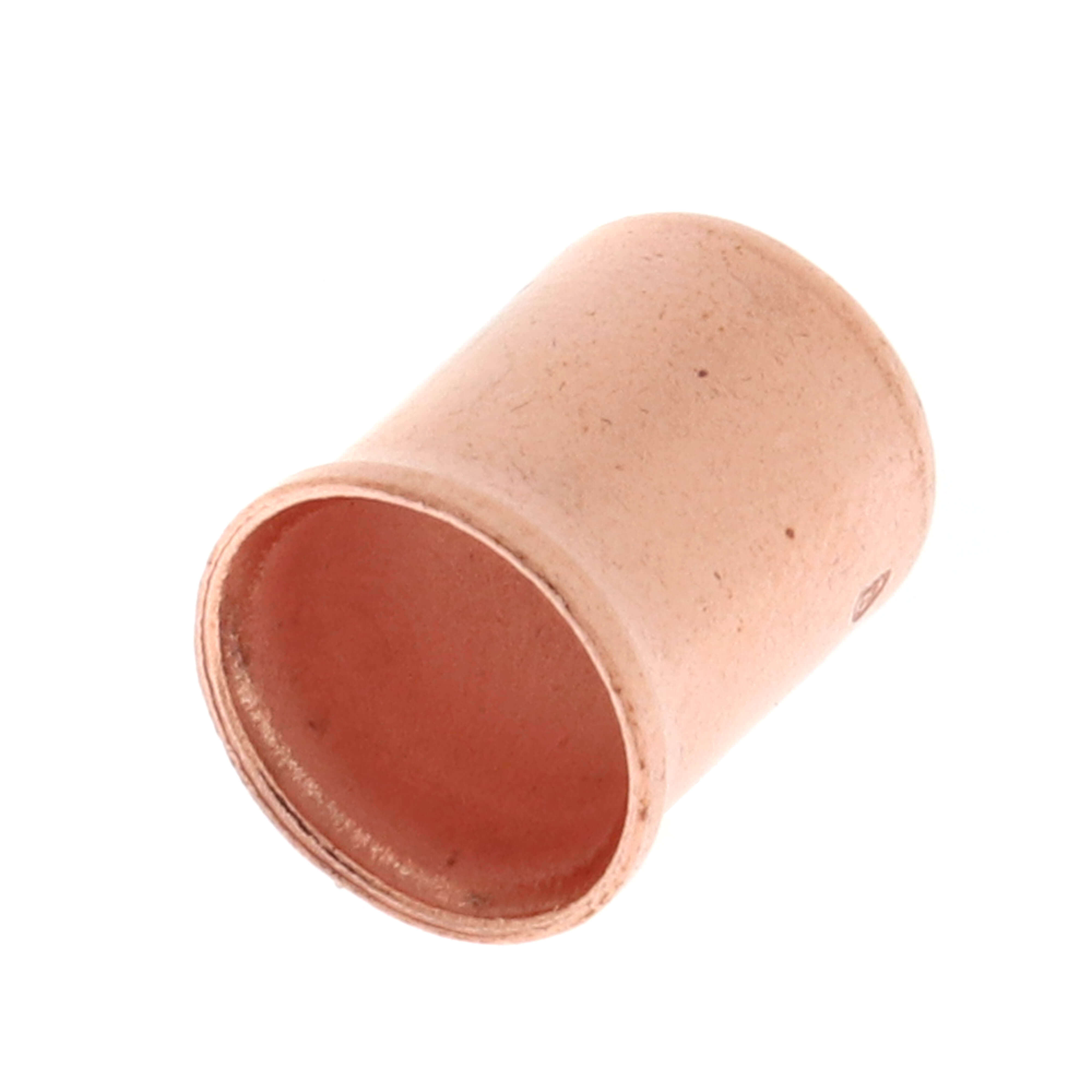

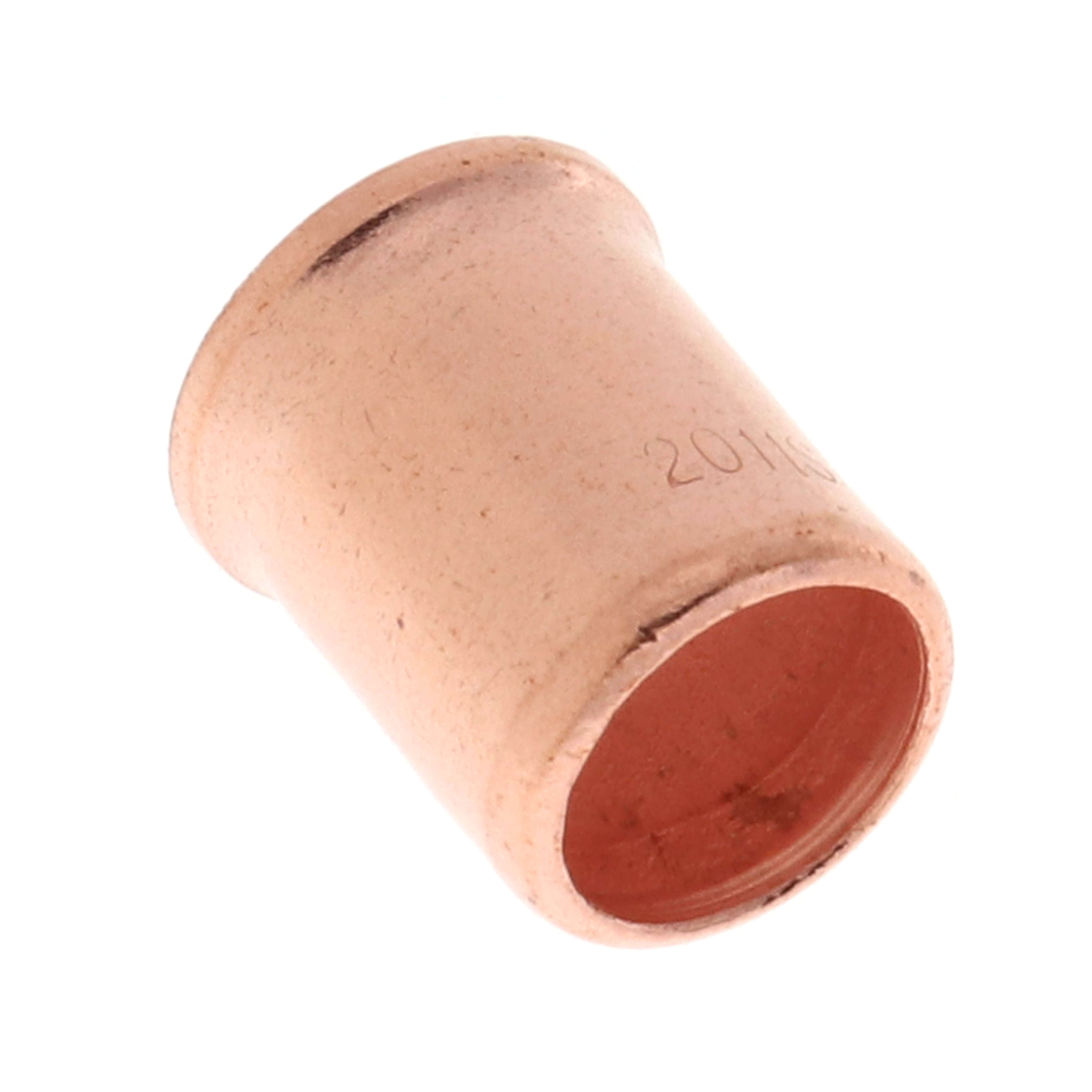

The IDEAL 2011S is a splice cap crimp connector designed for fast, permanent, pressure-type connections. It accommodates #14 to #4 AWG wire, with a minimum of two #10 AWG wires and a maximum of two #6 AWG wires. Use with the Buchanan C24 crimp tool. The steel and copper crimp connectors cover a wide range of combinations.

• For #14 to #4 AWG wire
• Minimum 2 #10 AWG wire
• Maximum 2 #6 AWG wire
• Use Buchanan C24 Crimp Tool
• Zinc-plated or copper sleeves resist corrosion

Product Highlights

Designed for fast, permanent connections. Solid copper sleeves resist corrosion. UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 2011S
• Country of Origin: USA

Technical Specifications

• Manufacturer: IDEAL INDUSTRIES
• Brand: IDEAL
• MPN: 2011S
• Item_Number: IDL2011S
• For Wire Gauge: #14 to #4 AWG
• Minimum Wire: 2 #10 AWG
• Maximum Wire: 2 #6 AWG
• Tool Compatibility: Buchanan C24 Crimp Tool
• Certifications: UL Listed and CSA Certified
• Sleeve Material: Zinc-plated or copper
• Application: For Buchanan C24 Crimp Tool And Designed For Fast, Permanent, Pressure-Type Connections
• Conductor Range: 14 - 4 AWG, 10/2 AWG Min, 6/2 AWG AWG Max
• Conductor Size: 14 to 4 AWG, 10/2 AWG Minimum, 6/2 AWG Maximum
• Country of Origin: USA
• Finish: Zinc Plated

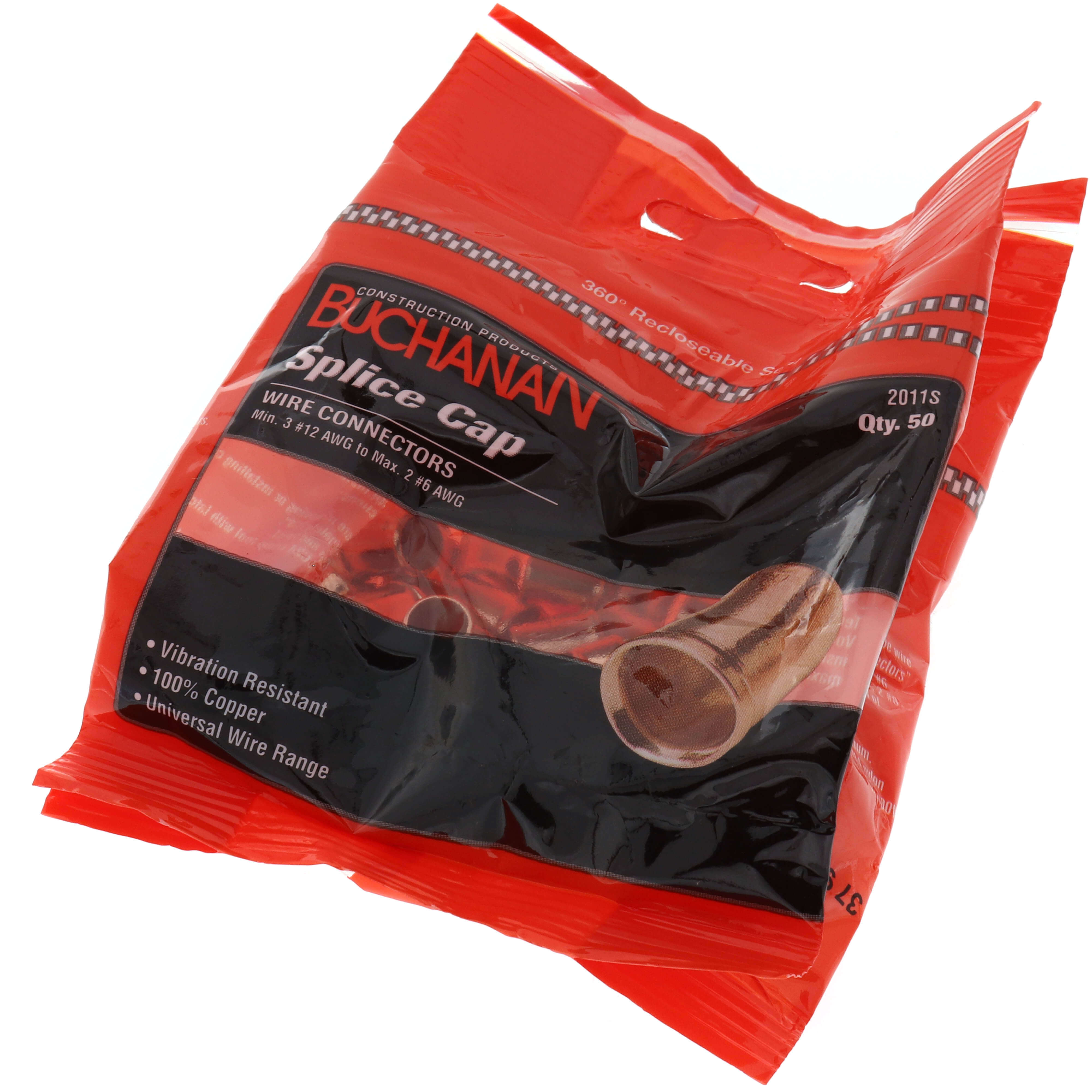

• Package_Quantity: 50
• Special Features: Designed for fast, permanent, pressure type connections Solid copper sleeve require less crimping pressure and resist corrosion in harsh environments
• Standard: CSA, UL Listed, RoHS
• Sub_Brand: Buchanan
• Type: Non Insulated
• Voltage Rating: 600
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Wire Gauge: 4 AWG
• Minimum Wire Gauge: 14 AWG
• Wire Type: Solid, Stranded
• Insulated: No
