IDC Select IDCUCFX15-47 UCFX Medium Duty Flange Mount Ball Bearing Unit

Product Description

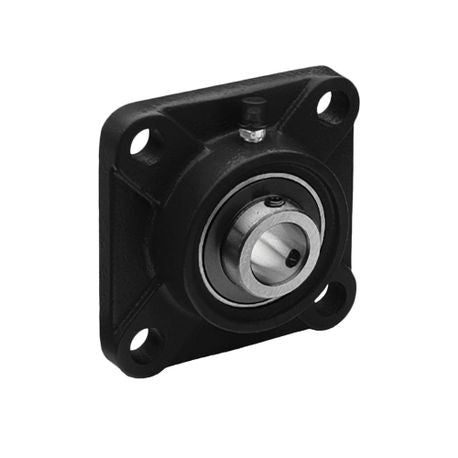

The IDC Select IDCUCFX15-47 is a medium duty flange mount ball bearing unit designed for reliable performance in various applications. This mounted bearing features a cast iron housing and a wide heat treated inner ring. It is suitable for medium duty tasks and includes crucial features that enhance its usability and durability.

• Durable cast iron housing
• Self-aligning design for operational reliability
• Grease fitting for easy lubrication maintenance

Product Highlights

This bearing unit is engineered for a long service life, offering high performance across diverse environments.

Product Information

Standard Information

• Manufacturer: IDC Select
• Brand: IDC Select

Technical Specifications

• Bore Diameter: 2-15/16 in
• Overall Length/Diameter: 7-3/4 in
• Bolt Center-to-Center Length: 5-63/64 in
• Flange Mounting Type: 4-Bolt Square
• Overall Height: 7-3/4 in
• Seal Material: Synthetic Rubber
• Locking Device: Set Screw
• Temperature Rating: -40 to 250 deg F
