IDC SELECT IDC2BK032H SHEAVES
IDC SELECT IDC Select IDC2BK032H Light Duty Type 1 Sheave 3.35 in OD 2 Grooves 3 in Dia Pitch
IDC SELECT IDC2BK032H SHEAVES
IDC Select IDC2BK032H Light Duty Type 1 Sheave 3.35 in OD 2 Grooves 3 in Dia Pitch

IDC Select IDC2BK032H Light Duty Type 1 Sheave 3.35 in OD 2 Grooves 3 in Dia Pitch

Brand: IDC SELECT
SKU: IDC2BK032H
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

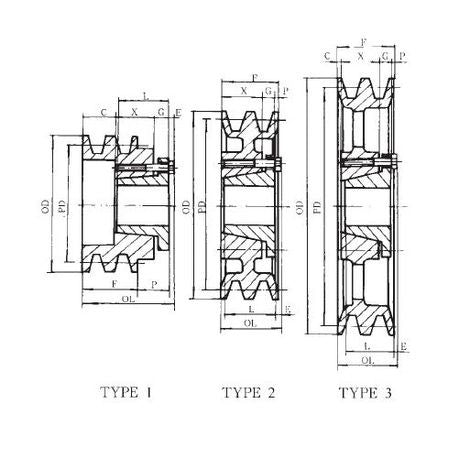

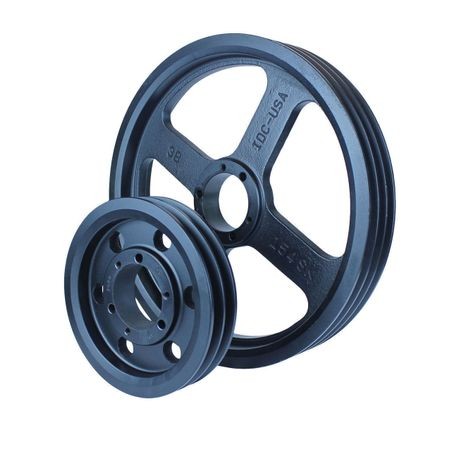

IDC Select IDC2BK032H is a light duty type 1 sheave designed for use with A-B and 3L-4L-5L belts. This unit features a three point three five inch outside diameter and two grooves. It is made to ensure compatibility with H design bushings.

  • Manufactured from gray cast iron
  • Statically balanced for optimal performance
  • Designed for a maximum rim speed of six thousand five hundred feet per minute

Product Highlights

This sheave is suitable for various industrial applications including air handling and agricultural operations.

Product Information

Standard Information

  • Brand: IDC Select
  • Manufacturer: IDC Select
Technical Specifications
Material
Class 25 cast iron
Overall Length
two and thirteen sixteenths inches
Face Width
one and three fourths inches
Outside Diameter
three point three five inches
Pitch Diameter
three inches
Number of Grooves
two
Bushing Type
H
Suitable For Use With
4L/A and 5L/B Cross Section V-Belts
