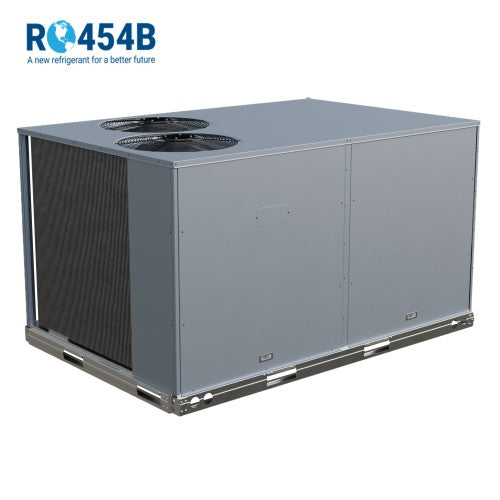

Icp RGF090HE2A0AAA Rooftop Unit 7.5 Ton Gas Electric

Product Description

The INTERNATIONAL COMFORT PRODUCTS RGF090HE2A0AAA is a 7.5-ton commercial rooftop unit (RTU) engineered for packaged gas-electric HVAC applications. Part of the RGF product group, this unit combines gas heating and electric cooling in a single rooftop-mounted cabinet, making it a direct solution for light commercial buildings where rooftop installation is the design standard. With a 2-stage configuration and 230-volt power supply, it delivers staged capacity control for improved comfort and efficiency across varying load conditions. Licensed HVAC technicians and mechanical contractors are the typical installing trade for this class of equipment.

This RTU is suited for light commercial applications such as retail spaces, small office buildings, warehouses, and similar structures that use rooftop-mounted packaged equipment. The 7.5-ton cooling capacity targets mid-size commercial zones where a single packaged unit handles the full heating and cooling load for a defined area. The 2-stage operation allows the system to run at reduced capacity during lighter load periods, reducing short-cycling and improving dehumidification performance. The 230-volt electrical configuration is standard for light commercial packaged rooftop installations in this capacity range.

Key Features

• 7.5-ton nominal cooling capacity for mid-size commercial applications
• 2-stage operation for improved capacity modulation and comfort control
• 230-volt electrical configuration standard for light commercial rooftop installs
• Packaged gas-electric design combines heating and cooling in one rooftop cabinet
• Part of the RGF product group from International Comfort Products under the Heil brand family

Compatibility

Designed as an OEM rooftop packaged unit within the ICP and Heil brand family under the RGF product group. Verify curb adapter, duct opening dimensions, and electrical supply specifications against the installation site before ordering.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes, the manufacturer installation manual, and applicable ASHRAE and NEC requirements. Disconnect and lock out all electrical power before servicing. Rooftop installations require proper curb mounting, flashing, and structural verification to support unit weight. Refrigerant handling must be performed by EPA Section 608 certified technicians.

Technical Specifications

• Tonnage: 7.5 tons
• Stages: 2
• Voltage: 230 volts
• System Type: Gas Electric Packaged Rooftop Unit
• Product Group: RGF
• Category: Rooftop HVAC

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: RGF090HE2A0AAA
