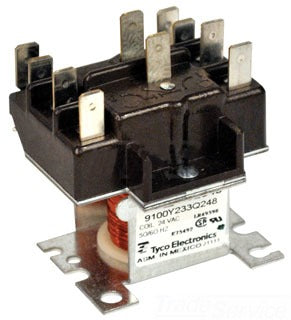

Icp REL90342 240V Dpdt Relay

Product Description

The INTERNATIONAL COMFORT PRODUCTS REL90342 is a double-pole double-throw (DPDT) relay rated for 240-volt operation, designed for use in HVAC control circuits. A DPDT relay switches two separate circuits simultaneously, making it suitable for load switching, reversing, or sequencing tasks within heating and cooling systems. This relay is an electromechanical switching device that opens and closes circuit paths based on a control signal, allowing low-voltage control systems to manage higher-voltage loads safely. It is typically installed by licensed HVAC technicians during system service, retrofit, or board-level component replacement.

This relay is used in HVAC applications where 240-volt switching is required across two independent circuit poles. Typical installation scenarios include air handler control boards, furnace sequencer circuits, and equipment relay panels where simultaneous dual-circuit switching is needed. The DPDT configuration allows for flexibility in wiring arrangements, including common changeover switching applications. It is suited for both residential and light commercial HVAC equipment requiring reliable 240-volt relay control.

Key Features

• 240-volt rated coil or contact operation for compatibility with standard residential and light commercial HVAC systems
• Double-pole double-throw (DPDT) contact configuration enables simultaneous switching of two independent circuits
• Electromechanical design provides reliable switching for load control and sequencing applications
• OEM part from INTERNATIONAL COMFORT PRODUCTS ensures form, fit, and function match to original equipment

Compatibility

Designed as an OEM-style replacement relay for INTERNATIONAL COMFORT PRODUCTS HVAC equipment requiring a 240-volt DPDT relay in the control circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing any relay. Verify that the replacement relay coil voltage and contact ratings match the original equipment requirements before energizing the system. Follow applicable NEC guidelines for low-voltage and line-voltage control wiring during installation.

Technical Specifications

• Voltage: 240 volts
• Contact Configuration: Double-Pole Double-Throw (DPDT)

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: REL90342
