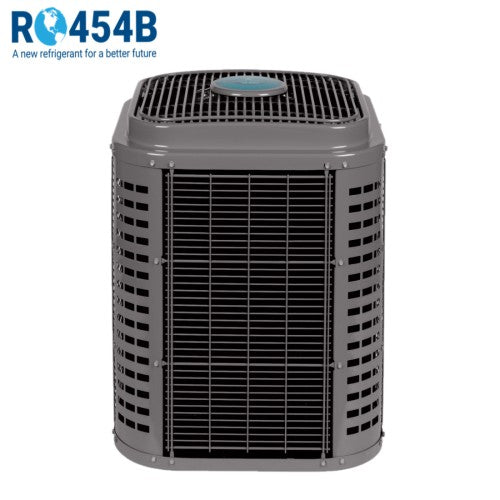

Icp H5A1V60AKAWA 5 Ton 21 SEER2 Variable Speed Ac

Product Description

The INTERNATIONAL COMFORT PRODUCTS H5A1V60AKAWA is a variable-speed residential split-system air conditioner rated at 5 tons and 21 SEER2. It operates on R-454B refrigerant, a lower-GWP alternative to R-410A now required under current EPA transition guidelines. The unit runs on single-phase 208/230-volt power and is engineered for high-efficiency cooling in residential applications. Variable-speed compressor technology allows the system to modulate capacity to match the actual load, reducing runtime energy consumption and improving indoor humidity control compared to single-stage equipment. Installation requires a licensed HVAC contractor familiar with A2L refrigerant handling procedures.

This unit is suited for residential central air conditioning installations where high seasonal efficiency and low-GWP refrigerant compliance are required. The 5-ton capacity targets larger single-family homes or light commercial spaces that fall within that cooling load range. As part of the Heil product lineup under International Comfort Products, the H5A1V60AKAWA is positioned as a deluxe variable-speed offering designed to pair with a compatible air handler or furnace coil in a split-system configuration.

Key Features

• 21 SEER2 efficiency rating for high-performance seasonal energy savings
• Variable-speed compressor modulates output to match actual cooling demand
• R-454B refrigerant compliant with current low-GWP transition requirements
• 5-ton cooling capacity for larger residential or light commercial loads
• Single-phase 208/230-volt operation compatible with standard residential electrical service

Compatibility

Designed as an OEM-specification variable-speed split-system condensing unit intended to pair with a compatible evaporator coil or air handler rated for R-454B refrigerant and matched to 5-ton, 21 SEER2 system requirements.

Installation Notes

Installation must be performed by a licensed HVAC technician certified for A2L refrigerant handling, as R-454B carries a mild flammability classification requiring specific safety protocols. Disconnect and lock out all electrical power before beginning any wiring or refrigerant connections. Follow local mechanical codes and manufacturer startup procedures for leak testing, evacuation, and refrigerant charging. Do not reuse existing line sets without verifying they are clean, properly sized, and compatible with R-454B service.

Technical Specifications

• Cooling Capacity: 5 Ton
• SEER2: 21
• Refrigerant: R-454B
• Voltage: 208/230 volts
• Phase: Single-Phase
• Compressor Type: Variable Speed
• Product Category: Air Conditioner

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: H5A1V60AKAWA
