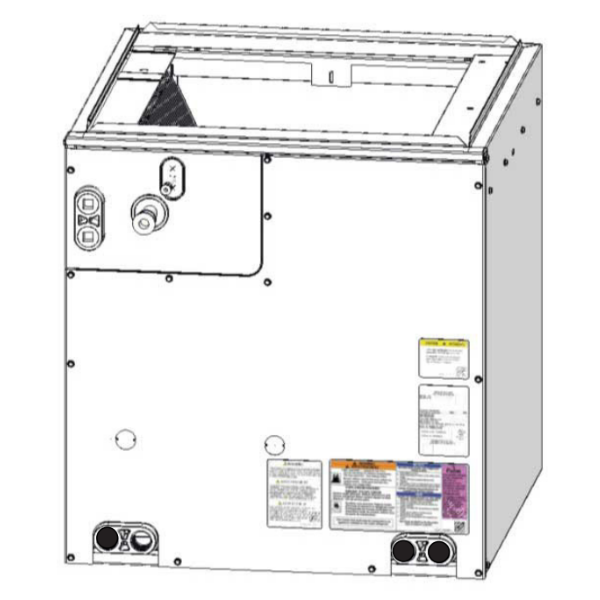

Icp EVMWX60M24A Cased V-coil Evaporator Coil 5 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS EVMWX60M24A is a cased V-coil evaporator coil designed for use with R-410A refrigerant systems. This multipoise unit delivers high-capacity heat exchange in residential and light commercial split-system cooling applications. The coil is factory-assembled in a cased cabinet, making field installation straightforward for licensed HVAC technicians. Rated at 5 tons (60,000 BTU/h nominal), it fits a 24-inch-wide air handler or furnace cabinet. Weighing 44.7 pounds, the coil is manageable for single-technician handling in most residential installations.

This evaporator coil is intended for upflow split-system air conditioning and heat pump installations using R-410A refrigerant. The cased design protects the coil assembly during shipping and installation and simplifies mounting inside the equipment cabinet. The V-coil configuration increases surface area within a compact footprint, supporting efficient latent and sensible heat removal at the 5-ton capacity range. It is suited for residential new construction and service replacement work performed by qualified HVAC technicians.

Key Features

• Cased V-coil design increases heat-transfer surface area within a standard cabinet footprint
• Compatible with R-410A refrigerant systems
• Multipoise configuration supports upflow installation orientations
• Nominal 5-ton (60,000 BTU/h) capacity for residential and light commercial applications
• Factory-cased cabinet simplifies handling and installation
• Dimensions of 24.5 x 26.3125 inches fit standard air handler cabinet openings

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for R-410A split-system air conditioning and heat pump systems requiring a 5-ton, 24-inch-wide cased V-coil assembly.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Disconnect and lock out all electrical power and recover system refrigerant before removing the existing coil or connecting refrigerant lines. Follow local mechanical codes and manufacturer torque and leak-check procedures for all refrigerant connections. Verify drain pan and condensate line alignment before returning the system to operation.

Technical Specifications

• Nominal Capacity: 5 Ton (60,000 BTU/h)
• Refrigerant Type: R-410A
• Coil Configuration: Cased V-Coil
• Dimensions (L x W x H): 24.5 x 26.3125 inches
• Weight: 44.7 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVMWX60M24A
