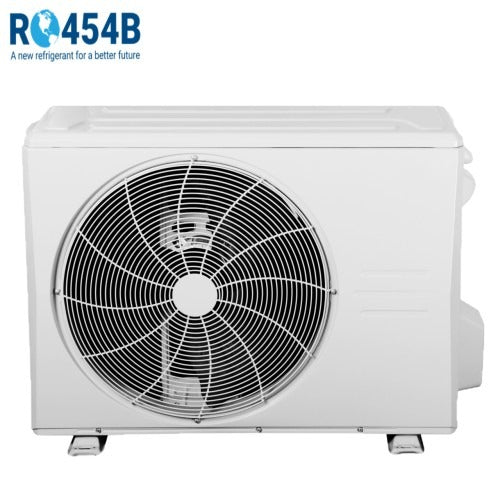

Icp d5cprah12aak Mini Split Condenser 12000 Btu/h 1 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS d5cprah12aak is a 12,000 BTU/h (1-ton) mini split condenser designed for use with R-454B refrigerant. It operates as a heat pump, providing both heating and cooling from a single outdoor unit. Rated at 208/230 volts, single-phase, this unit is engineered for residential and light-commercial ductless applications where reliable capacity at temperature extremes is required. The system maintains full heating capacity down to 0 degrees F and full cooling capacity down to -22 degrees F, making it suitable for climates with harsh winters or extreme summer conditions. Licensed HVAC technicians handle installation and commissioning.

This condenser is intended for ductless mini split installations in residential and light-commercial settings. It pairs with a compatible indoor air handler to form a complete split system. Its low-ambient performance makes it a strong fit for northern climates or applications where the outdoor unit is exposed to severe cold. The auto-restart function allows the unit to resume its last operating mode after a power interruption without manual input, which is useful in remote or unattended installations. Refrigerant leakage detection is built in, providing an added layer of safety for occupied spaces.

Key Features

• Full heating capacity maintained at 0 degrees F outdoor ambient
• Full cooling capacity maintained at -22 degrees F outdoor ambient
• Low noise operation, rated as low as 57 dB(A)
• Auto-restart function resumes operation after power interruption
• Built-in refrigerant leakage detection for R-454B systems
• Single-phase, 208/230-volt electrical connection

Compatibility

Designed as an OEM-style mini split condenser for use in ductless heat pump systems requiring R-454B refrigerant at 1-ton (12,000 BTU/h) capacity. Pair with a compatible indoor evaporator unit; confirm matched system compatibility before installation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician, as R-454B is a mildly flammable (A2L) refrigerant requiring adherence to applicable local codes and manufacturer handling guidelines. Disconnect and lock out all electrical power before servicing the unit. The outdoor condenser must be mounted on a level, stable surface with adequate clearance on all sides per the manufacturer installation instructions. Do not commission the refrigerant circuit until all line set connections have been leak-tested.
