Description

Product Description

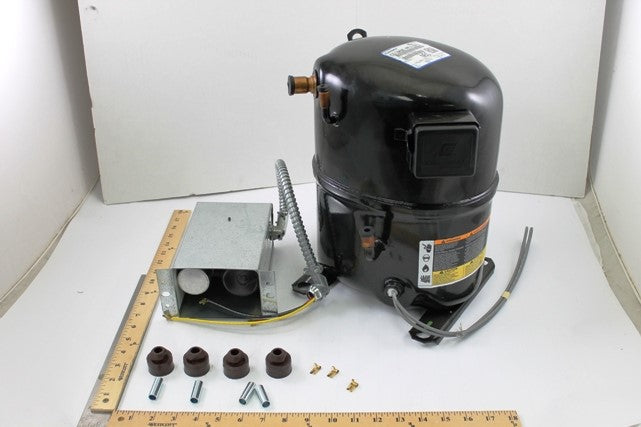

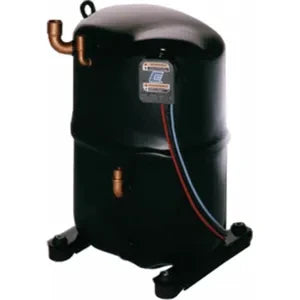

Copeland CS18K6E-PFV-945 is an aftermarket hermetic reciprocating compressor rated for 208-230 VAC, single-phase, 60 Hz operation. The compressor is compatible with R-404A and is also approved for use with R-22, R-507, and R-134a refrigerants, and accepts polyolester (POE) or mineral oil. It provides approximately 17,500 BTU output, internal inherent protection, a 45 oz initial oil charge, and mounting dimensions of 7.5 x 7.5 x 14.19 inches.

  • Hermetic reciprocating compressor, single-phase 208-230 VAC, 60 Hz
  • Compatible refrigerants: R-404A; approved for R-22, R-507, R-134a; POE or mineral oil
  • Electrical ratings: 8.4-13 amps (operating), RLA 13.9, LRA 82; internal inherent protection

Product Highlights

Aftermarket Copeland hermetic reciprocating compressor for refrigeration and HVAC, ~17,500 BTU, 208-230 VAC single-phase, multi-refrigerant and POE/mineral oil compatibility.

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: CS18K6E-PFV-945
  • Country of Origin: Mexico
Technical Specifications
Brand
Copeland
MPN
CS18K6E-PFV-945
Model/OPT Code
CS18K6EPFV945
Compressor Type
Reciprocating
Compressor Housing
Hermetic
Input Voltage
208-230 VAC
Phase
Single
Frequency
60 Hz
Refrigerant
R-404A (approved for R-22, R-507, R-134A)
Oil Type
Polyolester (POE) or Mineral (MO)
BTU Output
17,500
Operating Amps
8.4-13
Rated Load Amps (RLA)
13.9
Locked Rotor Amps (LRA)
82
Mounting Dimensions
7.5 x 7.5 x 14.19 in
Discharge Connection Type
Stub
Suction Line Size (OD)
5/8"
Suction Line Fitting Type
Sweat or braze
Oil Charge Initial
45 oz
Protection
Internal inherent protection (one protector); use with contactor
Package Dimensions (L x W x H)
15 in x 14.8 in x 18.7 in
Package Weight (lbs)
75.5
Weight
75.5 lb
Prop 65
Yes
UL Listed
No
Country of Origin
Mexico
