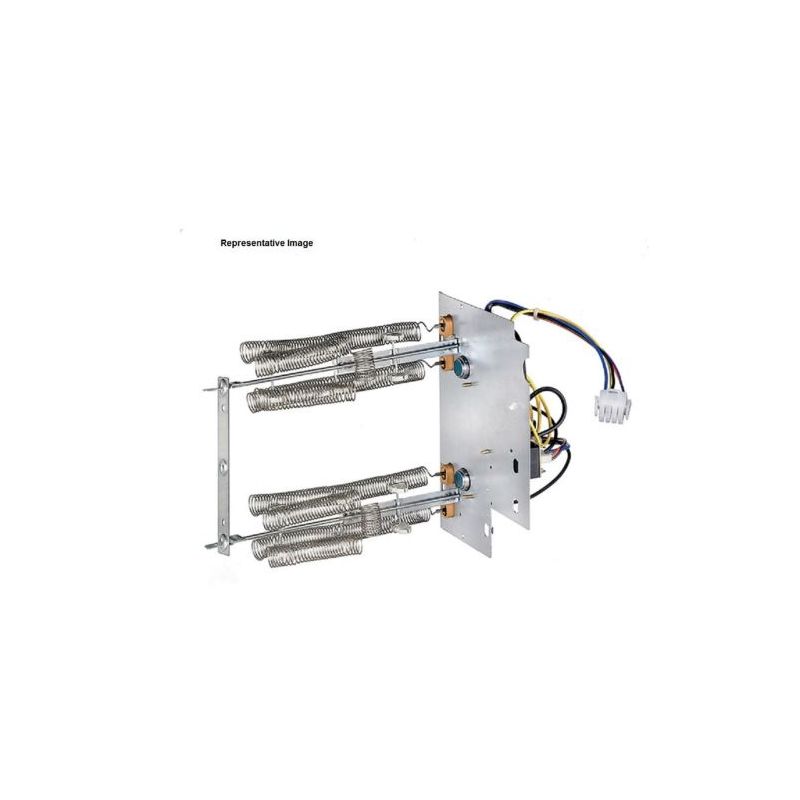

Icp CPHEATER126A03 Electric Heater Kit 5kw 230V

Product Description

The INTERNATIONAL COMFORT PRODUCTS CPHEATER126A03 is an accessory electric heater kit rated at 5 kilowatts, designed for use with compatible air handlers and fan coil systems operating on a 230-volt, single-phase, 60 Hz supply. The kit includes an integrated circuit breaker, which simplifies installation and meets typical electrical code requirements for supplemental heat applications. It is installed by licensed HVAC technicians as a field-installed accessory to add or increase electric heat capacity in residential or light commercial forced-air systems.

This heater kit is suited for residential and light commercial applications where supplemental or primary electric heat is required in an air handler configuration. It operates on a single-phase 230-volt circuit and is intended for systems where a factory-approved electric heat accessory is specified. The included breaker assembly reduces the need for additional external disconnect hardware in many installations.

Key Features

• 5 kW heating capacity for supplemental or primary electric heat
• 230-volt, single-phase, 60 Hz electrical rating
• Integrated circuit breaker included for code-compliant installation
• Field-installed accessory kit designed for air handler compatibility
• Manufactured under the ICP and Heil brand families

Compatibility

Designed as an OEM-style field-installed electric heater accessory for compatible residential and light commercial air handlers requiring a 5 kW, 230-volt single-phase heat kit with breaker. No specific model compatibility data was provided in the product listing.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler before beginning installation, in accordance with NEC requirements. Follow the air handler manufacturer installation instructions for proper slot placement and wiring termination of the heater kit. Do not energize the unit until the heater kit is fully seated and the panel is secured.

Technical Specifications

• Heating Capacity: 5 kW
• Voltage: 230 volts
• Phase: 1-phase
• Frequency: 60 Hz
• Breaker Included: Yes
• Product Type: Electric Heater Kit
• Category: HVAC Electric Heaters

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: CPHEATER126A03
