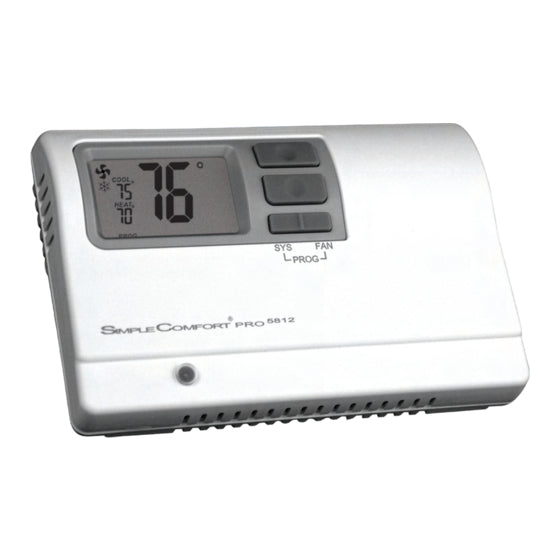

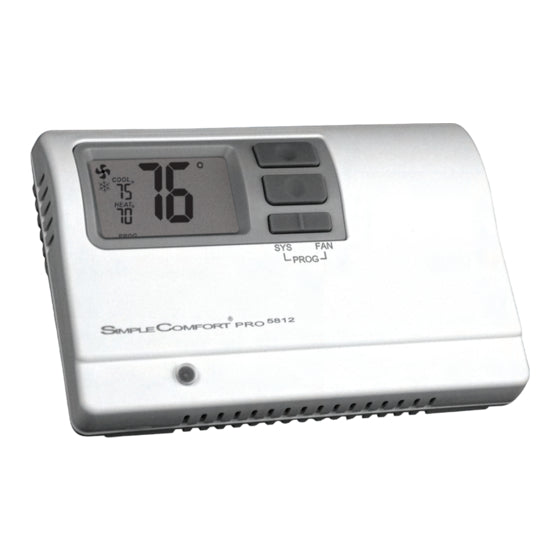

Icm Controls sc5812 programmable thermostat 24vac 5-2 programs, 3 h 2 c

Product Description

The ICM Controls SC5812 is a hardwired programmable thermostat operating on 24VAC, designed for precise temperature regulation in HVAC systems. This unit supports 3 heat and 2 cool stages, making it suitable for heat pump and dual fuel applications. It offers flexible programming options including 7-day, 5-2 day, and 5-1-1 day schedules, with a control range of 45°F to 90°F. Key features include a 4-minute anti-short cycle time, a large backlit display, and patented Thermal Intrusion Barrier technology.

• 24VAC hardwired operation with 3 heat and 2 cool stages.
• Supports 7-day, 5-2 day, and 5-1-1 day programmable schedules.
• Features a control range of 45°F to 90°F and dual transformer compatibility.

Product Highlights

Programmable thermostat with 3 heat/2 cool stages, 24VAC hardwired power, and advanced programming options for efficient climate control.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: SC5812
• Country of Origin: United States

Technical Specifications

• Type: Programmable Thermostat
• Input Voltage: 24VAC
• Heat Stages: 3
• Cool Stages: 2
• Power Method: Hardwired
• Control Range: 45°F to 90°F
• Programmability: 7-Day, 5-2 Day, 5-1-1 Day

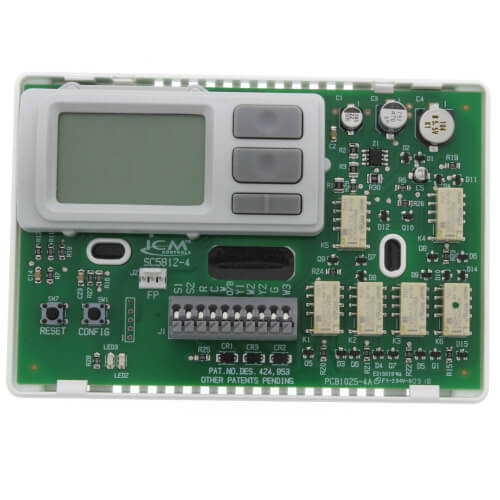

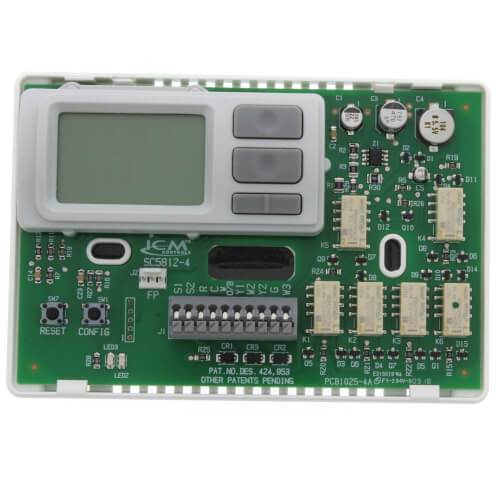

• Terminal Designations: R, C, W1/O/B, Y1, W2, Y2, G, W3, S1, S2
• Dual Transformer Compatible: Yes
• Amperage: 3A
• Application: Heat Pump
• User Interface: Push Button
• Mounting Type: Horizontal
• Anti-Short Cycle Time: 4 minutes
• Accuracy: +/- 1°F (+/- 0.5°C)
• System Compatibility: Heat pump, Dual fuel
• Thermal Intrusion Barrier: Patented
• SimpleSet Target Programming: Patent-pending
