ICM CONTROLS R1-R127 Foster Refrigeration Case Motor

Product Description

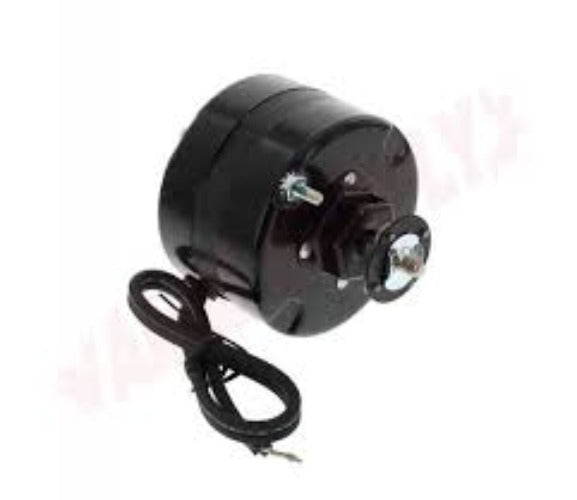

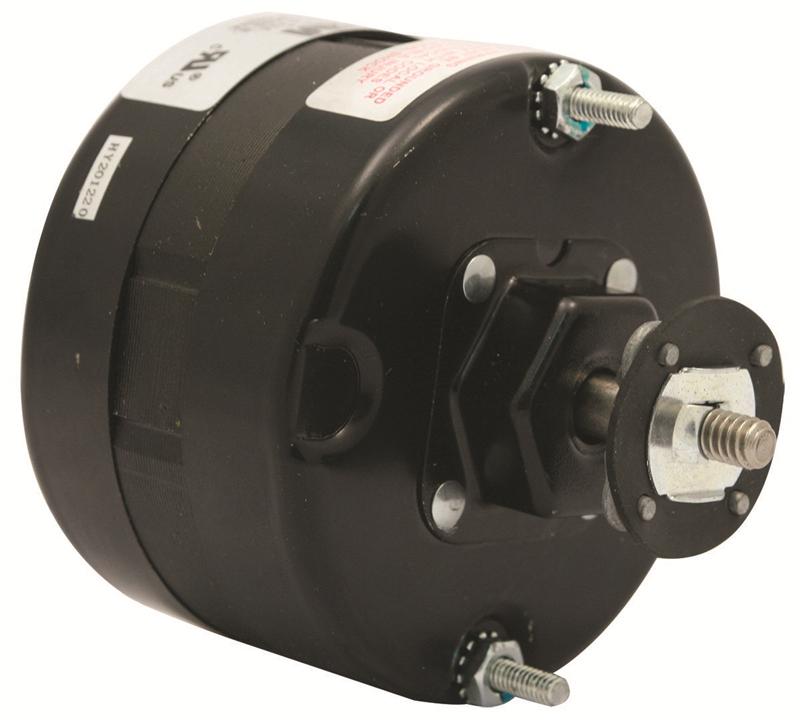

The ICM CONTROLS R1-R127 is a refrigeration case motor meant for Foster refrigeration units and others with matching needs. It operates on one hundred fifteen volts and is identified as a shaded pole motor. This model is ideal for use in evaporator coils, coolers, refrigeration cases, and additional cooling applications.

• Designed for refrigeration evaporator coils and coolers
• Compatible with Foster units and other units with similar specifications
• Features counter-clockwise (CCW) rotation from the shaft end

Product Highlights

This motor has a horsepower rating of one-eighth and operates at sixteen hundred RPM. Its body diameter is three point three inches, making it a compact option for various refrigeration setups.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Country of Origin: Not specified

Technical Specifications

• Horsepower: 1/80 HP
• RPM: 1600
• Voltage: 115V
• Amps: 0.75
• Motor Diameter: 3.3 inches
• Rotation: CCW Shaft End
• Enclosure Type: TE (Totally Enclosed)
• Mounting: Stud
