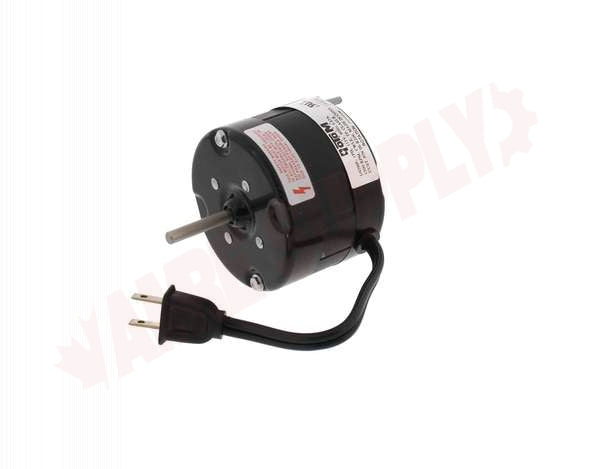

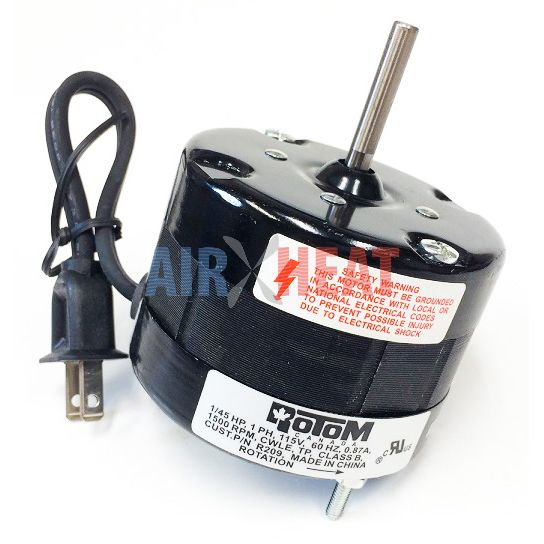

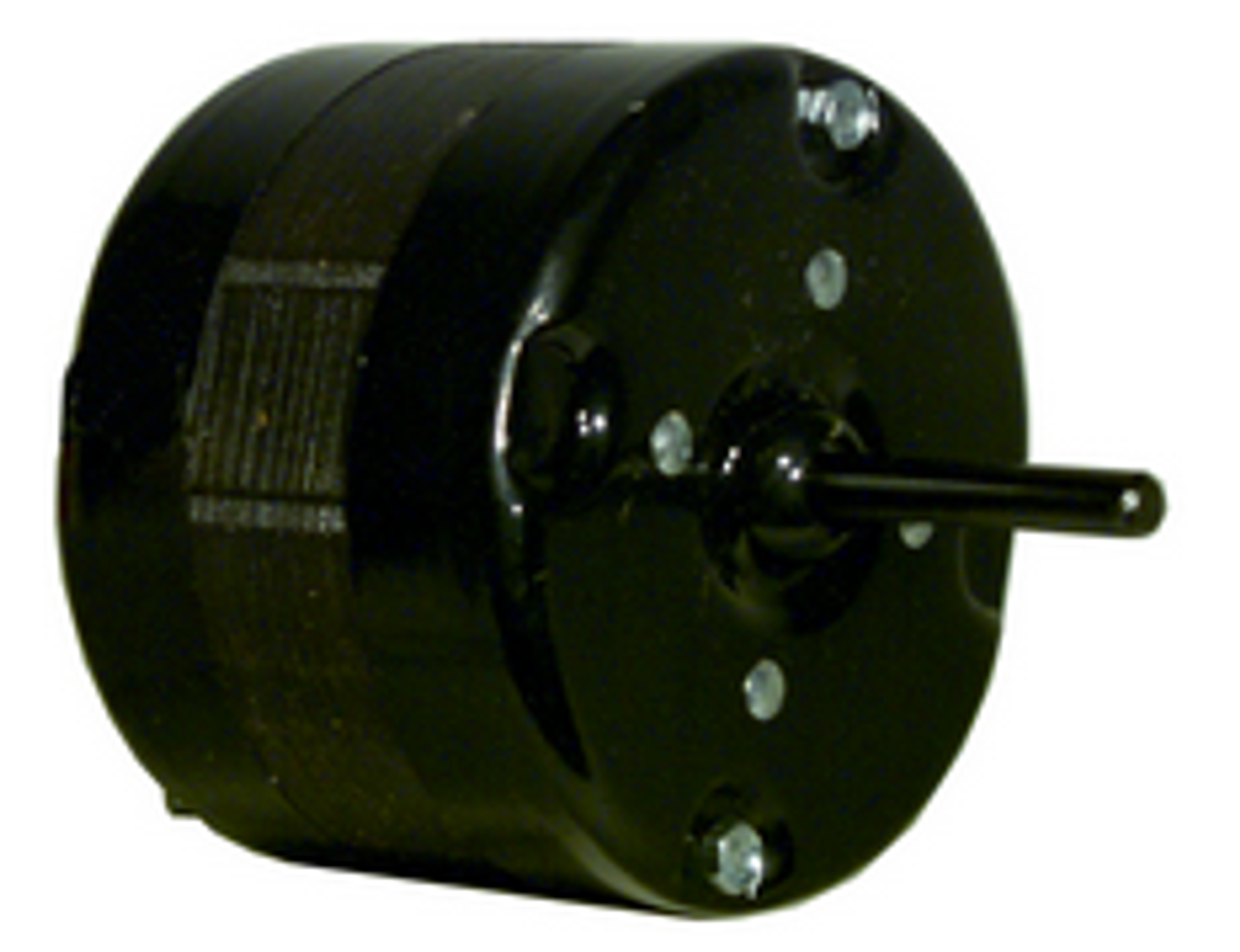

ICM CONTROLS O6-R209 ROTOM Motor 1/45HP

Product Description

The ICM CONTROLS O6-R209 is a ROTOM motor designed for exhaust fan applications. It operates at 115 volts with a power of one-forty-fifth horsepower and an amperage of zero point eighty-seven. The motor features single-speed operation at fifteen hundred RPM and ensures clockwise rotation. The totally enclosed design protects against environmental factors, making it suitable for various ventilation systems.

• Operates at 115 volts with 0.87 amps
• Clockwise rotation at 1500 RPM
• Replaces motors in Nutone, Emerson, and Miami Carey exhaust fans

Product Highlights

This motor ensures reliable performance and is ideal for exhaust fan replacements.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Country of Origin: TW

Technical Specifications

• HP/Watt: 1/45
• RPM: 1500
• Voltage: 115
• Amps: 0.87
• Speed: One
• Rotation: CW
• Part Type: SP
• Enclosure: TE
• Body Size: 2.38 inches
• Frame Size: 3.3 inches
• Shaft Size: 1.5x5/16 inches
• Bearing Type: Sleeve
• Mounting: S.S.
