Icm Controls ICM330C Single-Phase Head Pressure Control 120-480 VAC (DIN Rail Mount) P66

ICM CONTROLS
Brand: ICM CONTROLS
SKU: ICM330C
Availability: In Stock

Ships same day if ordered by 12 pm
$169.75
$169.75
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

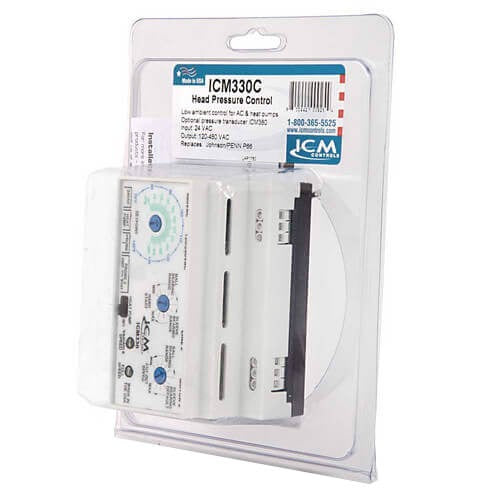

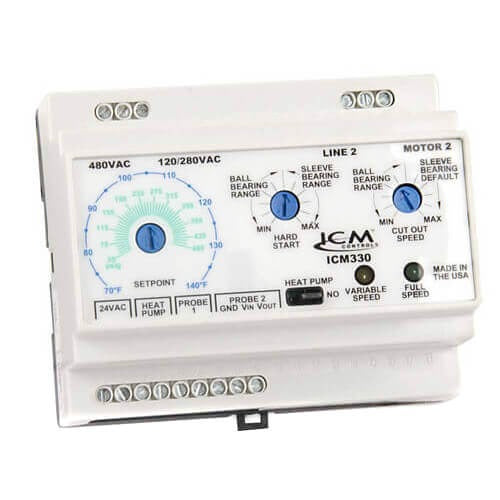

Icm Controls ICM330C is a single-phase head pressure control that maintains correct condensing temperature and pressure by modulating condenser fan speed. It operates across a 120–480 VAC supply and supports selectable temperature or pressure sensing, adjustable minimum fan speed and adjustable hard start time (0.1–5 seconds). The unit mounts to DIN rail and is compatible with heat pump and non-heat pump systems; optional ICM380 pressure transducer is available.

  • Selectable temperature or pressure sensing with 35–465 psi and 70–100°F set point ranges
  • Adjustable minimum fan speed and adjustable hard start time (0.1–5 seconds)
  • Wide input voltage range 120–480 VAC, control voltage 18–30 VAC, DIN rail mount

Product Highlights

Modulates condenser fan speed to maintain stable head pressure; selectable sensing; DIN rail mount.

Product Information

Standard Information

  • Brand: ICM CONTROLS
  • Manufacturer Part Number: ICM330C
  • Country of Origin: United States
Technical Specifications
Brand
Icm Controls
Model
ICM330
MPN
ICM330C
Product Type
Single-phase head pressure control
Application
Air conditioners; Heat pump
Input Voltage
120-480 VAC
Control Voltage
18-30 VAC
Frequency
50-60 Hz
Operating Temperature
-40°C to +75°C
Maximum Current
4 A
Sensor Type/Resistance
10K ohms at 25°C (thermistor input)
Temperature Set Point Range
70 to 100°F
Pressure Set Point Range
35-465 psi
Termination Type
Cable

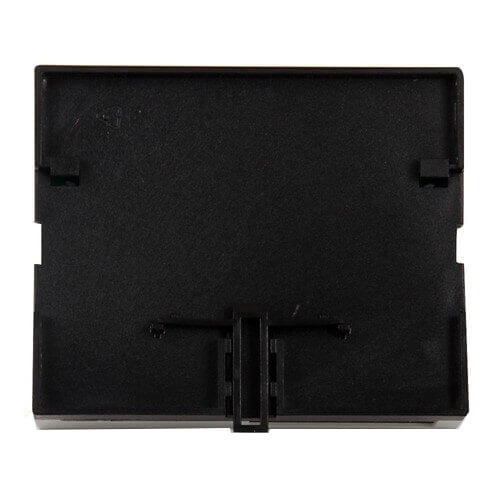

Mounting Type
DIN rail mount
Adjustable Hard Start Time
0.1-5 seconds
Compatible Systems
Heat pump and non-heat pump systems
Optional Accessories
ICM380 pressure transducer
Country of Origin
United States
Replacement For
P66 pressure control
