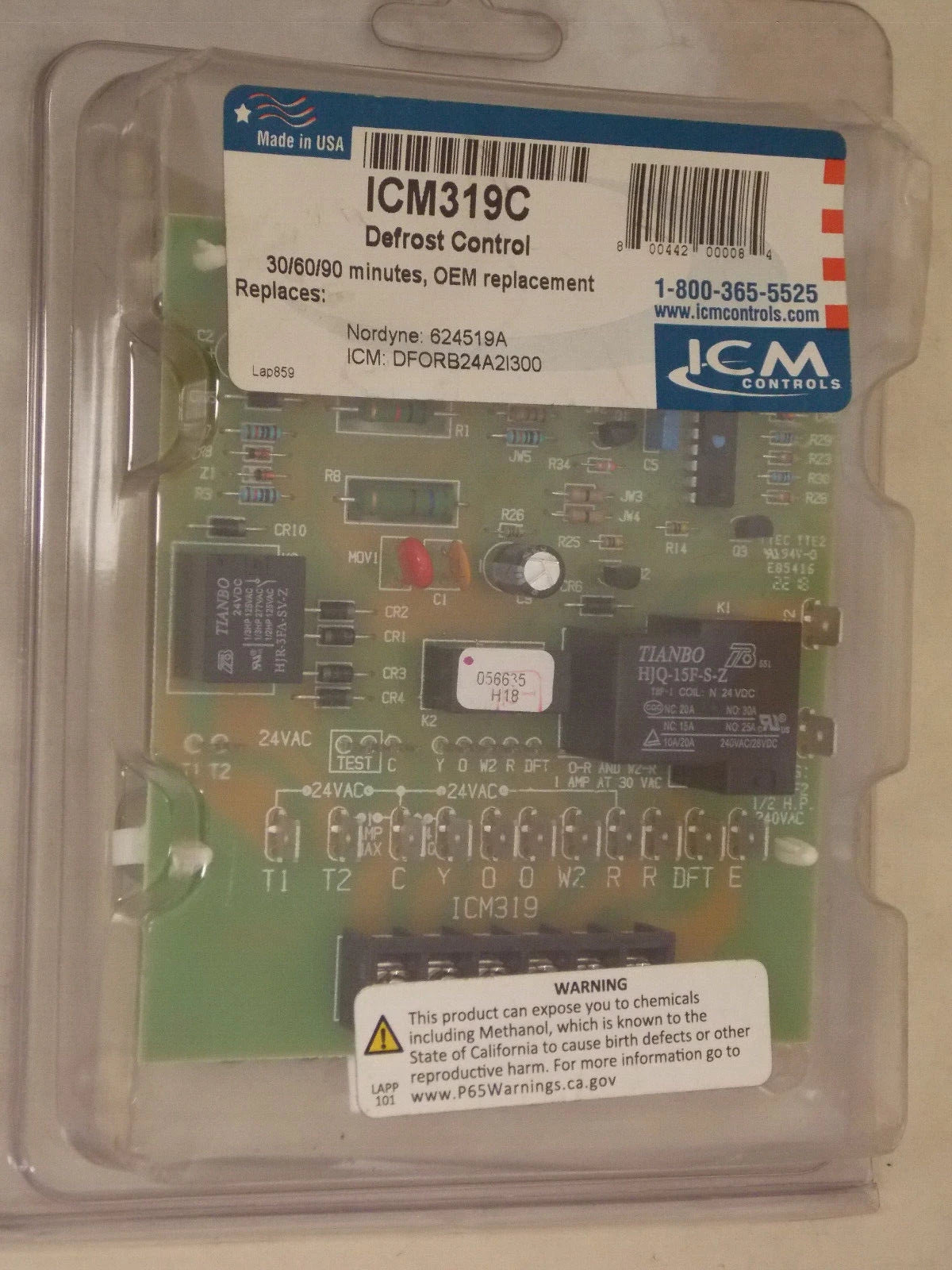

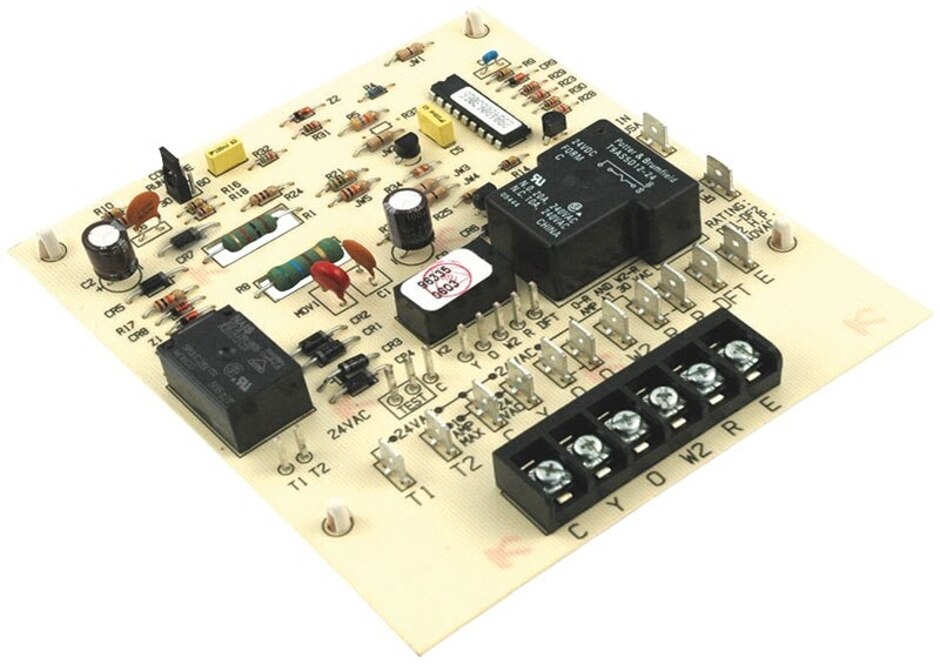

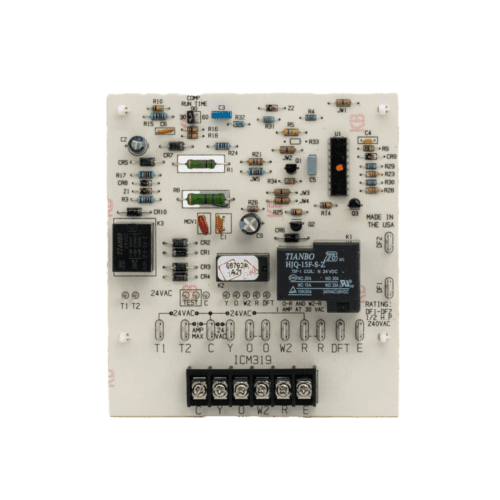

ICM CONTROLS ICM319C Defrost Control Board

Product Description

The ICM CONTROLS ICM319C is a defrost control board suitable for time and temperature defrost and termination. It operates on a voltage range of eighteen to thirty VAC. This board is compatible with NORDYNE systems and replaces the Nordyne 624519A model. It supports defrost intervals of thirty, sixty, or eighty minutes, along with a fixed defrost time of ten minutes. The device can work with frequencies of fifty and sixty Hertz. It features a HOLD input to track compressor run time and a recycle function to help with melting coil frost. It provides built-in short cycle protection and includes test pins to minimize testing time.

• Operates on eighteen to thirty VAC with thirty, sixty, and eighty minute defrost intervals.
• Features time and temperature-based defrost and termination.
• Includes a HOLD input for tracking compressor run time and short cycle protection.

Product Highlights

The board is essential for effective defrosting in HVAC systems, ensuring efficient operation and protection of components.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Model: ICM319C

Technical Specifications

• Contact Rating - Motor (HP): 1/2
• Contact Rating - Motor (V): 230
• Contact Rating - Strip Heat/Reversing Valve (A): 1
• Contact Rating - Strip Heat/Reversing Valve (V): 24
• Defrost Interval (minutes): 30, 60, 80
• Defrost Time (minutes): 10
• Frequency (Hz): 50, 60
• Voltage (VAC): 18-30
