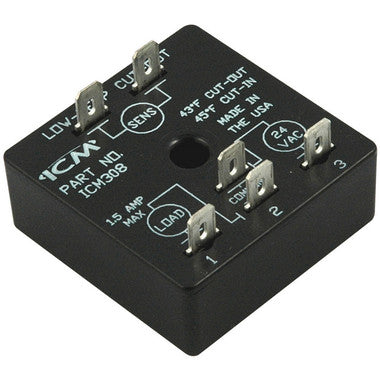

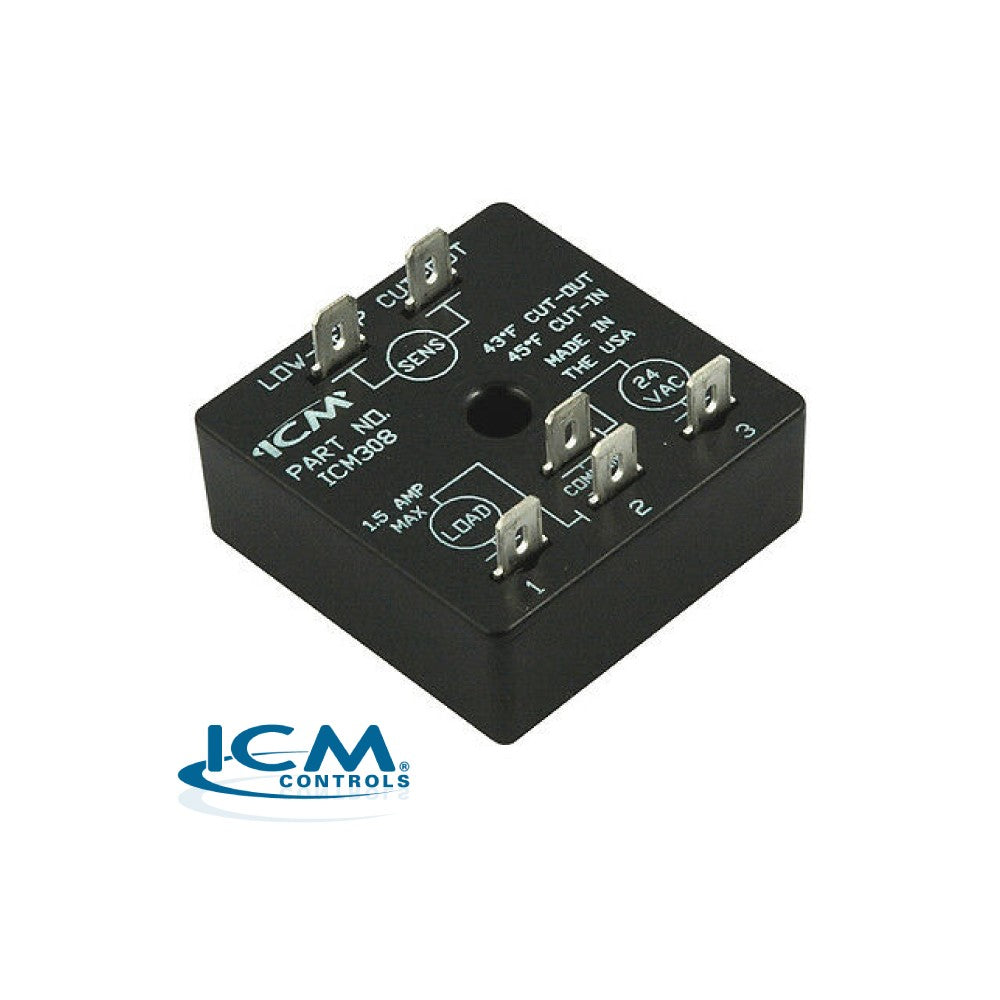

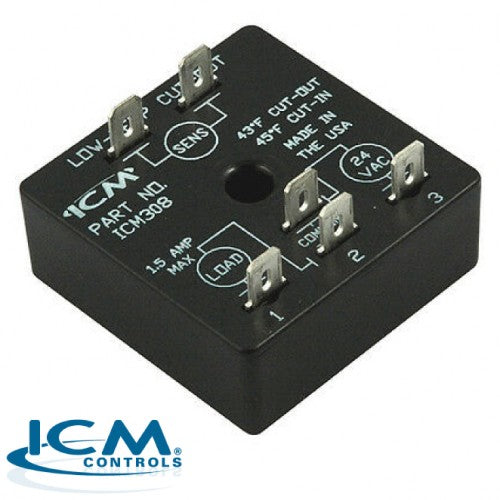

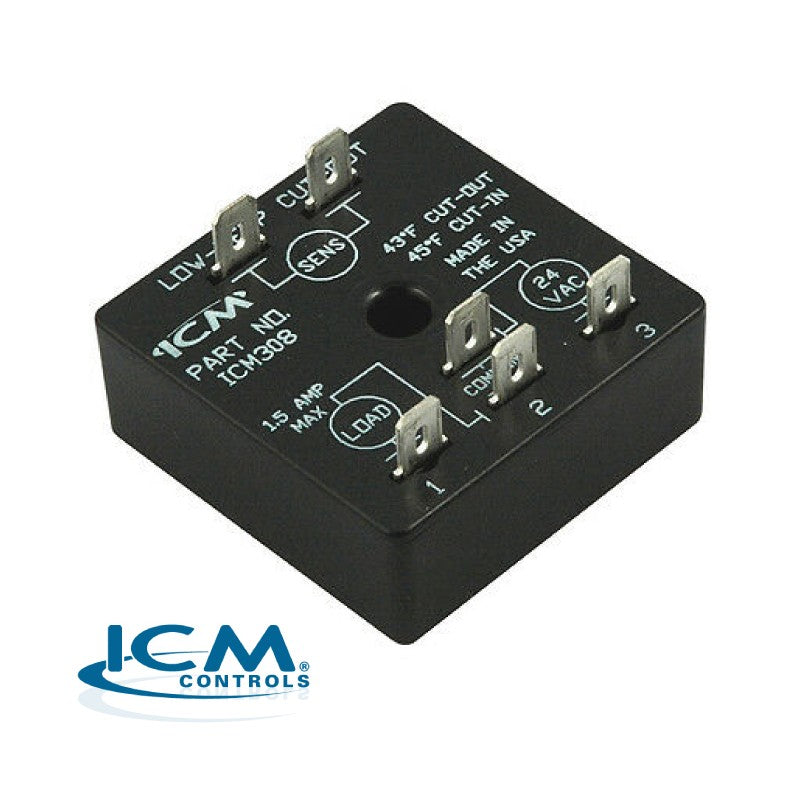

ICM CONTROLS ICM308 Freeze Protection Module

Product Description

The ICM CONTROLS ICM308 is a freeze protection module that provides effective single setpoint temperature control. Designed for durability, this module features an epoxy-encapsulated packing, ensuring moisture resistance. It operates within an input voltage range of eighteen to thirty VAC and a frequency of fifty to sixty Hertz. The solid state output delivers a current of 1.5 amps at thirty VAC. The unit has a cut-out temperature of 43 degrees Fahrenheit and a cut-in temperature of 45 degrees Fahrenheit.

• Offers freeze protection with fixed single setpoint temperature control.
• Features epoxy encapsulation for moisture protection.
• Includes a temperature sensor for accurate monitoring.

Product Highlights

Reliable freeze protection suited for HVAC applications.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: ICM308

Technical Specifications

• Input Voltage: 18 to 30 VAC
• Input Frequency: 50 to 60 Hz
• Output: Solid state (triac)
• Output Current: 1.5 amps at 30 VAC
• Temperature Cut-Out (OFF): 43 degrees Fahrenheit
• Temperature Cut-In (ON): 45 degrees Fahrenheit
