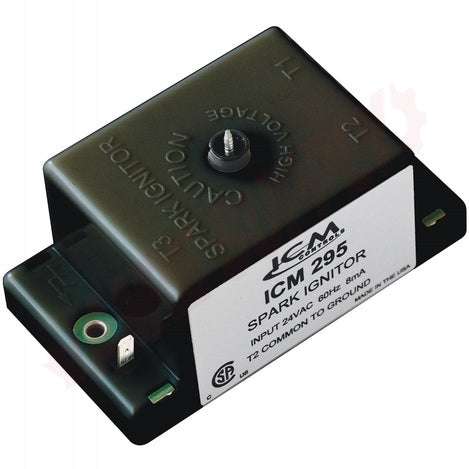

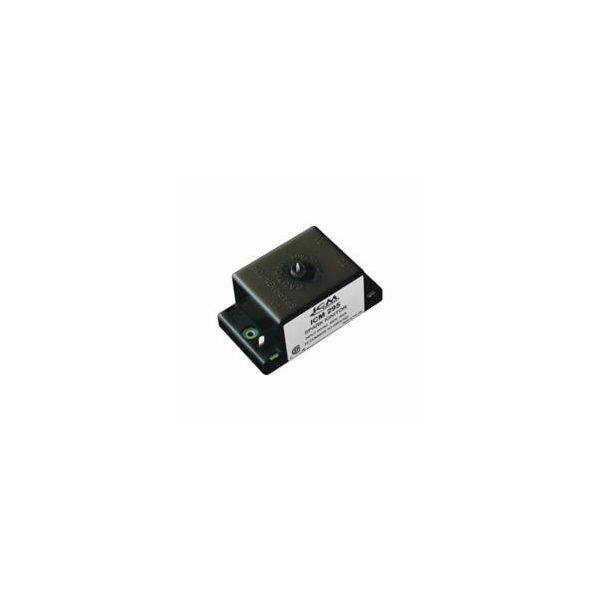

ICM CONTROLS ICM295 IPI Gas Ignition Control Module

Product Description

The ICM CONTROLS ICM295 is a spark ignition control module for intermittent pilot boilers, furnaces, and heating appliances. It uses a microprocessor for precise control and provides continuous spark until the pilot flame is established. This module works with natural gas and LP gas systems. It operates on a line voltage of twenty-four volts (eighteen to thirty VAC) at fifty to sixty Hertz.

• Microprocessor-based spark ignition control.
• Compatible with natural and LP gas systems.
• Continuous retry feature.

Product Highlights

The ICM295 simplifies installation with push-on, high tension quick connect terminals.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Product Name: ICM CONTROLS ICM295 IPI Gas Ignition Control Module

Technical Specifications

• Control Voltage: Line 24V (18-30 VAC), 50/60Hz
• Spark Frequency: 15Hz for 90 seconds, 10Hz thereafter
• Prepurge: 0 or 10 seconds (system dependent)
• Retry: Continuous
• Weight: 0.45 pounds
• Height: 2 inches
• Width: 5.375 inches
• Length: 4 inches
• Voltage Rating: 24 VDC
• Domestic/Import: Domestic
