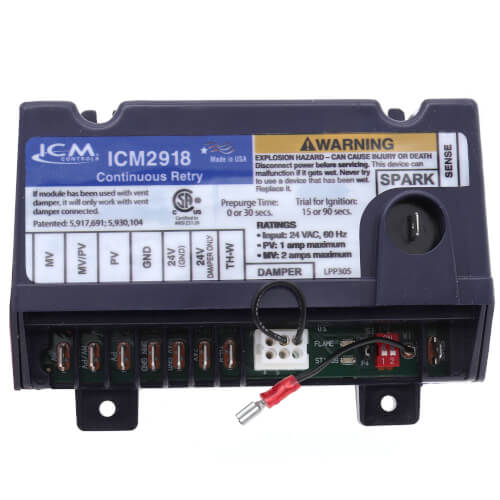

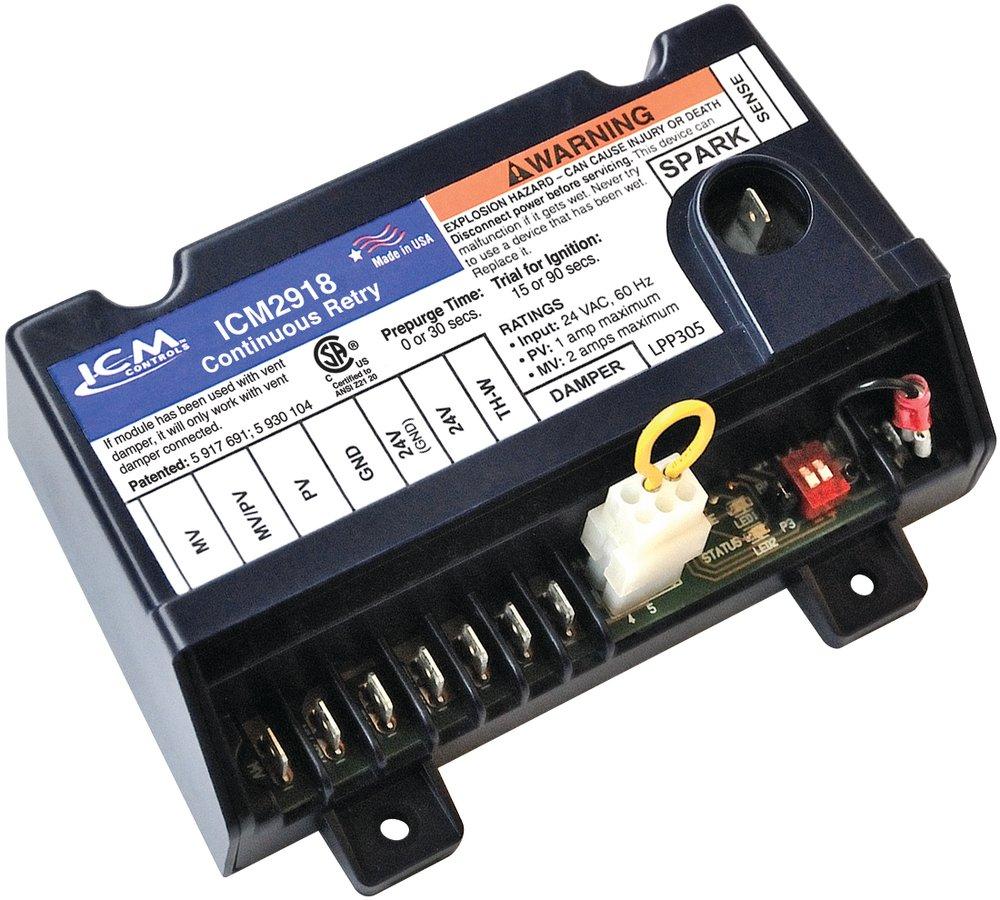

ICM Controls ICM2918 Universal Intermittent Pilot Ignition Control Board

Product Description

The ICM2918 from ICM Controls is a universal intermittent pilot ignition control board designed for gas-fired appliances. This control board provides critical ignition sequences, flame monitoring, and safety shutoff features for single and dual rod intermittent pilot systems.

• Compatible with natural gas and LP gas systems
• Includes switch selectable pre-purge and ignition trials
• Works with or without a vent damper connected

Product Highlights

This ignition control is essential for the safe and efficient operation of gas-fired furnaces, boilers, and other heating devices. Its compact design allows for easy installation even in tight spaces.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM2918

Technical Specifications

• Item Number: ICM2918
• Control Voltage: 18-30 VAC
• Operating Temperature Range: -40°F to 165°F
• Shipping Weight: 0.64 lbs
• Shipping Dimensions: 6.15 x 5.45 x 2.2 inches
• Relative Humidity: 5% to 95% R.H. (non-condensing)
• Trial for Ignition: 15 or 90 seconds (switch selectable)
