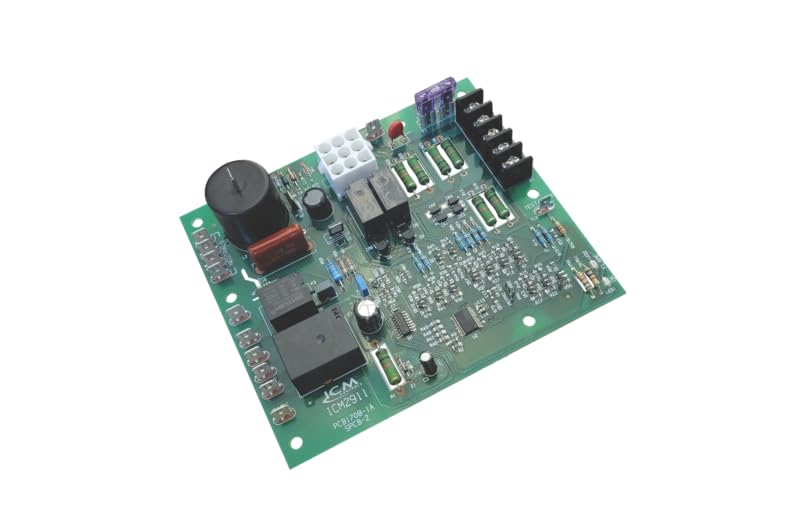

ICM Controls ICM2911 Direct Spark Ignition Control Board

Product Description

The ICM Controls ICM2911 is a direct spark ignition control board designed as a cost-effective, fully compatible replacement for the Modine 5H79749 model. This board is essential for managing various furnace operations including system timing, ignition trials, and safety lockouts.

• Microprocessor-based technology for precise control
• Supports both LP and natural gas systems
• Features LED diagnostics for easy troubleshooting

Product Highlights

This control board enhances furnace reliability by continuously monitoring system parameters and adjusting controls as needed. It includes a 100% lockout safety feature which prevents the system from overheating by monitoring fault conditions. Detailed fault code diagnostics are provided to simplify system maintenance.

Product Information

Standard Information

• Brand: ICM Controls
• Model: ICM2911

Technical Specifications

• Function: Direct Spark Ignition Control
• Input Voltage: 120 VAC
• Control Voltage: 18 – 30 VAC
• Frequency: 50/60 Hz
• Ignition Output: 12kV O.C.V., 60 Hz
• Heat Blower Capacity: 15 FLA/30 LRA @ 277 VAC
• Inducer Fan Rating: 1/2 HP, 9.8FLA/58.8LRA @ 120 VAC
• Gas Valve Control: 2.3A Pilot Duty @ 240 VAC
